Product Details:
Payment & Shipping Terms:
|
| Identify Code: | A14-16 | Weighing Range: | 10-1000g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 60P/M |
| Hopper Volume: | 1.6L | Control Panel: | 7”Touch Screen |
| Options: | Timing Hopper/Printer/Reject Device | Packing Dimension(mm): | 1750(L)x1160(W)x1420(H) |
| Gross Weight: | 490kg | Driving System: | Step Motor |
| Application: | Stick Food | ||
| High Light: | Multihead Anchovy Fish Weigher,Automatic Anchovy Fish Weigher,Anti Sticking 14 Head Multihead Weigher |
||

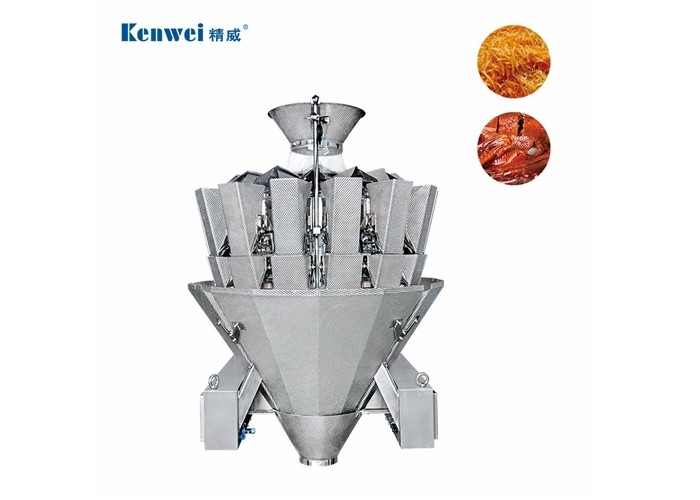

The 14-head anchovy fish weigher is specially designed for materials with high viscosity, more oil content, and materials that are easy to stick after the hopper is still, such as spicy small fish, and sauce plate duck, and other casual small foods.Kenwei is counted among the reliable manufacturers and suppliers of Multi-Head Packing Machine. The products we offer are developed by a team of professionals in tandem. The 14-head anchovy fish weigher uses a single-door special hopper. The anti-sticking design structure ensures the smooth flow of materials and prevents the sticky hopper from guaranteeing the accuracy of weighing.
Technical specification
| Model | JW-A10 | JW-A14 |
| Identify Code | A10-16 | A14-16 |
| Weighing Range | 10~1000g | 10~1000g |
| Accuracy | X(0.5) | X(0.5) |
| Max Speed | 40P/M | 60P/M |
| Hopper Volume | 1.6L | |
| Control Panel | 7” Touch Screen | |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device | |
| Driving System | Step Motor | |
| Power Requirement | 110/220V/1000W/50/60Hz/8A | 110/220V/1500W/50/60Hz/10A |
| Packing Dimension(mm) | 1620(L)x1100(W)x1420(H) | 1750(L)x1160(W)x1420(H) |
| Gross Weight | 380kg | 490kg |
Features
1. Special load cell with high precision and high standard.
2. Program recovery function can reduce operation failures, and support multi-segment weight calibration.
3. No product auto-pause function can improve weighing stability.
4. Many languages are available for global markets.
5. 100 program capacity can meet various weighing requirements and a user-friendly help menu contributes to easy operation.
Mechanical character
1. Enhanced electromagnetic induction vibrator speeds up material feeding.
2. Inclined special linear vibration pan to ensure smooth flowing of materials.
3. Discharged chute with a small angle is better for the falling of materials, and effective control of sticking problems.
4. Special single-door open hopper, anti-adhesive design structure to ensure smooth flowing of materials, prevent sticking and ensure weighing accuracy.
5. Weighing detection is optional, make accurate control of feeding time and thickness of the material, ensure weighing accuracy.
6. Weighers satisfy the dosing, weighing, and packing requirements for nearly any product type.
Application
It is suitable for materials with high viscosity and with much oil, it is easy to stick on the hopper, and material that can slide in the 60-angle discharged chute, such as spicy fish, sauce duck, etc.
FAQ
Q1: How to know which one packing machine is suitable for us?
You can first tell business representatives which equipment you want to know, what material is the product, how many grams to weigh, and the range of accuracy and speed requirements. Our engineers then recommend suitable packaging machines based on these data and product characteristics.
Q2: How to operate it?
Many languages are available for global markets. There are not only detailed instructions but also machine videos for reference learning.
Q3: Why we should choose your company?
We have many years of industrial production and management experience, professional R & D, sales, after-sales team. It can perfectly solve all the problems that customers encounter from purchase to sale.
Q4: How to cooperate with you?
You only need to contact our business representative, and they will be patient to guide you through the whole process.
Q5: What's your payment way?
T/T by our bank account directly.
Q6: How about the delivery and after-sales service?
All our machines are tailor-made because different clients have different requirements, delivery will be within 20 days for the small multi-head weigher, For the large-scale machine, it takes longer. Warranty:2years(Electric accessories) and free lifetime maintenance.
If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem
