Product Details:
Payment & Shipping Terms:
|
| Identify Code: | A10-1-6 | Weighing Range: | 10-1000g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 30P/M |
| Hopper Volume: | 2.5L | Control Panel: | 7”Touch Screen |
| Options: | Timing Hopper/Printer/Reject Device | Packing Dimension(mm): | 1620(L)x1100(W)x1420(H) |
| Gross Weight: | 380kg | Power Requirement: | 220V/1000W/ 50/60Hz/10A |
| Driving System: | Step Motor | ||
| High Light: | 60g Multihead Weighing Machine,pasta Multihead Weighing Machine,pasta combination weigher |
||

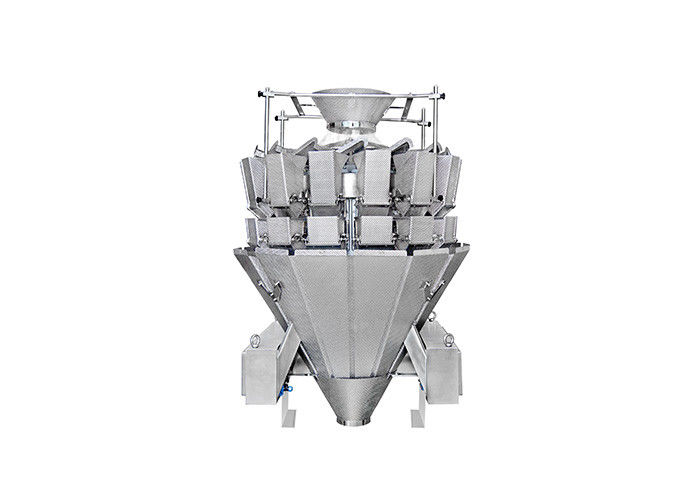

10 Head Weigher For Weighing Noodles, Pasta, Bean Sprout, Rice Noodle
The 10-head noodle multihead weigher is suitable for weighing soft and slender materials, such as noodles, bean sprouts, pasta, and another quantitative weighing. The maximum length of the weighed material can reach 300mm. At the same time, the IP65 waterproof chassis is used to reduce the damage to the components in the chassis. The parts that contact the materials use the pattern plate material to reduce the viscosity of the materials to the weigher.
Features
1.Special load cell with high precision and high standard.
2. The program recovery function can reduce operation failures and support multi-segment weight calibration.
3.No products auto pause function can improve weighing stability.
4. Linear amplitude can be adjusted independently.
5. Many languages are available for global markets.
6.100 program capacity can meet various weighing requirements and a user-friendly help menu contributes to easy operation.
Mechanical character
1.Suitable for products with a max 300mm length.

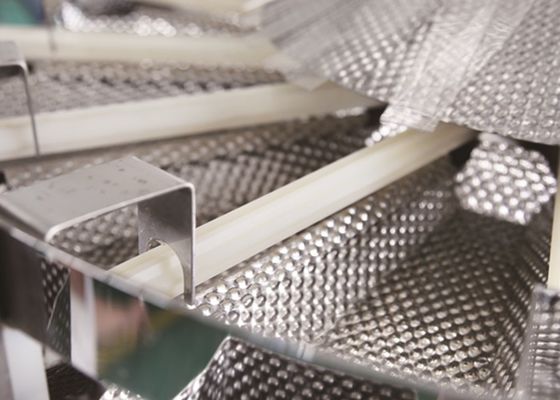

2.IP65 cabinet design, dimple plates for food contact parts.
3. The Air pressure system built-in cabinet prevents the electronic components from damage due to humidity.
4.60° steep discharge chute makes sure products discharge smoothly.

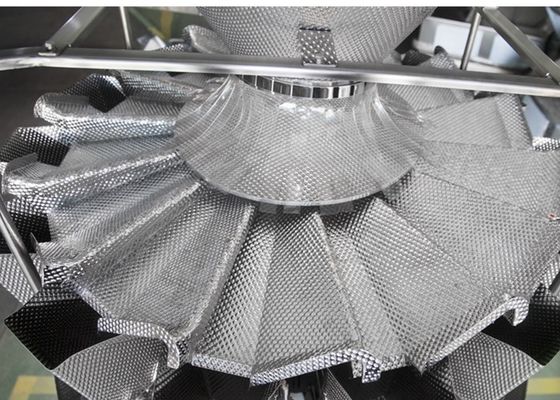

5.Adjustable Rotary top cone to make feeding averagely to each linear pan.
6. Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter.
Technical specification
| Model | JW-A10 | JW-A14 |
| Identify Code | A10-1-6 | A14-1-6 |
| Weighing Range | 10-1000g | 10-1500g |
| Accuracy | X(0.5) | X(0.5) |
| Max Speed | 30P/M | 60P/M |
| Hopper Volume | 2.5L | |
| Control Panel | 7” Touch Screen | |
| Options | Timing Hopper/Printer/Reject Device | |
| Driving System | Step Motor | |
| Power Requirement | 200V/1000W/50/60/Hz/10A | 220V/1500W/50/60Hz/12A |
| Packing Dimension(mm) | 1620(L)x1100(W)x1420(H) | 1750(L)x1160(W)x1420(H) |
| Gross Weight | 380kg | 490kg |
Application
It is suitable for weighing soft strip products such as noodles, rice noodles, bean sprout, etc.
Accuracy: Taking into consideration that the mode of the main vibrator and linear vibrator and vibration absorption ability of the framework that has the effect to weigher accuracy, Kenwei independent research and develop both standard and high amplitude vibrators to meet the needs of different materials. Also control the vibrating time and amplitude separately by control systems to automatically adjust the linear vibrator amplitude, which makes the material flow optimization; About the middle base of machine case, we always use 2.5mm-3.0mm stainless steel sheet and strengthen the internal structure by providing reinforcement to ensure the machine's rigidity. Some models take the machine case and middle base integrated, through a combination of AD converter module and anti-jamming technology, which effectively reduce the vibrating interference and ensure the accuracy of the machine running.
Individual needs: Kenwei develop a variety of weighers for different material, including counting weigher (pouch fill into a large bag), noodle weigher, weigher for frozen food, feeding-control weigher, weigher for stick-shaped products, cheese weigher, salad weigher, mixing weigher, etc. Above products can be selected for digital and modular, single or multi discharge chutes, "high precision" and "high speed" can be freely selected, etc., including a self-developed software system in order to better meet the individual needs of different clients.
