Product Details:
Payment & Shipping Terms:
|
| Identify Code: | A14-2-4 | Weighing Range: | 50-1000g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 30P/M |
| Hopper Volume: | 3L | Control Panel: | 10.1”Touch Screen |
| Options: | Timing Hopper/Printer/Reject Device | Packing Dimension(mm): | 1900(L)x1100(W)x900(H) |
| Gross Weight: | 490kg | Power Requirement: | 220V/800W/ 50/60Hz/3.6A |
| Driving System: | Step Motor | ||
| High Light: | 3.6A 14 Head Multihead Weigher,220g 14 Head Multihead Weigher,seafood multihead weigher |
||

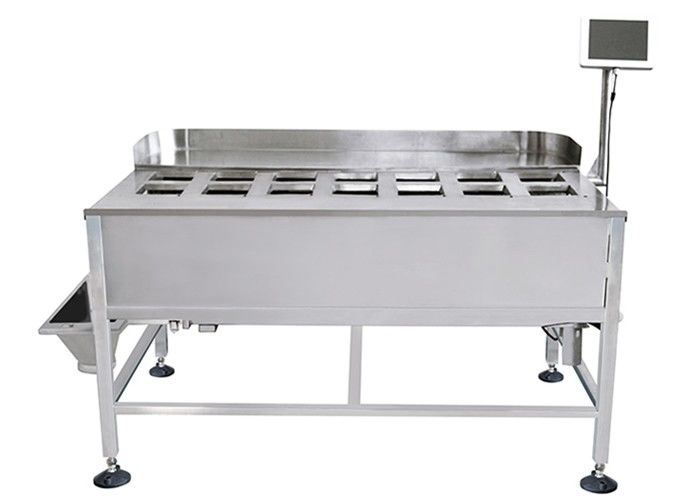

Manual Feeding Weigher For Weighing Seafood, Aquatic Products
The manual weigher is manually weighed and automatically weighed. It is suitable for materials with poor fluidity and materials that cannot be automatically unloaded, such as aquatic products, seafood, and meat foods. The weighing hopper of the manual scale is optimized for weight combination, and the optimal combination that meets the target weight is automatically discharged.
Features
1. Manual feeding, automatic weighing, it's suitable for poor flowability material.

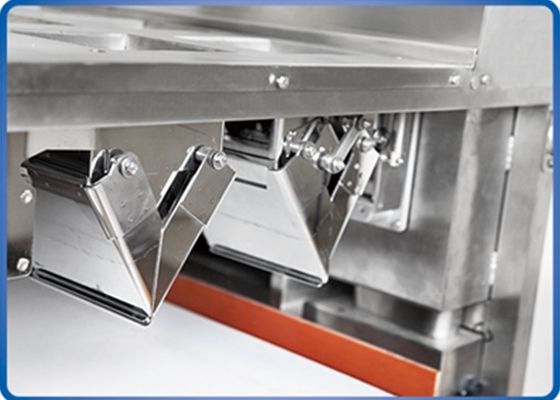

2. Optimal combination of weight hopper to meet the target weight optimal combination to automatic feeding.
3. Special load cell with high precision and high standard.
4. With intelligent multiple sampling stable mode, make weighing higher accurate.
5. Intelligent fault alarm, convenient maintenance.
6. High speed staggered discharging function, effectively prevent blocking materials.
7. With high integrated modular design and CAN bus technology.
8. Modbus industry-standard communication protocol, realize the interface combination of multihead weigher and packaging machine.
Mechanical character
1. The size of the working table is suitable for one-person operation, the layout is reasonable.

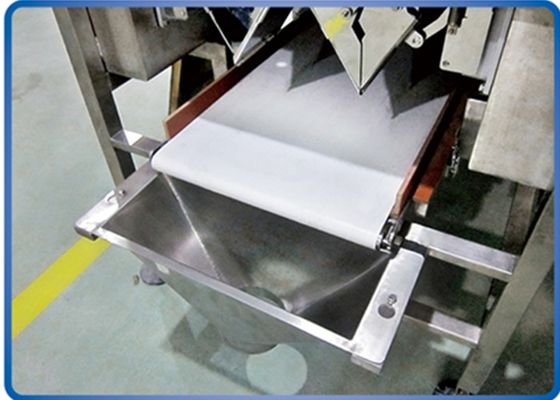

2. Feeding with a conveyor belt to avoid sticking material.
3. Easily detachable working tables and conveyor belts are easy to clean.

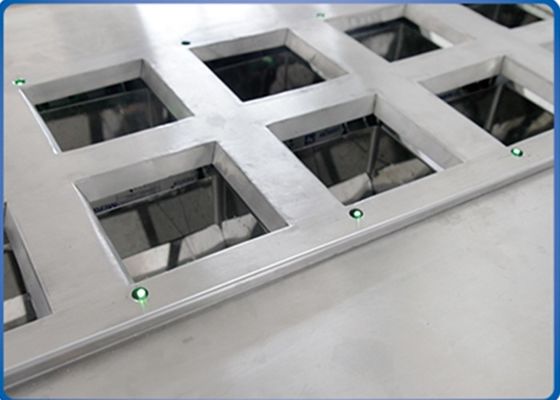

4. With the refraction lamp as the feeding signal, make feeding convenient and accurate.
Technical specification
| Model | JW-A12 | JW-A14 | |
| Identify Code | A12-2-4 | A14-2-4 | |
| Weighing Range | 50-1000g | 50-1000g | |
| Accuracy | X(0.5) | X(0.5) | |
| Max Speed | 30P/M | 30P/M | |
| Hopper Volume | 3L | ||
| Control Panel | 10.1” Touch Screen | ||
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device | ||
| Driving System | Step Motor | ||
| Power Requirement | 220V/800W/50/60Hz/3.6A | 220V/800W/50/60Hz/3.6A | |
| Packing Dimension(mm) | 1700(L)X1100(W)X900(H) | 1900(L)x1100(W)x900(H) | |
| Gross Weight | 220kg | 250kg | |
Application
It's suitable for weighing seafood, aquatic products, meat food, Chinese medicinal materials, and other poor flowability materials.
13 years of experience in product customization and practical industry application. Special program technical team with rapid response. Tailored products and solutions with high pertinence and applicability are delivered after the comprehensive planning and evaluation based on the customer’s actual production situation and usage.
Having a high quality and R&D lab in the industry, our quality department covers 16 inspection points such as incoming materials checking, routing inspection, QE, pre-aging, and post-aging inspection, finishing product inspection, and a complete quality management system with restricted control of upper and lower processes. Our products passed the environment simulation test, frequency, waterproof test, salt spray test, amplitude, and elastic stress-strain test, functional simulation test, 7*24 hours continuous aging test, and so on. The core components such as circuit boards and touch screens are all passed for nonstop aging test for more than 72 hours at 50℃ environment because we devote ourself to manufacturing craftsmanship products with high quality. The failure rate of our products is less than 0.5% within 1 year and less than 1% within 2 years.
