Product Details:
Payment & Shipping Terms:
|
| Identify Code: | SL8-1-1 | Number Of Vibrating Tracks: | 8 |
|---|---|---|---|
| Drug Specifications: | φ: 5-12mm L: 5-25mm | Bottle Diameter: | 20-100mm |
| Bottle Height: | 40-240mm | Max Speed: | 4000 Pcs/min |
| Bottle Filling Speed: | 10-60 Bottle/min | Power Requirement: | 220V/800W/50/60Hz/4A |
| Gross Weight: | 400kg | ||
| High Light: | φ10mm Weighing Packaging Machinery Accessories,60 bottle/min Weighing Packaging Machinery Accessories,SL8-1-1 electronic counting machine |
||
8-Track Electronic Counting Machine For Pharmaceutical Industry
The dual-channel 8-track electronic counting machine is fed with a secondary vibration plate, which can effectively control the fluidity and continuity of the materials and avoid the overlap of the materials. The dual-channel control unit can realize the optional switching and independence of dual outlets and single outlets. The control makes the flexibility stronger, which is suitable for the counting of materials such as capsules, tablets, granules, medicines or food confectionery, hardware, plastic parts, and so on.
Features
1. 7-inch full-color touch screen, adjustable integral particle speed.
2. Man-machine interface, convenient operation.
3. Tack type, double channel design can increase the counting speeds.
4. 100 sets of working parameter settings can be saved, no need to reset if the line change quickly.
5. Applicable to the demand of different shape products counting, easy to operate.
6. Counting parts rise or fall, can with stepless adjustment, adjustable range 50-250mm.
7. Dust protection cover to ensure hygiene for products.

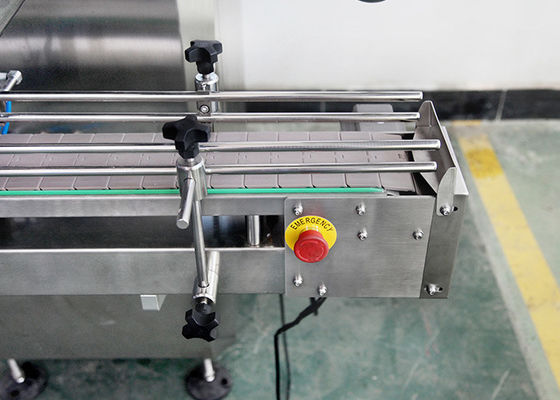

8. Equipped with conveyor equipment to achieve docking with front and rear equipment.
9. Infrared electronic grain, automatically obtain the sensitivity value and material characteristics, convenient to set parameters.
10. High-speed CAN bus control, easy to expand the number of grain channels.
Mechanical character
1. The second-stage vibrating pan feeding can effectively control the material fluidity and continuity, and avoid the stacking of materials.
2. Double-channel control unit, which can realize optional switching and independent control of dual-outlet and single-outlet, which has greater flexibility.
3. Infrared electronic counting head, real-time monitoring of material passing conditions, high-speed resolution, and rapid response.
4. The electric gate can realize the rapid interception of materials and ensure the accuracy of the counting.
5. One-button automatic up and down that can realize the automatic matching different height of bottles, more intelligent operation.
Technical specification
| Model | JW-SL8 |
| Identify Code | SL8-1-1 |
| Number Of Vibrating Tracks | 8 |
| Drug Specifications | φ: 5-12mm L: 5-25mm |
| Bottle Diameter | 20-100mm |
| Bottle Height | 40-240mm |
| Max Speed | 4000 pcs/min |
| Bottle Filling Speed | 10-60 bottle/min |
| Power Requirement | 220V/800W/50/60Hz/4A |
| Packing Dimension(mm) | 1350(L)x1400(W)x1790(H) |
| Gross Weight | 400kg |
Application
It is suitable for pharmaceuticals, food, hardware, chemicals, plastics, health products and other industries, to capsules, tablets,granules and other drugs or food candy, hardware, plastic pieces count.
Quality:
A. The quality department is equipped with an environmental simulation test, frequency test, and waterproof test, which mainly used to simulate the high and low-temperature environment, research, and coping machine working conditions under different voltage and frequency, do well for the 50/60Hz frequency and vibration / rotary top cone inspection.
B. Our quality department is Including material checking, inspection, QE, checking before and after the aging test and finished product inspection, etc. total 16 inspection positions and steps.
C. We pay high attention to material inspection and finished product inspection of these two organizational structures.
D.Key components such as circuit boards, screens must be in 72 hours nonstop aging test at 50 ℃ environments. Each machine before delivering must be in 7 days nonstop aging test.
