Product Details:
Payment & Shipping Terms:
|
| Identify Code: | A12-1-2 | Weighing Range: | 10-1500g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 100P/M |
| Hopper Volume: | 1.6L/2.5L | Control Panel: | 7”Touch Screen |
| Options: | Timing Hopper/Printer/Reject Device | Packing Dimension(mm): | 1700(L)x1100(W)x1130(H) |
| Gross Weight: | 450kg | Power Requirement: | 220V/1200W/ 50/60Hz/10A |
| Driving System: | Step Motor | ||
| High Light: | 20g multihead weigher packing machine,Cheese multihead weigher packing machine,Cheese Multihead Weighing Machine |
||

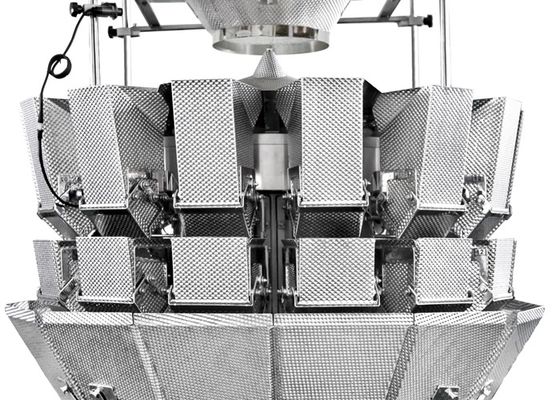

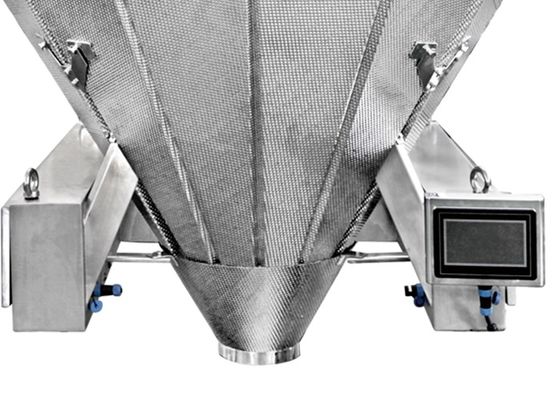

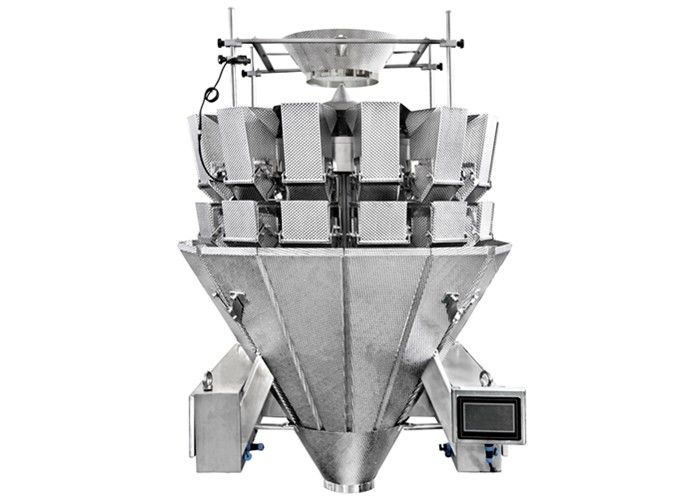

High Speed 12 Head Cheese Weigher For Weighing Soft And Sticky Material
The 12-head cheese weigher uses a down-tilt special line vibrating plate, which reduces the clogging of the feeding and ensures smooth feeding. The 12-head cheese weigher uses a 60-degree angle small pattern chute, which is beneficial to the falling of materials and effectively controls the phenomenon of sticking. Suitable for quantitative weighing of soft and sticky materials.
Features
Mechanical character

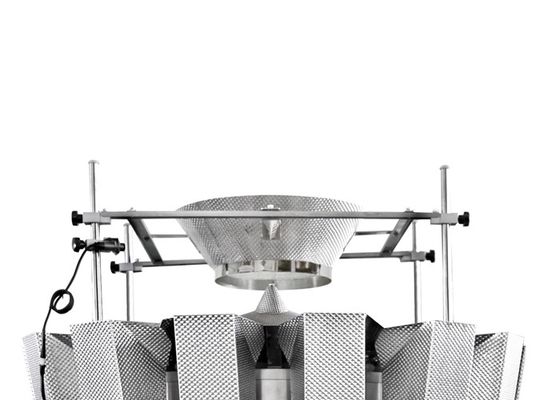

1. Speed adjustable rotary top cone is suitable for different product feeding.
2. The enhanced linear vibrator improves the flowability of material.
3. The declinational special linear vibrator pan, ensure smooth feeding.

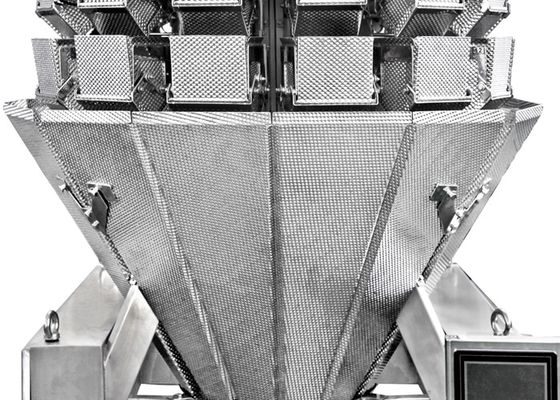

4. 60° dimple discharge chute contributes to less sticky problems.
5. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
6. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.
Technical specification
| Model | JW-A10 | JW-A12 | JW-A14 |
| Identify Code | A10-1-12 | A12-1-12 | A14-1-12 |
| Weighing Range | 10-1000g | 10-1500g | 10-1500g |
| Accuracy | X(0.5) | X(0.5) | X(0.5) |
| Max Speed | 60P/M | 100P/M | 100P/M |
| Hopper Volume | 1.6L/2.5L | ||
| Control Panel | 7”Touch Screen | ||
| Options | Timing Hopper/Printer/Reject Device | ||
| Driving System | Step Motor | ||
| Power Requirement | 220V/1000W/50/60Hz/10A | 220V/1200W/50/60Hz/10A | 220V/1500W/50/60Hz/10A |
| Packing Dimension(mm) | 1620(L)x1100(W)x1420(H) | 1700(L)x1100(W)x1130(H) | 1750(L)x1130(W)x1420(H) |
| Gross Weight | 380kg | 450kg | 490kg |
Application
It is suitable for weighing soft and sticky material, such as cheese, jelly candy, cotton candy, preserved fruits, candied fruit, etc.
Individual needs: Kenwei develop a variety of weighers for different material, including counting weigher (pouch fill into a large bag), noodle weigher, weigher for frozen food, feeding-control weigher, weigher for stick-shaped products, cheese weigher, salad weigher, mixing weigher, etc. Above products can be selected for digital and modular, single or multi discharge chutes, "high precision" and "high speed" can be freely selected, etc., including a self-developed software system in order to better meet the individual needs of different clients.
FAQ
Q1: How to know which one packing machine is suitable for us?
You can first tell business representatives which equipment you want to know, what material is the product, how many grams to weigh, and the range of accuracy and speed requirements. Our engineers then recommend suitable packaging machines based on these data and product characteristics.
Q2: How to operate it?
Many languages are available for global markets. There are not only detailed instructions but also machine videos for reference learning.
Q3: Why we should choose your company?
We have many years of industrial production and management experience, professional R & D, sales, after-sales team. It can perfectly solve all the problems that customers encounter from purchase to sale.
Q4: How to cooperate with you?
You only need to contact our business representative, and they will be patient to guide you through the whole process.
Q5: What's your payment way?
T/T by our bank account directly.
Q6: How about the delivery and after-sales service?
All our machines are tailor-made because different clients have different requirements, delivery will be within 20 days for the small multi-head weigher, For the large-scale machine, it takes longer. Warranty:2years(Electric accessories) and free lifetime maintenance.
If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem
