Product Details:
Payment & Shipping Terms:
|
| Identify Code: | A14-2-8 | Weighing Range: | 10-200g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 50P/M |
| Hopper Volume: | 1L | Control Panel: | 10.1”Touch Screen |
| Options: | Timing Hopper/Printer/Reject Device | Packing Dimension(mm): | 1750(L)x1130(W)x1450(H) |
| Gross Weight: | 490kg | Power Requirement: | 220V/1500W/ 50/60Hz/10A |
| Driving System: | Step Motor | ||
| High Light: | 14 Head Multihead Weigher,14 Head Multihead Weigher,Pickles multihead weigher |
||

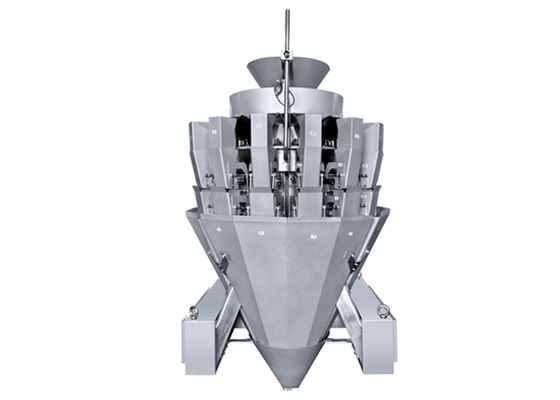

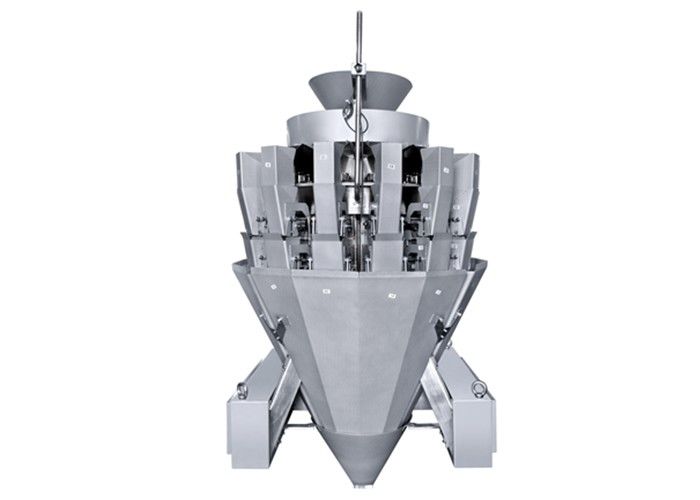

Two Layers Screw Feeding Multihead Weigher For Weighing Mustard, Pickles
Two layers of screw feeding weigher are specially used for quantitative weighing of shredded materials such as mustard, pickled radish, soy milk cucumber ,and so on. In order to prevent sticking, a double-deck screw feeding scheme is used to control the material. More elaborate, it can deal with a variety of different viscosity materials. At the same time, the scraper type double door hopper is used, which can also effectively solve the phenomenon of sticking of super viscous materials
Features
1. Adopt special sensors with high precision and high standard.
2. Module electric board, and with intelligent multiple sampling stable mode, make weighing higher accurate.
3. Intelligent fault alarm, convenient for maintenance.
4. High speed staggered discharging function, effectively prevent blocking materials.
5. New highly integrated modular design, using CAN bus technology.
6. Modbus industrial standard communication protocol realizes the multihead weigher and packaging machine interface.
Mechanical character

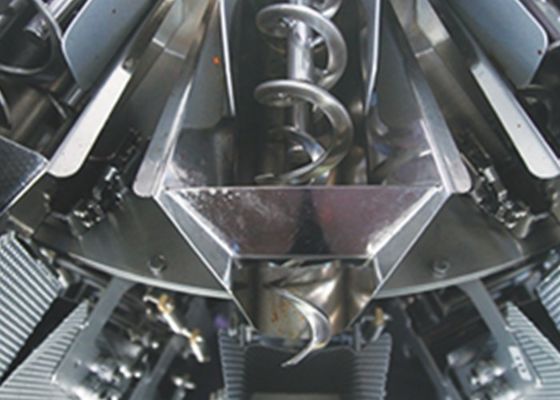

1. Two layers of the screw feeding scheme can control materials more precisely and is suitable for various viscous materials.
2. IP65 waterproof case is adopted, small dimple plate material is adopted for contact materials, and a 60-degree feeding chute is used to make materials fall smoothly.

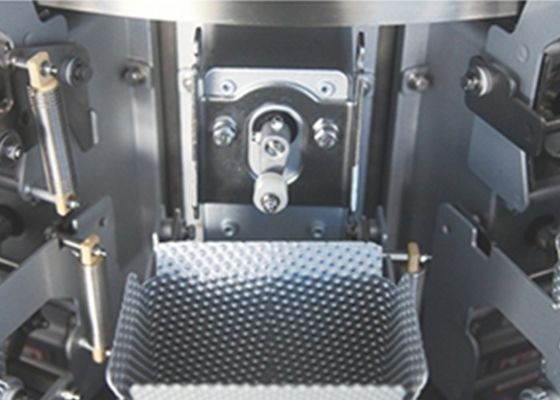

3. The scraper hopper can effectively solve the problem of material sticking on the hopper.
4. Double point material inspection is more accurate and effective to control the thickness.
Technical specification
| Model | JW-A14 |
| Identify Code | A14-2-8 |
| Weighing Range | 10-200g |
| Accuracy | X(0.5) |
| Max Speed | 50P/M |
| Hopper Volume | 1L |
| Control Panel | 10.1” Touch Screen |
| Options | Timing Hopper/Printer/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 220V/1500W/50/60Hz/10A |
| Packing Dimension(mm) | 1750(L)x1130(w)x1590(H) |
| Gross Weight | 490kg |
Application
It is suitable for weighing mustard, pickles, small fish, etc., with poor flowability.
Advantages: The main advantage is reflected in weighing accuracy, which indicates that the average error between actual weight and displayed weight is smaller, it could help customers save materials; The same interval time for hopper doors repeat open and close make vibration torque consistency, which makes the mechanical structure mutual friction loss is minimized and the machine can be in long-term stable operation.
Accuracy: Taking into consideration that the mode of the main vibrator and linear vibrator and vibration absorption ability of the framework that has the effect to weigher accuracy, Kenwei independent research and develop both standard and high amplitude vibrators to meet the needs of different materials. Also control the vibrating time and amplitude separately by control systems to automatically adjust the linear vibrator amplitude, which makes the material flow optimization; About the middle base of machine case, we always use 2.5mm-3.0mm stainless steel sheet and strengthen the internal structure by providing reinforcement to ensure the machine's rigidity. Some models take the machine case and middle base integrated, through a combination of AD converter module and anti-jamming technology, which effectively reduce the vibrating interference and ensure the accuracy of the machine running.
