Product Details:
Payment & Shipping Terms:
|
| Identify Code: | C200-2-1 | Weighing Range: | 5-200g |
|---|---|---|---|
| Accuracy: | XIII(1) | Max Speed: | 150PCS |
| Max.Belt Speed: | 80m/min | Control Panel: | 7”Touch Screen |
| Belt Size(mm): | 450(L)x100(W) | Reject Method: | Air Blowing |
| High Light: | High Precision Checkweigher,80m Per Minute Check Weigher,200g High Speed Check Weigher |
||

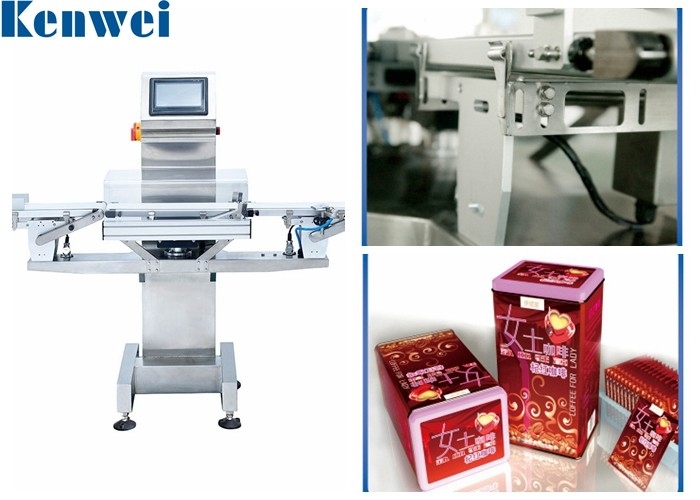

High Precision JW-C200 5-200g Check Weigher 80m Per Minute
The high precision JW-C200 5-200g check weigher is an automatic or manual machine for checking the weight of packaged commodities. It is normally found at the offgoing end of a production process and is used to ensure that the weight of a pack of the commodity is within specified limits. Any packs that are outside the tolerance are taken out of line automatically.The maximum detection weight of this sorting scale is less than 200 grams, suitable for small weight check materials.
Features
1. Auto program setting for easy operation.
2. Production records in details.
3. Grand New modular control system
4. Fault Alarm by text display.
5. Quick Release design.
Technical specification
| Model | JW-C200 | JW-C200 | |
| Identify Code | C200-2-1 | C200-2-2 | |
| Weighing Range | 5-200g | 2-200g | |
| Accuracy | XIII(1) | XIII(1) | |
| Max.Belt Speed | 80m/min | 70m/min | |
| Max Speed | 150PCS | 130PCS | |
| Belt Size(mm) | 450(L)x100(W) | 330(L)x100(W) | |
| Control Panel | 7” Touch Screen | ||
| Reject Method | Air blowing | ||
| Power Requirement | 220V/400W/50/60Hz/2A | 220V/400W/50/60Hz/2A | |
| Packing Dimension(mm) | 1450(L)x570(W)x1280(H) | 1450(L)x570(W)x1280(H) | |
| Gross Weight | 100kg | 100kg | |
Application
It is used to check the weight of packed bags and boxes and remove unqualified ones by rejection device.
FAQ
Q1: How to know which one packing machine is suitable for us?
You can first tell business representatives which equipment you want to know, what material is the product, how many grams to weigh, and the range of accuracy and speed requirements. Our engineers then recommend suitable packaging machines based on these data and product characteristics.
Q2: How to operate it?
Many languages are available for global markets. There are not only detailed instructions but also machine videos for reference learning.
Q3: Why we should choose your company?
We have many years of industrial production and management experience, professional R & D, sales, after-sales team. It can perfectly solve all the problems that customers encounter from purchase to sale.
Q4: How to cooperate with you?
You only need to contact our business representative, and they will be patient to guide you through the whole process.
Q5: What's your payment way?
T/T by our bank account directly.
Q6: How about the delivery and after-sales service?
All our machines are tailor-made because different clients have different requirements, delivery will be within 20 days for the small multi-head weigher, For the large-scale machine, it takes longer. Warranty:2years(Electric accessories) and free lifetime maintenance.
If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem
Quality:
A. The quality department is equipped with an environmental simulation test, frequency test, and waterproof test, which mainly used to simulate the high and low-temperature environment, research, and coping machine working conditions under different voltage and frequency, do well for the 50/60Hz frequency and vibration / rotary top cone inspection.
B. Our quality department is Including material checking, inspection, QE, checking before and after the aging test and finished product inspection, etc. total 16 inspection positions and steps.
C. We pay high attention to material inspection and finished product inspection of these two organizational structures.
D.Key components such as circuit boards, screens must be in 72 hours nonstop aging test at 50 ℃ environments. Each machine before delivering must be in 7 days nonstop aging test.
