Product Details:
Payment & Shipping Terms:
|
| Identify Code: | C200-2-1 | Weighing Range: | 5-200g |
|---|---|---|---|
| Accuracy: | XIII(1) | Max Speed: | 150PCS |
| Max.Belt Speed: | 80m/min | Control Panel: | 7”Touch Screen |
| Belt Size(mm): | 450(L)x100(W) | Reject Method: | Air Blowing |
| High Light: | 150PCS Check Weigher Machine,80g Check Weigher Machine,80g automatic checkweigher |
||

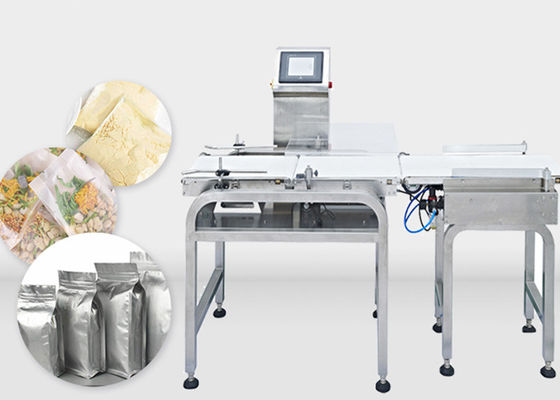

High Accuracy Automatic Checkweigher Machine With Belt Conveyor For Checking Small Weight
High precision Checkweigher Machine adopts high precision, high speed new high integration modular control system. Test whether the weight of a single product is consistent with the set target. The unqualified products will be automatically removed by the sorting equipment. The maximum detection weight of sorting scale is less than 200g, suitable for small weight inspection materials.
Features
1. Brand new modular control system
2. The fault alarm is displayed by text.
3. Quickly release the design.
4. Detailed production records.
5. Automatic program setting, easy to operate.
Technical specification
| Model | JW-C200 | JW-C200 | |
| Identify Code | C200-2-1 | C200-2-2 | |
| Weighing Range | 5-200g | 2-200g | |
| Accuracy | XIII(1) | XIII(1) | |
| Max.Belt Speed | 80m/min | 70m/min | |
| Max Speed | 150PCS | 130PCS | |
| Belt Size(mm) | 450(L)x100(W) | 330(L)x100(W) | |
| Control Panel | 7” Touch Screen | ||
| Reject Method | Air blowing | ||
| Power Requirement | 220V/400W/50/60Hz/2A | 220V/400W/50/60Hz/2A | |
| Packing Dimension(mm) | 1450(L)x570(W)x1280(H) | 1450(L)x570(W)x1280(H) | |
| Gross Weight | 100kg | 100kg | |
Application
It is used to check the weight of packed bags and boxes and remove unqualified ones by rejection device.
Accuracy:
Taking into consideration that the mode of the main vibrator and linear vibrator and vibration absorption ability of the framework that has an effect to weigher accuracy, Kenwei independent research and develop both standard and high amplitude vibrators to meet the needs of different materials. Also control the vibrating time and amplitude separately by control systems to automatically adjust the linear vibrator amplitude, which makes the material flow optimization; About the middle base of machine case, we always use 2.5mm-3.0mm stainless steel sheet and strengthen the internal structure by providing reinforcement to ensure the machine's rigidity. Some models take the machine case and middle base integrated, through a combination of AD converter module and anti-jamming technology, which effectively reduce the vibrating interference and ensure the accuracy of the machine running.
Individual needs:
Kenwei develop a variety of weighers for different material, including counting weigher (pouch fill into a large bag), noodle weigher, weigher for frozen food, feeding-control weigher, weigher for stick-shaped products, cheese weigher, salad weigher, mixing weigher, etc. The above products can be selected for digital and modular, single or multi discharge chutes, "high precision" and "high speed" can be freely selected, etc., including a self-developed software system in order to better meet the individual needs of different clients.
Function:
More diverse function, more convenient operation, such as easy cleaning, simulation tests, free output ports, timing hopper for choice, etc.HMI uses standard Modbus protocol, fully compatible with the industry standard, and easily achieve real two-in-one packaging machine Interface.
