Product Details:
Payment & Shipping Terms:
|
| Identify Code: | C200-2-1 | Weighing Range: | 5-200g |
|---|---|---|---|
| Accuracy: | XIII(1) | Max Speed: | 150PCS |
| Max.Belt Speed: | 80m/min | Control Panel: | 7”Touch Screen |
| Belt Size(mm): | 450(L)x100(W) | Reject Method: | Air Blowing |
| High Light: | Air blowing automatic checkweigher,160g automatic checkweigher,Air blowing high speed checkweigher |
||
High Speed Automatic Weighing Check Weigher With Belt Conveyor For Checking Weight
A new high precision, high speed and high integration modular control system is adopted for high precision calibration scale. Test whether the weight of a single product is consistent with the set target, and the unqualified products will be automatically eliminated by the sorting device. The maximum detection weight of sorting scale is less than 200g, which is suitable for small weight detection materials.
Features
1. Brand new modular control system
2. The fault alarm is displayed in text form.
3. Quickly release the design.
4. Detailed production records.
5. Automatic program setting, easy to operate.
Technical specification
| Model | JW-C200 | JW-C200 | |
| Identify Code | C200-2-1 | C200-2-2 | |
| Weighing Range | 5-200g | 2-200g | |
| Accuracy | XIII(1) | XIII(1) | |
| Max.Belt Speed | 80m/min | 70m/min | |
| Max Speed | 150PCS | 130PCS | |
| Belt Size(mm) | 450(L)x100(W) | 330(L)x100(W) | |
| Control Panel | 7” Touch Screen | ||
| Reject Method | Air blowing | ||
| Power Requirement | 220V/400W/50/60Hz/2A | 220V/400W/50/60Hz/2A | |

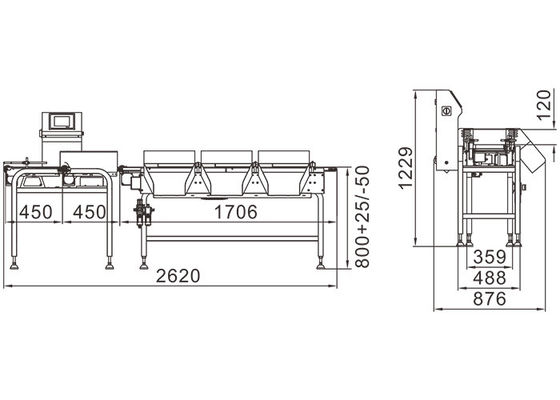

| Packing Dimension(mm) | 1450(L)x570(W)x1280(H) | 1450(L)x570(W)x1280(H) | |
| Gross Weight | 100kg | 100kg | |
Application
It is used to check the weight of packed bags and boxes and remove unqualified ones by rejection device.
Technology:
Through ten years of efforts, we build the technical team with high-quality professional engineers more than 30% in rich industry experience. They are with comprehensive capacity of design and development, manufacturing, marketing, installation and commissioning, technical training, and after-sales service for a fully automatic weighing packaging system.
Product customization
A. We have a technical team with a rapid response for special projects to meet the different requirements for customers.
B.10 years of experience in product customization, rich practical application of industry experience
C. According to the actual situation of enterprises, research production characteristics to make a comprehensive assessment of planning programs with high adaptability.
Products
A.Products: Currently only a few combination weigher manufacturing enterprises such as Ishida,Kenwei who use a "stable time development model" in program design and development. This development model is the core element to ensure weigher be in long-time stable operation and make material saving maximize.
B. Advantages: The main advantage is reflected in weighing accuracy, which indicates that the average error between actual weight and displayed weight is smaller, it could help customers save materials; The same interval time for hopper doors repeat open and close make vibration torque consistency, which makes the mechanical structure mutual friction loss is minimized and the machine can be long-term stable operation.
