Product Details:
Payment & Shipping Terms:
|
| Identify Code: | C6000-1-1 | Weighing Range: | 10-6000g |
|---|---|---|---|
| Accuracy: | XIII(1) | Max Speed: | 40PCS |
| Max.Belt Speed: | 40m/min | Control Panel: | 7”Touch Screen |
| Belt Size(mm): | 650(L)X400(W) | Reject Method: | Pneumatic Pusher/Slide Type |
| High Light: | 40PCS Check Weigher Machine,60kg Check Weigher Machine,60kg automatic checkweigher |
||

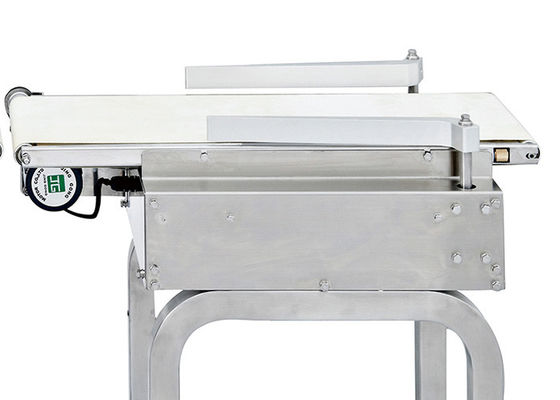

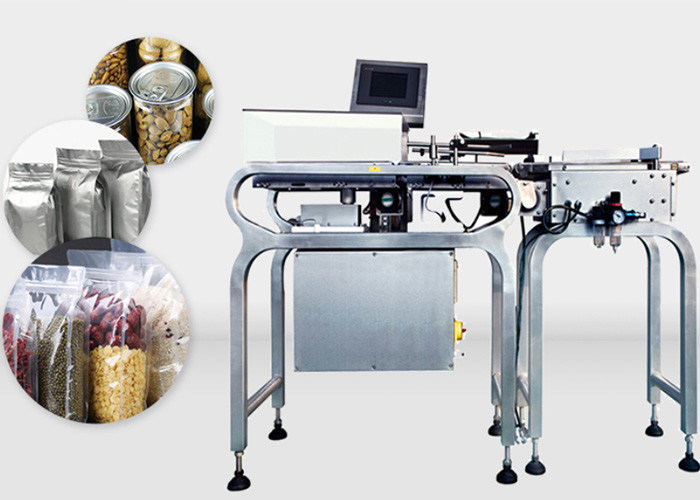

60kg Large Weighing Range Check Weigher With Belt And Roller Conveyor For Checking Weight
The testing scale is used to test whether the weight of a single product is consistent with the set target. The unqualified products are automatically eliminated by the sorting device. There are a variety of models for customers to choose, there are also a variety of rejection methods, including rocker rejection, pneumatic push-rod rejection, pneumatic rejection, slider rejection.
Features
1. Quick Release design.
2. Production records in details.
3. PLC control system with industry touch screen panel.
4. Intelligent construction, auto program setting for easy operation.
Technical specification
| Model | JW-C6000 |
| Identify Code | C6000-1-1 |
| Weighing Range | 10-6000g |
| Accuracy | XIII(1) |
| Max.Belt Speed | 40m/min |
| Max.Speed | 40PCS |
|
Belt Size(mm) |
650(L)x400(W) |
| Control Panel | 7” Touch Screen |
|
Reject Method |
Pneumatic pusher/Slide type |
| Power Requirement | 220V/600W/50/60Hz/3A |
| Packing Dimension(mm) | 1600(L)x950(W)x1490(H) |
| Gross Weight | 260Kg |
Application
It is used to check whether the single bag weight is conformed to the preset weight or not and auto remove the unqualified products by the rejection device
Technology:
A. Through ten years of efforts, we build the technical team with high-quality professional engineers more than 30% in rich industry experience. They are with comprehensive capacity of design and development, manufacturing, marketing, installation and commissioning, technical training, and after-sales service for a fully automatic weighing packaging system.
B. We have a technical team with a rapid response for special projects to meet the different requirements for customers.
C.Kenwei has a rigorous new product development process, which promotes the guidelines for overall mold, internal & external craft, also enhances the consistency and stability of machine quality.
Product customization
A. We have a technical team with a rapid response for special projects to meet the different requirements for customers.
B.10 years of experience in product customization, rich practical application of industry experience
C. According to the actual situation of enterprises, research production characteristics to make a comprehensive assessment of planning programs with high adaptability.
