Product Details:
Payment & Shipping Terms:
|
| Identify Code: | C1000-1-2 | Weighing Range: | 100-1000g |
|---|---|---|---|
| Accuracy: | XIII(1) | Max Speed: | 100P/M |
| Max.Belt Speed: | 62m/min | Control Panel: | 7”Touch Screen |
| Belt Size(mm): | 450(L)x220(W) | Reject Method: | Air Blowing/Air-reject/Pneumatic Pusher/Slide Type |
| Power Requirement: | 220V/400W/50/60Hz/2A | Packing Dimension(mm): | 1820(L)x1300(W)x1290(H) |
| Gross Weight: | 250kg | ||
| High Light: | Agricultural Check Weigher Machine,Conveyor Check Weigher Machine,Agricultural checkweigher scale |
||

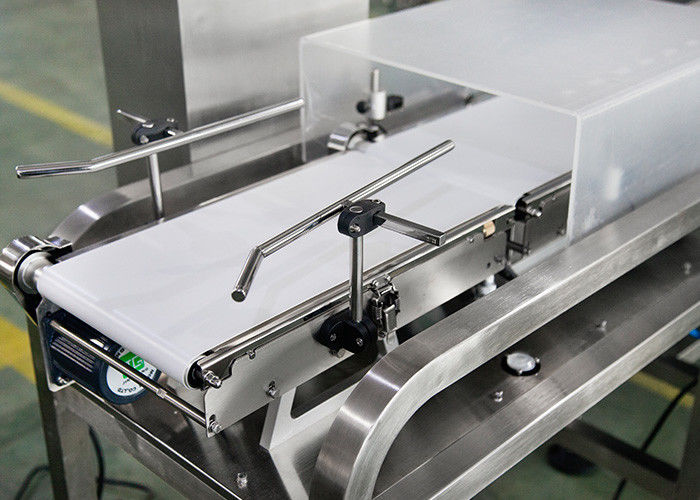

Multi-Level Check Weigher With Conveyor For Weighing And Sorting Materials In Agricultural
The selection part of the grading scale has 6 grades, which can meet the material ordering of different weight range. The sorting speed is up to 100 bags/min, and the linear speed is up to 62 meters/min, faster. Suitable for sorting and weighing of agricultural products, aquatic products and industrial materials.
Features
1. Intelligent design, automatic adjustment of parameters, easy operation.
2. Material tightness alarm, automatically generate column production report.
3. Conveyor structure adopts detachable design, which is easy to disassemble and clean.
4. PLC control system, standard industrial control screen, easy to expand other value-added applications, such as multi-stage weighing sorting, weight feedback, etc.
Mechanical character
The selection section has 6 levels of sorting, which can satisfy the sorting of different weight ranges of materials.
Technical specification
| Model | JW-C1000 |
| Identify Code | C1000-1-2 |
| Weighing Range | 100-1000g |
| Accuracy | XIII(1) |
| Max.Belt Speed | 62m/min |
| Max Speed | 100P/M |
| Belt Size(mm) | 450(L)X220(W)mm |
| Control Panel | 7”Touch Screen |
| Reject Method |
Air blowing/Air-reject/Pneumatic pusher/Slide type |
| Power Requirement | 220V/400W/50/60Hz/2A |
| Packing Dimension(mm) | 1820(L)x1300(W)x1290(H) |
| Gross Weight | 250kg |
Application
It is suitable for weighing and sorting materials in agricultural, aquatic, industry and other industries. The packing status of the materials can be in the form of bags, boxes, etc.
Technology:
Through ten years of efforts, we build a technical team with high-quality professional engineers more than 30% in rich industry experience. They are with comprehensive capacity of design and development, manufacturing, marketing, installation and commissioning, technical training, and after-sales service for a fully automatic weighing packaging system.
Advantages:
The main advantage is reflected in weighing accuracy, which indicates that the average error between actual weight and displayed weight is smaller, it could help customers save materials; The same interval time for hopper doors repeat open and close make vibration torque consistency, which makes the mechanical structure mutual friction loss is minimized and the machine can be long-term stable operation.
Product customization
A. We have a technical team with a rapid response for special projects to meet the different requirements for customers.
B.10 years of experience in product customization, rich practical application of industry experience
C. According to the actual situation of enterprises, research production characteristics to make a comprehensive assessment of planning programs with high adaptability.
