Payment & Shipping Terms:
|Identify Code:||A14-2-3D||Weighing Range:||10-1500g|
|Hopper Volume:||2.5L||Control Panel:||10.1”Touch Screen|
|Options:||Timing Hopper/Printer/Reject Device||Packing Dimension(mm):||1750(L)x1130(W)x1450(H)|
|Gross Weight:||500kg||Power Requirement:||220V/1500W/ 50/60Hz/10A|
|Driving System:||Step Motor|

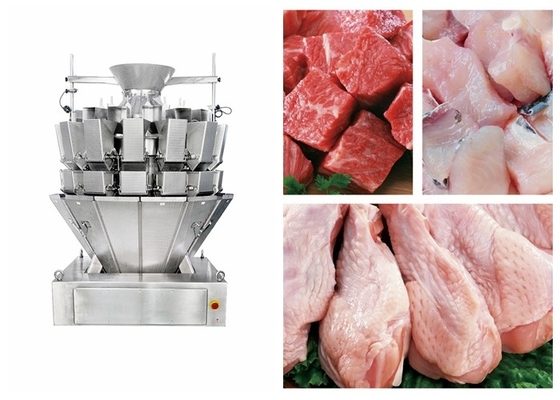

Meat 14 Head Multihead Weigher,
Touch Screen 14 Head Multihead Weigher,
Screw Feeding Multiweigh Multihead Weigher
The 14-head screw feeding weigher replaces the traditional vibrating feeding scheme with a screw feeding scheme, and is more suitable for viscous materials, such as raw chicken, pork, duck, beef, lamb, and other super viscous meat. The meat combination scale adopts IP65 waterproof chassis, the parts contacting the material use pattern plate material, and the cutting angle makes the material feeding smoother.
1. Special load cell with high precision and high standard.
2. Program recovery function can reduce operation failures, support multi-segment weight calibration.
3. No product auto-pause function can improve weighing stability.
4. Many languages are available for global markets.
5. 100 program capacity can meet various weighing requirements and a user-friendly help menu contributes to easy operation.
6. Easy removal and feature standard food-grade stainless steel construction using 304 S/S for all contact parts.
1. Screw feeding to replace the traditional vibrator feeding, it's more suitable for sticky material.
2. Drying device for optional effectively prevents the electrical components from damage because of humidity.
3. Uniform design standards contribute to better interchangeability for spare parts.
4. Stable actuator shell structure makes the hopper running more stable and reading higher accuracy. The integral machine case and the seat enhance the strength of the machine, makes the hopper shorter stable time.
5. IP65 waterproof machine case, material contact part with dimple plate, 60° discharge chute let the material fall smoothly.
|Control Panel||10.1” Touch Screen|
|Options||Timing Hopper/Printer/Reject Device|
|Driving System||Step Motor|
It's suitable for weighing the sticky material, such as chicken, pork, duck, fish, beef, and so on.
Q1: How to know which packing machine is suitable for us?
You can first tell business representatives which equipment you want to know, what material is the product, how many grams to weigh, and the range of accuracy and speed requirements. Our engineers then recommend suitable packaging machines based on these data and product characteristics.
Q2: How to operate it?
Many languages are available for global markets. There are not only detailed instructions but also machine videos for reference learning.
Q3: Why we should choose your company?
We have many years of industrial production and management experience, professional R & D, sales, after-sales team. It can perfectly solve all the problems that customers encounter from purchase to sale.
Q4: How to cooperate with you?
You only need to contact our business representative, and they will be patient to guide you through the whole process.
Q5: What's your payment way?
T/T by our bank account directly.
Q6: How about the delivery and after-sales service?
All our machines are tailor-made because different clients have different requirements, delivery will be within 20 days for the small multi-head weigher, For the large-scale machine, it takes longer. Warranty:2years(Electric accessories) and free lifetime maintenance.
If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem
Principle: "stable time development model" is through the accurate calculation and controlling of hopper motor time, linear vibrator delay time, vibrator operation time, etc to ensure sensor reads the current weight after setting stable time when each time material fills into the weighing hopper, which maximum to avoid interference from machine shaking since the stable time is inconsistent leading to the vibration mode torque are the difference.
