| Identify Code: | A14-16 | Weighing Range: | 10-1000g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 60P/M |
| Hopper Volume: | 1.6L | Control Panel: | 7”Touch Screen |
| Options: | Timing Hopper/Printer/Reject Device | Packing Dimension(mm): | 1750(L)x1160(W)x1420(H) |
| Gross Weight: | 490kg | Power Requirement: | 220V/1500W/ 50/60Hz/10A |
| Driving System: | Step Motor | ||
| High Light: | 60P/M 14 Head Multihead Weigher,1.6L Hopper 14 Head Multihead Weigher,Anchovy Fish Weigher |
||

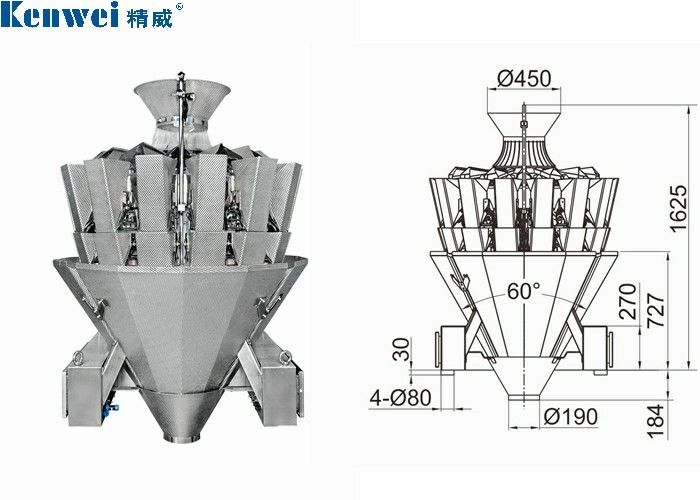

14 Head Sticky Multihead Weigher For Anchovy Fish
The 14-head anchovy fish weigher is specially designed for materials with high viscosity, more oil content, and materials that are easy to stick after the hopper is still, such as spicy small fish, sauce plate duck, and other casual small foods. The weigher’s computer determines the weight of product in each individual weigh hopper and identifies which combination contains the weight closest to the target weight of 100g. The multihead weigher opens all the hoppers of this combination and the product falls, via a discharge chute, into a bagmaker or, alternatively, into a distribution system which places the product
Features
1. Special load cell with high precision and high standard.
2. Program recovery function can reduce operation failures, support multi-segment weight calibration.
3. No product auto-pause function can improve weighing stability.
4. Many languages are available for global markets.
5. 100 program capacity can meet various weighing requirements and a user-friendly help menu contributes to easy operation.
6. The auger feeders and slider weighing system are able to transfer the sticky food through the weighing cycle.
7. 14-head sticky food multihead Weigher, a solution for sticky and difficult to handle ingredients and raw material
Mechanical character
1. Enhanced electromagnetic induction vibrator speeds up material feeding.
2. Inclined special linear vibration pan to ensure a smooth flowing of materials.
3. Discharged chute with small-angle is better for the falling of materials, effective control of the sticking problem.

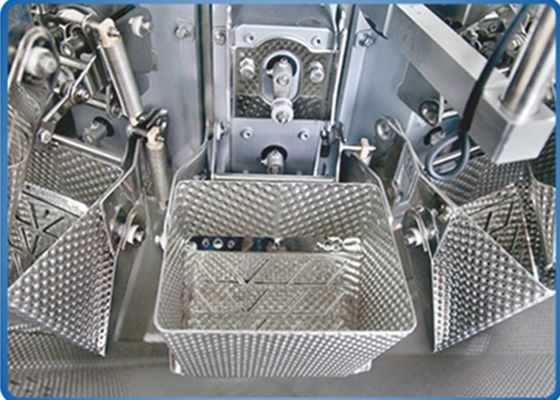

4. Special single-door open hopper, anti-adhesive design structure to ensure smooth flowing of materials, prevent sticking and ensure weighing accuracy.
5. Weighing detection is optional, make accurate control of feeding time and thickness of the material, ensure weighing accuracy.
6. It is suitable for materials with high viscosity and with much oil, it easy to stick on the hopper and material that can slide in the 60-angle discharged chute, such as spicy fish, sauce duck, etc.
Technical specification
| Model | JW-A14 |
| Identify Code | A14-16 |
| Weighing Range | 10~1000g |
| Accuracy | X(0.5) |
| Max Speed | 60P/M |
| Hopper Volume | 1.6L |
| Control Panel | 7” Touch Screen |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 110/220V/1500W/50/60Hz/10A |
| Packing Dimension(mm) | 1750(L)x1160(W)x1420(H) |
| Gross Weight | 490kg |
FAQ
Q1: How to know which packing machine is suitable for us?
You can first tell business representatives which equipment you want to know, what material is the product, how many grams to weigh, and the range of accuracy and speed requirements. Our engineers then recommend suitable packaging machines based on these data and product characteristics.
Q2: How to operate it?
Many languages are available for global markets. There are not only detailed instructions but also machine videos for reference learning.
Q3: Why we should choose your company?
We have many years of industrial production and management experience, professional R & D, sales, after-sales team. It can perfectly solve all the problems that customers encounter from purchase to sale.
Q4: How to cooperate with you?
You only need to contact our business representative, and they will be patient to guide you through the whole process.
Q5: What's your payment way?
T/T by our bank account directly.
Q6: How about the delivery and after-sales service?
All our machines are tailor-made because different clients have different requirements, delivery will be within 20 days for the small multi-head weigher, For the large-scale machine, it takes longer. Warranty:2years(Electric accessories) and free lifetime maintenance.
If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem
