Product Details:
Payment & Shipping Terms:
|
| Identify Code: | A14-2-3D | Weighing Range: | 10-1500g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 50P/M |
| Control Panel: | 10.1”Touch Screen | Packing Dimension(mm): | 1750(L)x1130(W)x1450(H) |
| Gross Weight: | 500kg | ||
| High Light: | Screw Feeding Multihead Weigher,50P/M Multihead Weigher,1500W 14 Head Weigher |
||

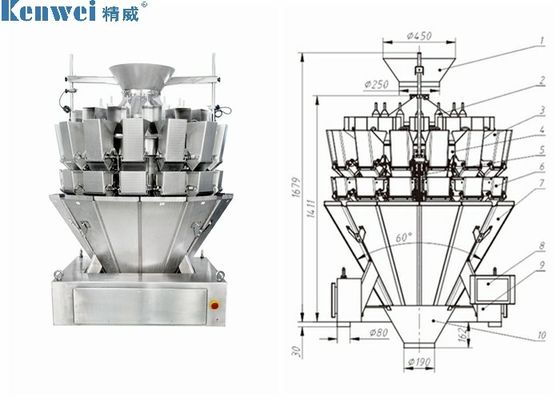

14 Head Screw Feeding Multihead Weigher

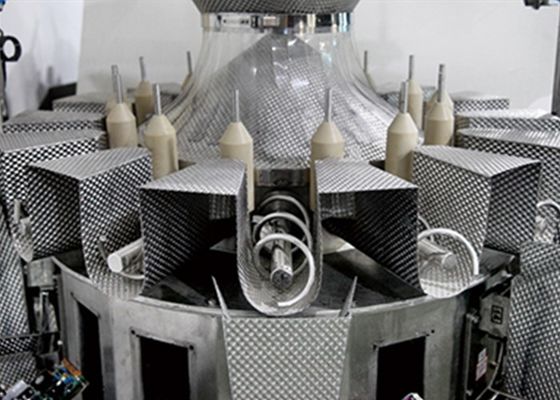

Kenwei screws feeder weighers are designed for difficult-to-handle foods that resist movement screw feeders option enables accurate multihead weighing of fresh meat, poultry and seafood, cooked pasta, or other difficult to handle sticky products. The rotation rate of screw feeders in the radial troughs can be adjusted to meet product characteristics, providing precise control of product supply to the pool and weigh hoppers.
Features
1. Special load cell with high precision and high standard.
2. With intelligent multiple sampling stable mode, make weighing higher accurate.
3. Intelligent fault alarm, convenient maintenance.
4. High speed staggered discharging function, effectively prevent blocking materials.
5. With highly integrated modular design and CAN bus technology.
6. Modbus industry-standard communication protocol, realize the interface combination of multihead weigher and packaging machine.
7.Stainless-steel execution for particularly aggressive products.
8.Automatic systems for cleaning parts in contact with the product.
9.Removable screw to facilitate cleaning.
Mechanical character
1. Screw feeding to replace the traditional vibrator feeding, it's more suitable for sticky material.
2. Drying device for optional, effectively prevent the electrical components from damage because of humidity.
3. Uniform design standards contribute to better interchangeability for spare parts.
4. Stable actuator shell structure makes the hopper running more stable and reading higher accuracy. The integral machine case and the seat enhance the strength of the machine, makes the hopper shorter stable time.
5. IP65 waterproof machine case, material contact part with dimple plate, 60° discharge chute let the material fall smoothly.
TECHNICAL DATA
| Gross weighers | |
| Weighing range | From 10 to 1500 g |
| Rate | Up to 50 bags/min depending on the type of product handled. |
| Installed power | 1500W |
| Hopper Volume | 2.5L |
| Packing Dimension | 1750(L)X1130(W)X1450(H) |
|
Options |
Timing Hopper/Printer/Reject Device |
Application
It's suitable for weighing sticky material, such as chicken, pork, duck, fish, beef, and so on.
Advantage
Products have passed CE certificate, PA / MC certificate, OIML certificate, and GSG enterprise qualification certificate, widely used in food, medicine, chemical, hardware, commodity fields. We reached strategic cooperation with customers from more than 100 countries and regions around the world, and we will continue to create more economic benefits for our customers.
13 years of experience in product customization and practical industry application. Special program technical team with rapid response. Tailored products and solutions with high pertinence and applicability are delivered after the comprehensive planning and evaluation based on the customer’s actual production situation and usage.
