Product Details:
Payment & Shipping Terms:
|
Application: | Sticky Food | Weighing Range: | 10-200g |
---|---|---|---|
Head: | 14head | Max Speed: | 50P/M |
Hopper Volume: | 1L | Control Panel: | 7”Touch Screen |
Options: | Timing Hopper/Printer/Reject Device | Power Requirement: | 220V/1500W/50/60Hz/10A |
High Light: | 200g 14 Head Multihead Weigher,1L 14 Head Multihead Weigher,1500W multihead weighing machine |

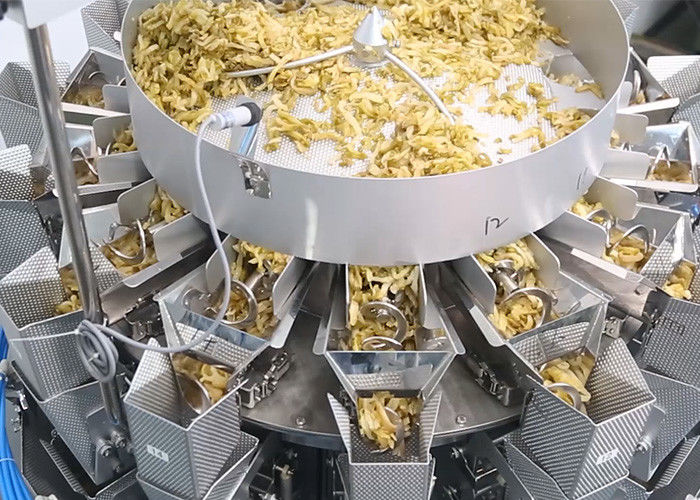

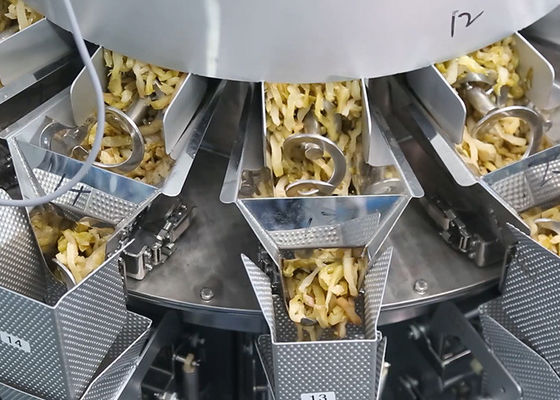

14 Head 200g Sticky Food Multihead Weigher Machine
Product description
Two layers of the screw feeding scheme can control materials more precisely and is suitable for various viscous materials. such as weighing mustard, pickles, small fish, etc., which with poor flowability. What's more, High speed staggered discharging function, effectively prevent blocking materials and module electric board, and with intelligent multiple sampling stable mode, make weighing higher accurate.
Product parameters
Model | JW-A14 | Driving System |
Step Motor |
Code | A14-2-8 | Accuracy | X(0.5) |
Hopper Volume | 1L | Weighing method | Load cell |
Control panel | 10.1” touch screen | Power supply | 5.95 KW |
Weigh range | 10-200g | ||
Max Speed |
50 bags/min |
Product features
IP65 waterproof case is adopted, small dimple plate material is adopted for contact materials, and 60-degree feeding chute is used to make materials fall smoothly.
Double point material inspection is more accurate and effective to control the thickness.
Applicable to a wide range of materials.
The scraper hopper can effectively solve the problem of material sticking on the hopper.
Product advantages
IP65 waterproof, use water cleaning directly, save time while cleaning Modular control system, more stability and lower maintenance fees Production records can be checked at any time or download to PC Load cell or photo sensor checking to satisfy different requirements Preset stagger dump function to stop blockage Design linear feeder pan deeply to stop small granule products leaking out Refer to product features, select automatic or manual adjust feeding amplitude Food contact parts disassembling without tools, which is easier to clean Multi-languages touch screen for various clients, English, French, Spanish, etc PC monitor production status, clear on production progress (Option)
