Product Details:
Payment & Shipping Terms:
|
| Identify Code: | C1000-1-1 | Weighing Range: | 10-1000g |
|---|---|---|---|
| Accuracy: | XIII(1) | Max Speed: | 80PCS |
| Max.Belt Speed: | 52m/min | Control Panel: | 7”Touch Screen |
| Belt Size(mm): | 450(L)x220(W) | Reject Method: | Air Blowing/Air-reject/Pneumatic Pusher/Slide Type |
| High Light: | 1000g checkweigher system,52m/min checkweigher system,52m/min checkweigher scale |
||

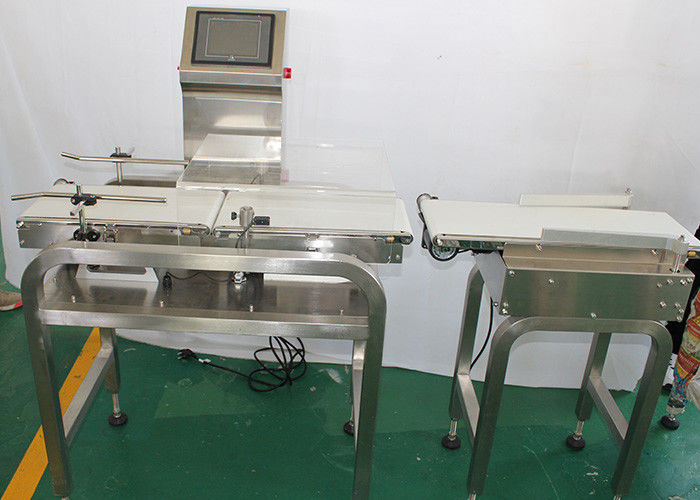

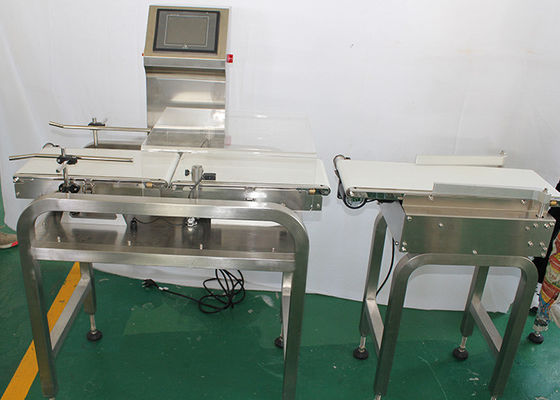

High-Speed Check Weigher For Sorting 1000g Unqualified Products With Arm Reject
The check weigher is used to detect whether the weight of a single product is consistent with the set target, and the sorting device automatically rejects the substandard name of the substandard intelligent design. Check weigher has a variety of models for customers to choose from, and there are many types of rejection methods, including arm rejection, pneumatic pusher rejection, air blowing rejection, and drop type rejection. This is an arm rejection, where the product passes the weight check, unqualified products, the rocker quickly rejects it, fast and accurate.
Features
Technical specification
| Model | JW-C200 | JW-C1000 | JW-C2000 | JW-C3000 | JW-C6000 |
| Identify Code | C200-2-1 | C1000-1-1 | C2000-1-1 | C3000-1-1 | C6000-1-1 |
| Weighing Range | 5-200g | 10-1000g | 10-2000g | 10-3000g | 10-6000g |
| Accuracy | XIII(1) | XIII(1) | XIII(1) | XIII(1) | XIII(1) |
| Max.Belt Speed | 55m/min | 52m/min | 52m/min | 40m/min | 40m/min |
| Max.Speed | 100PCS | 80PCS | 80PCS | 50PCS | 40PCS |
| Belt Size(mm) | 350(L)x150(W) | 450(L)x220(W) | 450(L)x300(W) | 650(L)x400(W) | 650(L)x440(W) |
| Control Panel | 7” Touch Screen | ||||
| Reject Method | Air blowing | Air blowing/Air-reject/Pneumatic pusher/Slide type | Pneumatic pusher/Slide type | ||
| Power Requirement | 220V/400W/50/60Hz/2A | 220V/400W/50/60Hz/2A | 220V/400W/50/60Hz/2A | 220V/600W/50/60Hz/3A | 220V/600W/50/60Hz/3A |
| Packing Dimension(mm) | 1250(L)x570(W)x1150(H) | 980(L)x800(W)x1290(H) | 980(L)x860(W)x1290(H) | 1600(L)x950(W)x1490(H) | 1600(L)x950(W)x1490(H) |
| Gross Weight | 100Kg | 180Kg | 190Kg | 260Kg | 260Kg |
Application
It is used to detect whether the weight of a single product is consistent with the set target, and the sorting device automatically rejects substandard products.
Adopting well-known Japanese and German brand load cells. Key components such as hoppers, linear pans, waterproof cover are made by high-precision molds, which contributes to high consistency and interchange-ability. The circuit board design adopts the industrial-grade design scheme, the industrial-grade material, and the manufacturing technology from the chip selection to the PCB design and the protection. The standard touch screens use an LCD screen of 50,000-hours-life, which adopts the immunity standard higher than the EC general standard industrial environment, and achieves a high-level design of 4kV.
Having a high-quality team with more than 30% professional technicians, which ensures our comprehensive capacity from R&D, manufacturing, marketing, installation, technical training to after-sales service for the complete automatic weighing packaging system.
