Product Details:
Payment & Shipping Terms:
|
| Identify Code: | C200-2-1 | Weighing Range: | 5-200g |
|---|---|---|---|
| Accuracy: | XIII(1) | Max Speed: | 150PCS |
| Max.Belt Speed: | 80m/min | Control Panel: | 7”Touch Screen |
| Belt Size(mm): | 450(L)x100(W) | Reject Method: | Air Blowing |
| High Light: | 150PCS Check Weigher Machine,200g Check Weigher Machine,200g checkweigher scale |
||

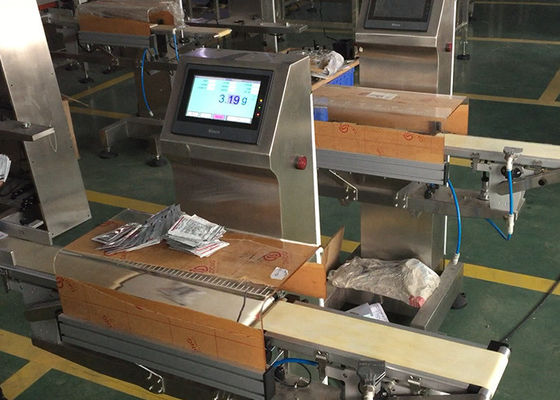

High Precision Automatic Belt Conveyor 200g Check Weigher For Food Industry
The high-precision checkweigher adopts a new type of highly integrated modular control system with high precision and high speed. It is used to detect whether the weight of a single product is consistent with the set target. Unqualified products will be automatically rejected by the sorting equipment. The maximum detection weight of the sorting scale is less than 200 grams, which is suitable for small weight inspection materials.
Features
1. Brand new modular control system
2. The fault alarm is displayed by text.
3. Quickly release the design.
4. Automatic program setting, easy to operate.
5. Detailed production records.
Technical specification
| Model | JW-C200 | JW-C200 | |
| Identify Code | C200-2-1 | C200-2-2 | |
| Weighing Range | 5-200g | 2-200g | |
| Accuracy | XIII(1) | XIII(1) | |
| Max.Belt Speed | 80m/min | 70m/min | |
| Max Speed | 150PCS | 130PCS | |
| Belt Size(mm) | 450(L)x100(W) | 330(L)x100(W) | |
| Control Panel | 7” Touch Screen | ||
| Reject Method | Air blowing | ||
| Power Requirement | 220V/400W/50/60Hz/2A | 220V/400W/50/60Hz/2A | |
| Packing Dimension(mm) | 1450(L)x570(W)x1280(H) | 1450(L)x570(W)x1280(H) | |
| Gross Weight | 100kg | 100kg | |
Application
It is used to check the weight of packed bags and boxes and remove unqualified ones by rejection device.
Company profile
Guangdong Kenwei Intellectualized Machinery Co., Ltd, is currently a large production base of multihead weighers. As a professional manufacturer, we devote to R&D and manufacturing of multihead weighers, linear weighers, check weighers, metal detectors with high speed and high accuracy. We also provide customers with complete automatic weighing and packaging systems to meet the various customized requirements.
Having a high quality and R&D lab in the industry, our quality department covers 16 inspection points such as incoming materials checking, routing inspection, QE, pre-aging, and post-aging inspection, finishing product inspection, and a complete quality management system with restricted control of upper and lower processes. Our products passed the environment simulation test, frequency, waterproof test, salt spray test, amplitude, and elastic stress-strain test, functional simulation test, 7*24 hours continuous aging test, and so on. The core components such as circuit boards and touch screens are all passed for nonstop aging test for more than 72 hours at 50℃ environment because we devote ourself to manufacturing craftsmanship products with high quality. The failure rate of our products is less than 0.5% within 1 year and less than 1% within 2 years.
Kenwei independently researched and developed both standard and high amplitude vibrators. The vibration time and vibration amplitude of each vibrator can be automatically adjusted to optimize the material flow. Multi-head weigher central chassis is made from 2.5mm thickness stainless plate and strengthened structurally with internal strengthening rib. The AD conversion module combines technical modification with anti-interference technology to effectively minimize various vibration interference and ensure the accuracy of the whole machine.
