Product Details:
Payment & Shipping Terms:
|
| Identify Code: | A14-1-12 | Weighing Range: | 10-1500g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 100P/M |
| Hopper Volume: | 1.6L/2.5L | Control Panel: | 7”Touch Screen |
| Options: | Timing Hopper/Printer/Reject Device | Packing Dimension(mm): | 1750(L)x1130(W)x1420(H) |
| Gross Weight: | 490kg | Power Requirement: | 220V/1500W/50/60Hz/10A |
| Driving System: | Step Motor | ||
| High Light: | 60° multiweigh multihead weigher,1080g multiweigh multihead weigher,1080g multi head scale |
||

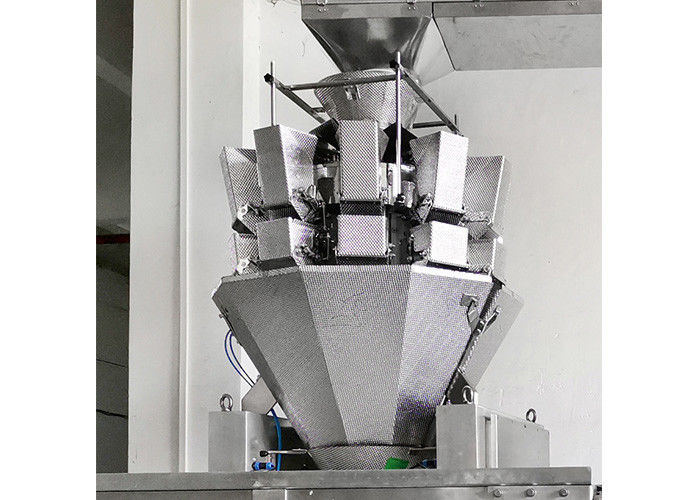

High Productivity 14 Head Cheese Quantitative packing weigher For Weighing rice noodles
The 14 head cheese multihead weigher uses a high-precision special sensor, which can be automatically paused when the material is lacking, making the weighing more stable. It has a down-tilt special line vibration plate to ensure smooth feeding.
Features
1.Using high-precision, high-standard special sensors.
2.Provide multiple languages, easy to operate, suitable for the global market.
3.Factory parameter setting recovery function, support multi-segment weight calibration.
4..When the material is insufficient, it can be automatically hung to make the weighing more stable.
5.The amplitude of each production line can be adjusted independently to make the feeding more uniform.
6.Store 100 sets of parameter settings to meet various material requirements, help menu, easy to learn and use.
Mechanical character

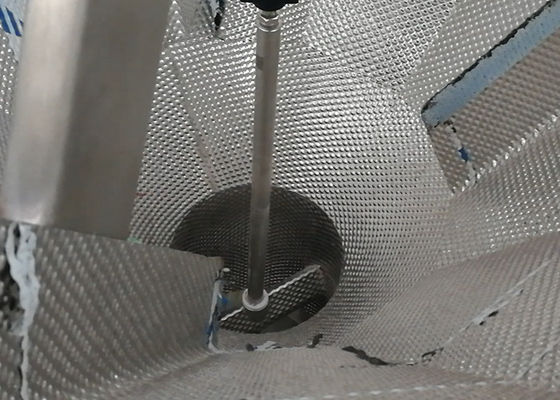

1. The 60° dimple discharge chute reduces stickiness issues.
2. Enhanced linear vibrator improves the fluidity of materials.
3. Special linear linear vibration plate to ensure stable feeding.
4. The rotating top cone with adjustable speed is suitable for different product feeding.
5. The entire thickened aluminum casing enhances the strength of the machine and shortens the sample stabilization time.
6. Optional weighing material detection is optional to accurately control the feeding time and material thickness to ensure weighing accuracy.
Technical specification
| Model | JW-A10 | JW-A12 | JW-A14 |
| Identify Code | A10-1-12 | A12-1-12 | A14-1-12 |
| Weighing Range | 10-1000g | 10-1500g | 10-1500g |
| Accuracy | X(0.5) | X(0.5) | X(0.5) |
| Max Speed | 60P/M | 100P/M | 100P/M |
| Hopper Volume | 1.6L/2.5L | ||
| Control Panel | 7”Touch Screen | ||
|
Options |
Timing Hopper/Printer/Reject Device | ||
| Driving System | Step Motor | ||
| Power Requirement | 220V/1000W/50/60Hz/10A | 220V/1200W/50/60Hz/10A | 220V/1500W/50/60Hz/10A |
| Packing Dimension(mm) | 1620(L)x1100(W)x1420(H) | 1700(L)x1100(W)x1130(H) | 1750(L)x1130(W)x1420(H) |
| Gross Weight | 380kg | 450kg | 490kg |
Application

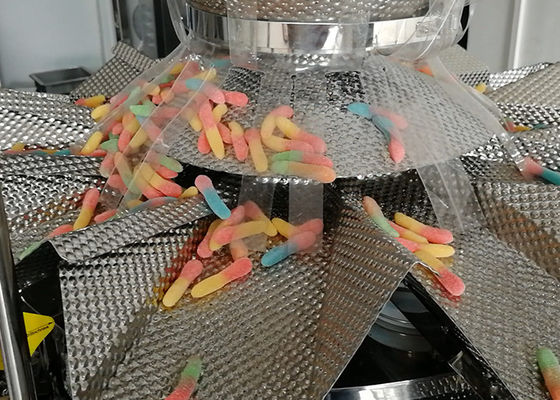

It is suitable for weighing soft and sticky materials, such as cheese, jelly candies, marshmallows, preserved fruits, preserves, etc.
