Horizontal Food Metal Detector Machine For Food Industry

China Guangdong Kenwei Intellectualized Machinery Co., Ltd. certification
China Guangdong Kenwei Intellectualized Machinery Co., Ltd. certification
Help customers to improve competitive power and profitable ability by providing quality machines, best service, and faster innovation.

—— Cathy

Try the best to make customers are satisfied and successful.

—— John

Kenwei 's weighing equipment has solved a big problem for me and improved my production efficiency.

—— Mr.Louis

I'm Online Chat Now

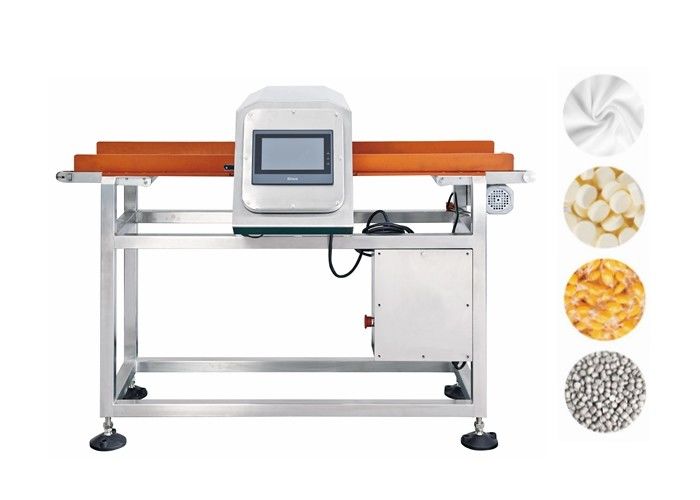

Horizontal Food Metal Detector Machine For Food Industry

Horizontal Food Metal Detector Machine For Food Industry
Horizontal Food Metal Detector Machine For Food Industry

Large Image :  Horizontal Food Metal Detector Machine For Food Industry

Product Details:
Place of Origin: Guangdong,China
Brand Name: Kenwei
Certification: CE,SGS,OIML
Model Number: JW-G3012
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD3600-4700
Packaging Details: Wooden Crate Package
Delivery Time: 20-45 working day
Payment Terms: L/C, T/T
Supply Ability: 700 set per/year
Detailed Product Description
Identify Code: G3012-1-1 Protection Class: IP54/IP66
Speed: 30m/min Max Package Size(mm): 300(W)x120(H)
Sensitivity(mm): Fe: φ0.8 Sus:φ1.5 Power Requirement: 220V/180W/50/60HZ/0.8A
Packing Dimension(mm): 1450(L)x890(W)x1080(H) Gross Weight: 200kg
High Light:

IP54 Food Metal Detector Machine


Metal Detector Machine 30m/min


SGS Horizontal Metal Detecting Devices

Horizontal Food Metal Detector Machine For Food Industry


The horizontal metal detector adopts a number of digital processing technologies and intelligent algorithms, with more comprehensive functions and improved detection accuracy and stability. Horizontal metal detectors are widely used in food, pharmaceutical, chemical, textile, clothing, toys, rubber, and other fields. 32 kinds of multi-language are available, the operation is simple and convenient.





1. 32 kinds of languages to choose, 7"standard industrial touch screen, the new industry standard.

2. Adopts balance coil theory, signals full cover all the detecting zone, no blind zone.

3. Adopts many digital processing technologies and an intelligent algorithm, overall functions, increases detecting sensitivity and stability.

4. Adopts phase regulation technology to restrain signal interference from products.

5. Digital control mainboard, stable performance, automatical product setup function, visual detecting wave shape, easy to adjust.

6. Large storage space can save product program and record of produce and alarm etc;

7. Multi-level user administration to avoid unprofessional change parameters.

8. Stainless steel waterproof design, detachable design for the belt, easy to maintain.




Mechanical character


It adopts advanced digital processing technology, can detect both magnetic and nonmagnetic metals in the product. The colorful touch screen is convenient for communication between man and computer. High detecting sensitivity and stability. Multiple rejecting devices to choose, avoiding situations that metal leaving in the product when producing.



Technical specification


Model JW-G3012 JW-G4015 JW-G4025 JW-G5020
Identify Code G3012-1-1 G4015-1-1 G4025-1-1 G5020-1-1
Protection Class IP54/IP66
Speed 30m/min
Max Package Size(mm) 300(W)x120(H) 400(W)x150(H) 400(W)x250(H) 500(W)x200(H)
Sensitivity(mm) Fe: φ0.8 Sus:φ1.5 Fe: φ1.0 Sus:φ2.0 Fe: φ1.5 Sus:φ3.0 Fe: φ1.2 Sus:φ2.5
Power Requirement 220V/180W/50/60HZ/0.8A 220V/180W/50/60HZ/0.8A 220V/180W/50/60HZ/0.8A 220V/220W/50/60HZ/1A
Packing Dimension(mm) 1450(L)x890(W)x1080(H) 1450(L)x1010(W)x1110(H) 1450(L)x1010(W)x1210(H) 1450(L)x1110(W)x1160(H)
Gross Weight 200kg 230kg 240kg 260kg


Horizontal Food Metal Detector Machine For Food Industry 0



It is widely used for food, pharmaceutical, chemical, textile, clothes, toys, rubber, etc. It is the first choice for HACCP of the food industry and GMP of the pharmaceutical industry.


Horizontal Food Metal Detector Machine For Food Industry 1





Q1: How to know which one packing machine is suitable for us?
You can first tell business representatives which equipment you want to know, what material is the product, how many grams to weigh, and the range of accuracy and speed requirements. Our engineers then recommend suitable packaging machines based on these data and product characteristics.


Q2: How to operate it?
Many languages are available for global markets. There are not only detailed instructions but also machine videos for reference learning.


Q3: Why we should choose your company?
We have many years of industrial production and management experience, professional R & D, sales, after-sales team. It can perfectly solve all the problems that customers encounter from purchase to sale.


Q4: How to cooperate with you?
You only need to contact our business representative, and they will be patient to guide you through the whole process.


Q5: What's your payment way?
T/T by our bank account directly.


Q6: How about the delivery and after-sales service?
All our machines are tailor-made because different clients have different requirements, delivery will be within 20 days for the small multi-head weigher, For the large-scale machine, it takes longer. Warranty:2years(Electric accessories) and free lifetime maintenance.

If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem

Horizontal Food Metal Detector Machine For Food Industry 2


Accuracy: Taking into consideration that the mode of the main vibrator and linear vibrator and vibration absorption ability of the framework that has the effect to weigher accuracy, Kenwei independent research and develop both standard and high amplitude vibrators to meet the needs of different materials. Also control the vibrating time and amplitude separately by control systems to automatically adjust the linear vibrator amplitude, which makes the material flow optimization; About the middle base of machine case, we always use 2.5mm-3.0mm stainless steel sheet and strengthen the internal structure by providing reinforcement to ensure the machine's rigidity. Some models take the machine case and middle base integrated, through a combination of AD converter module and anti-jamming technology, which effectively reduce the vibrating interference and ensure the accuracy of the machine running.
