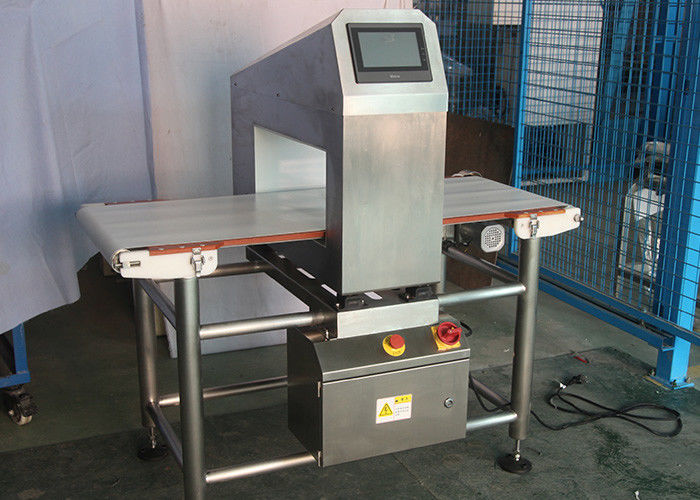

Pharmaceutical 30m/Min Metal Detecting Equipment

Pharmaceutical 30m/Min Metal Detecting Equipment
Pharmaceutical 30m/Min Metal Detecting Equipment Pharmaceutical 30m/Min Metal Detecting Equipment

Large Image :  Pharmaceutical 30m/Min Metal Detecting Equipment

Product Details:
Place of Origin: Guangdong,China
Brand Name: Kenwei
Certification: CE,SGS,OIML
Model Number: JW-G5020
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD3600-4700
Packaging Details: Wooden Crate Package
Delivery Time: 20-45 working day
Payment Terms: L/C, T/T
Supply Ability: 500 set per/year
Detailed Product Description
Identify Code: G5020-2-1 Protection Class: IP54/IP66
Speed: 30m/min Max Package Size(mm): 500(W)x200(H)
Sensitivity(mm): Fe: φ1.2 Sus:φ2.5 Options: Dimple Plate/Timing Hopper/Printer/Reject Device
Packing Dimension(mm): 1470(L)x1050(W)x1410(H)
High Light:

30m/min Metal Detecting Equipment


IP66 Metal Detecting Equipment


30m/min pharmaceutical metal detector

High Detecting Sensitivity And Stablity Horizontal Metal Detector For Food, Pharmaceutical


Metal detector adopts multi-frequency technology to adapt to different types of products to be tested. The special conveyor belt can minimize the interference source, run smoothly, ensure the detection sensitivity of the whole machine, and facilitate assembly and maintenance. At the same time, the probe has a built-in high sensitivity, can effectively screen the signal attached to the aluminum film packaging products. Suitable for pasta, vegetables and fruits, frozen food and other industries.





1. Back up data via USB.

2. Multi-frequency technology adapts to different types of products and is more versatile.

3. The software has been upgraded, and the system can be maintained easily.

4. During the automatic parameter setting stage, the system can select the best frequency according to different product characteristics.

5. Support a variety of working modes, according to the water content and quantity of the material, the detection sensitivity can be maximized.

6.7-inch full-color touch screen, pre-installed with operation help menu, no user manual.

7. The use of 32-bit microprocessor with powerful digital signal analysis and processing capabilities improves the sensitivity, anti-interference ability and long-term stability of the system.



Mechanical character


1. There are a variety of rejection options.

2. Stainless steel integrated frame, simple and beautiful, easy to clean and maintain.

3. The high sensitivity sensor built into the detector can effectively shield the signal of aluminum film packaging products and accurately determine the magnetic metal foreign matter in the packaging.

4. Special conveyor belt can minimize interference source, make the machine run smoothly, ensure detection sensitivity, and make disassembly and maintenance more convenient.


Pharmaceutical 30m/Min Metal Detecting Equipment 0



Technical specification


Model JW-G5020
Identify Code G5020-2-1
Protection Class IP54/IP66
Speed 30m/min
Max Package Size(mm) 500(W)x200(H)
Sensitivity(mm) Fe: φ1.2 Sus:φ2.5
Power Requirement 220V/400W/50/60Hz/2A
Packing Dimension(mm) 1470(L)x1050(W)x1410(H)
Gross Weight 200kg





Suitable for metal detection and sorting in food, medicine, spice, plastic, handicraft, electronics, toy and other industries. It is especially suitable for noodle food, vegetable food, frozen food, sugar food, pickles, etc.

Pharmaceutical 30m/Min Metal Detecting Equipment 1


Product customization


A. We have a technical team with a rapid response for special projects to meet the different requirements for customers.


B.10 years of experience in product customization, rich practical application of industry experience


C. According to the actual situation of enterprises, research production characteristics to make a comprehensive assessment of planning programs with high adaptability.



Domestic and international service


A.2 years warranty:All our customers who buy Kenwei machines will enjoy a two-year warranty. Only high-quality can ensure the stable operation of combination weigher with the extremely low failure rate. From recent statistics, the failure rate of Kenwei machines is less than 0.5% within1year, and failure rate within 2 years is less than 1%.


B.Organization:Kenwei service department is including test group, planning group, door-to-door service groups, etc, mainly to provide commission for specific materials and make commission regularity indicators so that to find out the suitable material for the machine; Also, they are responsible for customer training and online operating skills, including installation manual and maintenance manual provided. Above are customer accepted initiatives.


C.High efficiency: Kenwei has a high efficient service team. When customers encounter problems,98.5% of the problems get a reply within the same day, and spare part is sent within 3 days if needed.
