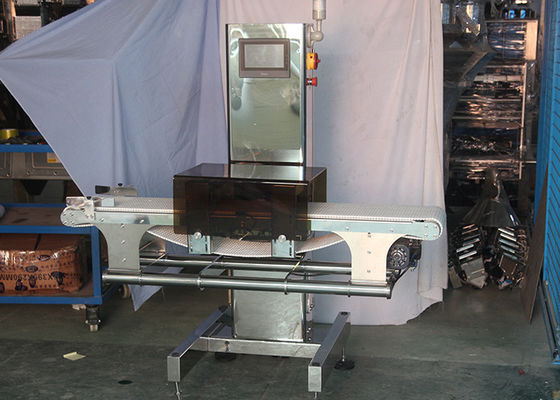

Kenwei Aluminum Foil 240mm Metal Detecting Machines

High-Sensitivity Metal Detector Sensor For Aluminum Foil Packaging Products Testing





Metal detectors are suitable for aluminum foil packaging products and can also be used to detect magnetizable metal foreign matter, such as iron, cobalt, nickel, plastic molding stainless steel, silicon steel, etc. High sensitivity sensor and integrated control method are adopted to effectively solve the detection ability of aluminum film and aluminum foil packaging products to magnetic metal foreign bodies.





Features



1. Data can be backed up via USB.

2. Support software upgrade to facilitate system maintenance.

3. Using 32-bit microprocessor, superior digital signal analysis and processing, improve system sensitivity, anti-interference and long-term stability.

4. High sensitivity sensor and integrated control method can effectively solve the detection ability of magnetic metal foreign matter in aluminum film and aluminum foil packaging products.

5. Equipped with a 7-inch color screen and pre-installed operation help menu, it is convenient for man-machine communication, coordination and learning, and has the function of intelligent sampling and learning according to the characteristics of materials.







Mechanical character



1. There are a variety of rejection options.

2. Stainless steel integrated frame, simple and beautiful, easy to clean and maintain.

3. Positive and negative transport design, flexible supporting packaging production line supporting requirements.

4. The high sensitivity sensor built into the detector can effectively shield the signal of aluminum film packaging products and accurately determine the magnetic metal foreign matter in the packaging.

5. Customize plastic chain plate to reduce interference source, make the machine run smoothly, ensure detection sensitivity, and facilitate disassembly and maintenance.



Technical specification



Model	JW-GL2415
Identify Code	GL2415-1-1
Protection Class	IP54/IP66
Speed	15-35m/min
Max Package Size(mm)	Width:240mm Hight Adjustable:20-150mm
Sensitivity(mm)	Fe:φ1.5 Sus:φ2.5
Power Requirement	220V/180W/50/60Hz/0.8A
Packing Dimension(mm)	1570(L)x880(W)x1490(H)
Gross Weight	170kg





Application



It is suitable for aluminum foil packaging products: coffee bags, peanuts, dried meat products, candy, chocolate, and other materials testing, used in food, medicine, cosmetics, security products, chemical industry, and other metal detection. The state of material packaging can be in bulk, bagged, bottled, boxed, and other forms. This model can detect metal foreign objects that can be magnetized, such as iron, cobalt, nickel, plastic formed stainless steel, silicon steel, and etc.







Technology:



A. Through ten years of efforts, we build the technical team with high-quality professional engineers more than 30% in rich industry experience. They are with comprehensive capacity of design and development, manufacturing, marketing, installation and commissioning, technical training, and after-sales service for a fully automatic weighing packaging system.



B. We have a technical team with a rapid response for special projects to meet the different requirements for customers.



C.Kenwei has a rigorous new product development process, which promotes the guidelines for overall mold, internal & external craft, also enhances the consistency and stability of machine quality.









Kenwei machinery advantages



1.2 years warranty: help customer reduce service cost, less worry, less money;







2.Brand: Industry-leading enterprises, the international production scale, one of the largest manufacturing bases of producing professional combination weigher (linear weigher/check weigher/metal detector, etc.) in the world with wide influence. We are a national high-tech enterprise.





3.Ten years experience: Ten years of customized experience of weighing production system, provide high-precision, high-efficiency production line for customers, greatly enhance the customer's profitability.





4. Customized group: We have a technical team with a rapid response for special projects to meet the different requirements for customers.





5. Meet individual needs: Based on the actual situation of customers, research the production characteristics, make comprehensive assessment planning programs with high adaptability.





6.Rigorous design: Rigorous weighing system design and development process to promote the overall mold, internal, and external process guidelines to enhance the accuracy and stability of the production line.
