Product Details:
Payment & Shipping Terms:
|
| Identify Code: | GC215-1-1 | Protection Class: | IP54/IP65 |
|---|---|---|---|
| Speed: | 32-52m/min | Reject Method: | Air Blowing/Air-reject/Pneumatic Pusher/Slide Type |
| Sensitivity(mm): | Fe:φ1.0 Sus:φ2.0 | Power Requirement: | 220V/440W/50/60HZ/2A |
| Packing Dimension(mm): | 1460(L)x1200(W)x1280(H) | Gross Weight: | 290kg |
| High Light: | IP54 food metal detector,440W food metal detector,IP54 metal detector for food industry |
||

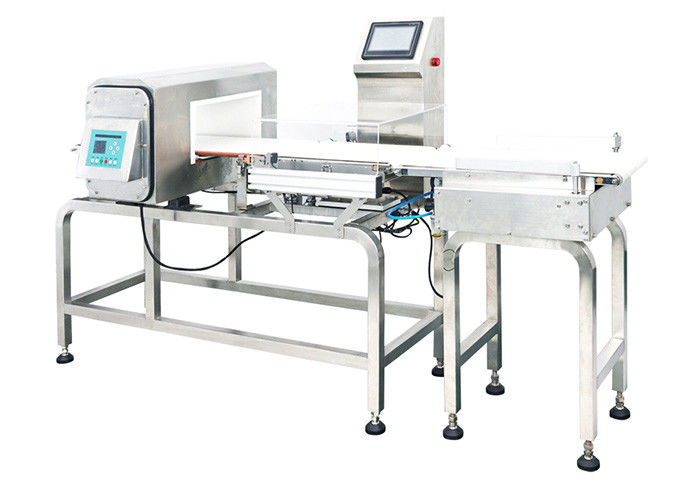

High Accuracy Combined Check Weigher And Metal Detector For Food,Pharmaceutical,Chemical
Combine metal detector and weight scale to check weight and metal missing on one machine, effectively reduce footprint and improve product safety. Gold inspection and reinspection machine can be widely used in food, medicine, chemical industry, textile and other fields of weight and metal detection. Products have passed the CE certificate, PA/MC certificate, OIML certificate, GSG enterprise qualification certificate, widely used in food, medicine, chemical, daily and other fields.
Features
1. Detachable belt design, easy to clean and maintain.
2. Independent weight and metal automatic dumping device.
3. Three-speed options for touch screen, suitable for different packaging lines and different packaging speeds.
4. 32 languages to choose from, 7' standard industrial touch screen display weight and metal detection, easy to operate, is the new industry standard.
Mechanical character
It combines a metal detector with an inspection scale and detects the weight and metal in the final step of the internal packaging. It improves the safety and reliability of production and saves production space.
Technical specification
| Model | JW-GC212 | JW-GC215 | JW-GC315 | JW-GC320 |
| Identify Code | GC212-1-1 | GC215-1-1 | GC315-1-1 | GC320-1-1 |
| Protection Class | IP54/IP66 | |||
| Speed | 32-52m/min | |||
| Reject Method | Air blowing/Air-reject/Pneumatic pusher/Slide type | Pneumatic pusher/Slide type | ||
| Max Package Size(mm) | 300(W)x120(H) | 300(W)x150(H) | 400(W)x150(H) | 400(W)x200(H) |
| Sensitivity(mm) | Fe:φ0.8 Sus:φ1.5 | Fe:φ1.0 Sus:φ2.0 | Fe:φ1.0 Sus:φ2.0 | Fe:φ1.2 Sus:φ2.5 |
| Power Requirement | 220V/440W/50/60HZ/2A | 220V/440W/50/60HZ/2A | 220V/660W/50/60HZ/3A | 220V/660W/50/60HZ/3A |
| Packing Dimension(mm) | 1460(L)x1140(W)x1280(H) | 1460(L)x1200(W)x1280(H) | 1940(L)x1540(W)x1360(H) | 2080(L)x1480(W)x1360(H) |
| Gross Weight | 270kg | 290kg | 380kg | 390kg |
Application
Widely used in food, medicine, chemical industry, textile, clothing, toys, rubber, etc. It is the first choice for HACCP in the food industry and GMP in the pharmaceutical industry.
Technology:
A. Through ten years of efforts, we build the technical team with high-quality professional engineers more than 30% in rich industry experience. They are with comprehensive capacity of design and development, manufacturing, marketing, installation and commissioning, technical training, and after-sales service for a fully automatic weighing packaging system.
B. We have a technical team with a rapid response for special projects to meet the different requirements for customers.
C.Kenwei has a rigorous new product development process, which promotes the guidelines for overall mold, internal & external craft, also enhances the consistency and stability of machine quality.
Product customization:
A. We have a technical team with a rapid response for special projects to meet the different requirements for customers.
B.10 years of experience in product customization, rich practical application of industry experience
C. According to the actual situation of enterprises, research production characteristics to make a comprehensive assessment of planning programs with high adaptability.
