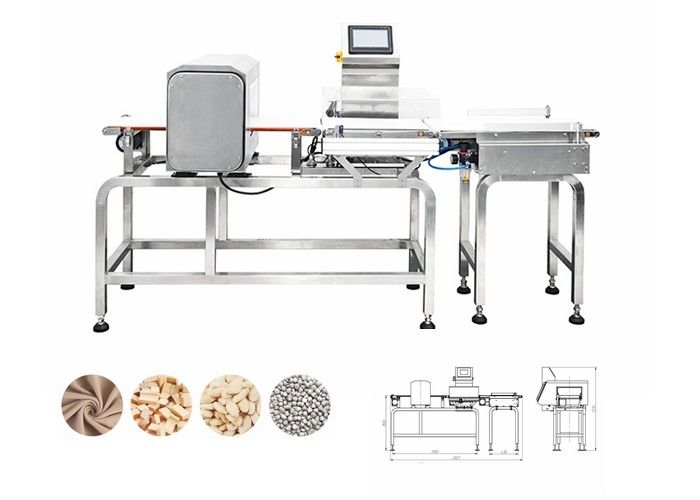

Air Blowing Combined Metal Detecting Machines 32m/Min 52m/Min

Air Blowing Combined Metal Detecting Machines 32m/Min 52m/Min
Air Blowing Combined Metal Detecting Machines 32m/Min 52m/Min

Large Image :  Air Blowing Combined Metal Detecting Machines 32m/Min 52m/Min

Product Details:
Place of Origin: Guangdong,China
Brand Name: Kenwei
Certification: CE,SGS,OIML
Model Number: JW-GC215
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD3600-4700
Packaging Details: Wooden Crate Package
Delivery Time: 20-45 working day
Payment Terms: L/C, T/T
Supply Ability: 750 set per/year
Detailed Product Description
Identify Code: GC215-1-1 Protection Class: IP54/IP65
Speed: 32-52m/min Reject Method: Air Blowing/Air-reject/Pneumatic Pusher/Slide Type
Sensitivity(mm): Fe:φ1.0 Sus:φ2.0 Power Requirement: 220V/440W/50/60HZ/2A
Packing Dimension(mm): 1460(L)x1200(W)x1280(H) Gross Weight: 290kg
High Light:

32m/min Combined Metal Detecting Machines

,

Air Blowing Metal Detecting Machines

,

Ip54 Automatic Metal Detector

High Accuracy Combined Check Weigher And Metal Detector For Food,Pharmaceutical,Chemical



Combine metal detector and weight scale to check weight and metal missing on one machine, effectively reduce footprint and improve product safety. Gold inspection and reinspection machine can be widely used in food, medicine, chemical industry, textile and other fields of weight and metal detection. Products have passed the CE certificate, PA/MC certificate, OIML certificate, GSG enterprise qualification certificate, widely used in food, medicine, chemical, daily and other fields.



Features

1. Detachable belt design, easy to clean and maintain.
2. Independent weight and metal automatic dumping device.
3. Three speed options for touch screen, suitable for different packaging lines and different packaging speeds.
4. 32 languages to choose from, 7' standard industrial touch screen display weight and metal detection, easy to operate, is the new industry standard.

Mechanical character

It combines a metal detector with an inspection scale and detects the weight and metal in the final step of the internal packaging. It improves the safety and reliability of production and saves the production space.
 Air Blowing Combined Metal Detecting Machines 32m/Min 52m/Min 0


Technical specification


ModelJW-GC212JW-GC215JW-GC315JW-GC320
Identify CodeGC212-1-1GC215-1-1GC315-1-1GC320-1-1
Protection ClassIP54/IP66
Speed32-52m/min
Reject MethodAir blowing/Air-reject/Pneumatic pusher/Slide typePneumatic pusher/Slide type
Max Package Size(mm)300(W)x120(H)300(W)x150(H)400(W)x150(H)400(W)x200(H)
Sensitivity(mm)Fe:φ0.8 Sus:φ1.5Fe:φ1.0 Sus:φ2.0Fe:φ1.0 Sus:φ2.0Fe:φ1.2 Sus:φ2.5
Power Requirement220V/440W/50/60HZ/2A220V/440W/50/60HZ/2A220V/660W/50/60HZ/3A220V/660W/50/60HZ/3A
Packing Dimension(mm)1460(L)x1140(W)x1280(H)1460(L)x1200(W)x1280(H)1940(L)x1540(W)x1360(H)2080(L)x1480(W)x1360(H)
Gross Weight270kg290kg380kg390kg



Application

Widely used in food, medicine, chemical industry, textile, clothing, toys, rubber, etc. It is the first choice for HACCP in the food industry and GMP in the pharmaceutical industry.
Air Blowing Combined Metal Detecting Machines 32m/Min 52m/Min 1



Technology:



A. Through ten years of efforts, we build the technical team with high-quality professional engineers more than 30% in rich industry experience. They are with comprehensive capacity of design and development, manufacturing, marketing, installation and commissioning, technical training, and after-sales service for a fully automatic weighing packaging system.



B. We have a technical team with a rapid response for special projects to meet the different requirements for customers.



C.Kenwei has a rigorous new product development process, which promotes the guidelines for overall mold, internal & external craft, also enhances the consistency and stability of machine quality.





Product customization:



A. We have a technical team with a rapid response for special projects to meet the different requirements for customers.



B.10 years of experience in product customization, rich practical application of industry experience



C. According to the actual situation of enterprises, research production characteristics to make a comprehensive assessment of planning programs with high adaptability.
