Product Details:
Payment & Shipping Terms:
|
| Identify Code: | GL2415-1-1 | Protection Class: | IP54/IP66 |
|---|---|---|---|
| Speed: | 15-35m/min | Max Package Size(mm): | With: 240 Mm Hight Adjustable:20-150 Mm |
| Sensitivity(mm): | Fe: φ1.5 Sus:φ2.5 | Packing Dimension(mm): | 1570(L)x880(W)x1490(H) |
| Gross Weight: | 170kg | ||
| High Light: | Aluminum Foil Metal Detecting Machines,7in Color Screen Metal Detecting Machines,IP54 Aluminum Foil Metal Detector |
||

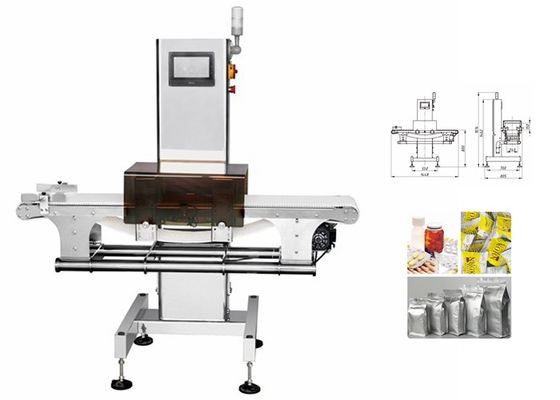

Metal detectors for food provide effective protection against metals (Fe, Sus, etc.). They can be installed in every step of the production process and can be used for many different applications, e.g. for the inspection of bread and bakery products, meat and sausage product, fruit, vegetables, dairy products, spices, sugar, etc. With levels of sensitivity, immunity to interference, and response speeds designed to satisfy the strictest quality control requirements of foil and aluminum packaged products, the JW-GL2415's wide bandwidth allows maximum-sensitivity operation at both high and low transit speeds and is suitable for a wide variety of products.
Features
1. Equipped with a 7-inch color screen, pre-installed operation help menu, convenient for human-machine exchange of coordination and learning, according to the characteristics of materials for intelligent sampling learning function.
2. High sensitivity sensor application plus integrated control method, effectively solve the aluminum film, aluminum foil packaging products with magnetic metal foreign material detection capacity.
3. The use of 32-bit microprocessors, ultra-strong digital signal analysis, and processing, improve the sensitivity of the system, anti-jamming, and long-term operation stability.
4. Data can be backed up via USB.
5. Support software upgrades for easy system maintenance.
Mechanical character
1. Custom plastic chain board, reduce the source of interference, run smoothly, to ensure the detection sensitivity of the whole machine, disassembly maintenance more convenient.
2. Stainless steel all-in-one frame, simple and beautiful, cleaning and maintenance more convenient.
3. Positive and negative transport design, flexible docking packaging production line matching requirements.
4. Built-in high sensitivity sensors can effectively shield aluminum film packaging products that come with the signal, accurately determine the packaging of magnetic metal foreign material.
5. Selection and culling of a variety of undesirable products can be used with options.
6. It is suitable for the detection of aluminum foil packaging products: coffee bags, peanuts, dried meat, candy, chocolate, and other materials. It is used for the detection of metal foreign objects in food, medicine, cosmetics, key products, chemical industry, and other industries. Material packaging status can be in bulk, bag, bottle, box, etc.
Technical specification
| Model | JW-GL2415 |
| Identify Code | GL2415-1-1 |
| Protection Class | IP54/IP66 |
| Speed | 15-35m/min |
| Max Package Size(mm) | Width:240mm Height Adjustable:20-150mm |
| Sensitivity(mm) | Fe:φ1.5 Sus:φ2.5 |
| Power Requirement | 220V/180W/50/60Hz/0.8A |
| Packing Dimension(mm) | 1570(L)x880(W)x1490(H) |
| Gross Weight | 170kg |
