| Identify Code: | G5020-1-1 | Protection Class: | IP54/IP66 |
|---|---|---|---|
| Speed: | 30m/min | Max Package Size(mm): | 500(W)x200(H) |
| Sensitivity(mm): | Fe: φ1.2 Sus:φ2.5 | Power Requirement: | 220V/180W/50/60HZ/1A |
| Packing Dimension(mm): | 1450(L)x1110(W)x1160(H) | Gross Weight: | 260kg |
| High Light: | 60HZ Metal Detecting Machines,φ2.5 Metal Detecting Machines,φ2.5 metal detecting devices |
||

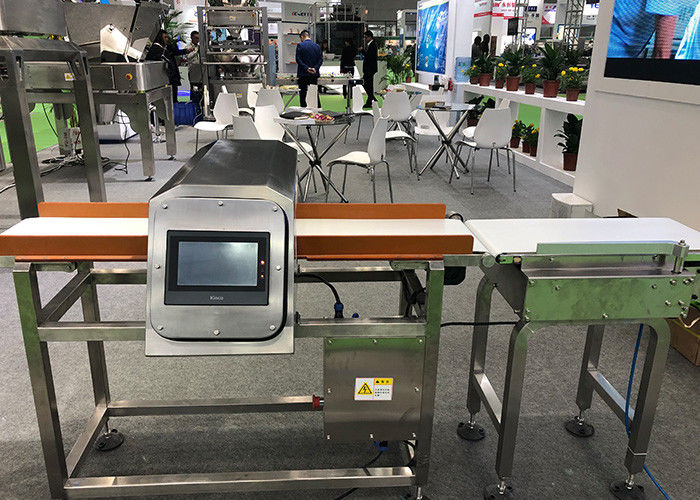

Horizontal Metal Detector Machines Used For Food, Pharmaceutical Industry
The horizontal metal detector adopts advanced digital processing technology and can identify various magnetic and non-magnetic metals in the product. It is suitable for food, pharmaceutical, textile and other industries. It is also a gold inspection equipment for food industry HACCP certification and pharmaceutical industry GMP certification. All stainless steel waterproof design, removable belt, simple and convenient.
Features
1. 32 kinds of language options, 7-inch standard industrial touch screen, reshape the industry new standards.
2. Adopt the principle of the balanced coil to achieve full coverage of signals in the detection area without blind spots.
3. Adopt a number of digital processing technologies and intelligent algorithms, the functions are more comprehensive, and the detection accuracy and stability are improved.
4. The phase adjustment technology is adopted to suppress the signal interference of the product itself.
5. Digital control motherboard, the performance is more stable and reliable, with product automatic setting function, visual detection waveform, debugging is simple and effective.
6. Large storage space, realize the storage of various data such as product parameters, production records, and alarm records.
7. Multi-level user safety management to prevent unauthorized personnel from changing product detection parameters.
8. All stainless steel waterproof design, removable belt design, simple and convenient maintenance.
Mechanical character
Using advanced digital processing technology, it can identify various magnetic and non-magnetic metals in the product, full-color touch screen, can easily achieve human-machine dialogue, ultra-high sensitivity, and stability, a variety of rejection mechanisms can be selected, effectively eliminate production and processing Entrap or omit metal in the product.
Technical specification
| Model | JW-G3012 | JW-G4015 | JW-G4025 | JW-G5020 |
| Identify Code | G3012-1-1 | G4015-1-1 | G4025-1-1 | G5020-1-1 |
| Protection Class | IP54/IP66 | |||
| Speed | 30m/min | |||
| Max Package Size(mm) | 300(W)x120(H) | 400(W)x150(H) | 400(W)x250(H) | 500(W)x200(H) |
| Sensitivity(mm) | Fe: φ0.8 Sus:φ1.5 | Fe: φ1.0 Sus:φ2.0 | Fe: φ1.5 Sus:φ3.0 | Fe: φ1.2 Sus:φ2.5 |
| Power Requirement | 220V/180W/50/60HZ/0.8A | 220V/180W/50/60HZ/0.8A | 220V/180W/50/60HZ/0.8A | 220V/220W/50/60HZ/1A |
| Packing Dimension(mm) | 1450(L)x890(W)x1080(H) | 1450(L)x1010(W)x1110(H) | 1450(L)x1010(W)x1210(H) | 1450(L)x1110(W)x1160(H) |
| Gross Weight | 200kg | 230kg | 240kg | 260kg |
Application
It can be widely used in food, pharmaceutical, chemical, textile, clothing, toys, rubber, and other fields, is the food industry HACCP certification and pharmaceutical industry GMP certification of gold metal detector equipment.
Kenwei independently researched and developed both standard and high amplitude vibrators. The vibration time and vibration amplitude of each vibrator can be automatically adjusted to optimize the material flow. Multi-head weigher central chassis is made from 2.5mm thickness stainless plate and strengthened structurally with internal strengthening rib. The AD conversion module combines technical modification with anti-interference technology to effectively minimize various vibration interference and ensure the accuracy of the whole machine.
Having a high-quality team with more than 30% professional technicians, which ensures our comprehensive capacity from R&D, manufacturing, marketing, installation, technical training to after-sales service for the complete automatic weighing packaging system.
