Product Details:
Payment & Shipping Terms:
|
| Identify Code: | G5020-2-1 | Protection Class: | IP54/IP66 |
|---|---|---|---|
| Speed: | 30m/min | Max Package Size(mm): | 500(W)x200(H) |
| Sensitivity(mm): | Fe: φ1.2 Sus:φ2.5 | Options: | Dimple Plate/Timing Hopper/Printer/Reject Device |
| Packing Dimension(mm): | 1470(L)x1050(W)x1410(H) | ||
| High Light: | IP66 Metal Detecting Machines,2A Metal Detecting Machines,IP66 metal detecting equipment |
||

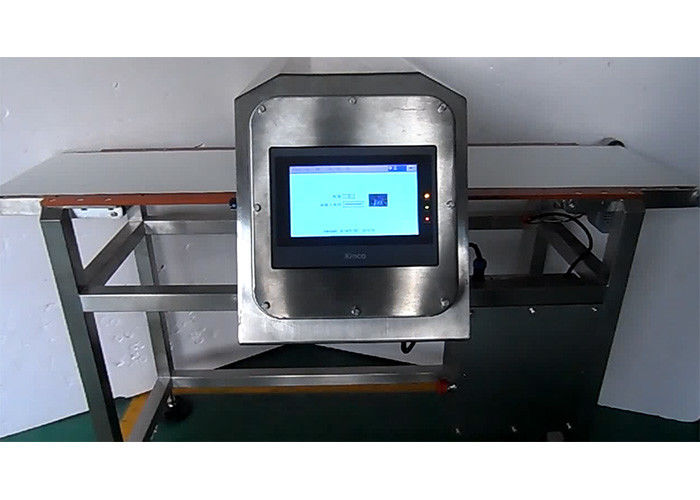

Horizontal Automaticl Metal Detector With Conveyor Belt For Food Processing Industry
The second-generation multi-frequency metal detector adopts multi-frequency technology to adapt to different types of products to be tested. It has a 7-inch full-color touch screen, a pre-installed operation help menu, and no user operation manual. Special conveyor belt can minimize interference sources. Can effectively shield the signal of the aluminum film packaging products, accurately determine the magnetic metal foreign objects in the packaging products
Features
1. Backup data via USB.
2. The software has been upgraded and system maintenance can be performed easily.

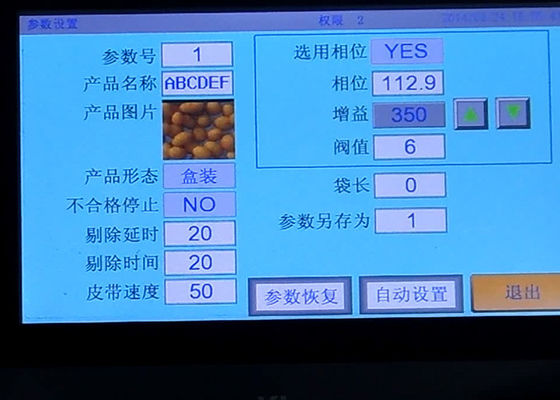

3. 7-inch full-color touch screen, pre-installed operation help menu, no user manual required.
4. Multi-frequency technology adapts to different types of products, and the versatility is stronger.
5. In the automatic parameter setting stage, the system can select the best frequency according to different product characteristics.
6. Support multiple working modes, according to the water content and quantity of the material, the detection sensitivity can be improved to the greatest extent.
7. The use of 32-bit microprocessor with powerful digital signal analysis and processing capabilities improves the system's sensitivity, anti-interference ability and long-term stability.
Mechanical character
1. Can provide a variety of rejection methods.
2. Stainless steel integrated frame, simple and beautiful, easy to clean and maintain.
3. The high-sensitivity sensor built into the detector can effectively shield the signal of aluminum film packaging products and accurately determine the magnetic metal foreign objects in the packaging.
4. The special conveyor belt can minimize the interference source, make the machine run smoothly, and ensure the detection sensitivity, and it is more convenient to disassemble and maintain.
Technical specification
| Model | JW-G5020 |
| Identify Code | G5020-2-1 |
| Protection Class | IP54/IP66 |
| Speed | 30m/min |
| Max Package Size(mm) | 500(W)x200(H) |
| Sensitivity(mm) | Fe: φ1.2 Sus:φ2.5 |
| Power Requirement | 220V/400W/50/60Hz/2A |
| Packing Dimension(mm) | 1470(L)x1050(W)x1410(H) |
| Gross Weight | 200kg |
Application
It is suitable for industries such as food, medicine, spices, plastics, crafts, electronics, toys and other metal detection and classification. Especially suitable for flour food, vegetable food, frozen food, sugar food, pickles, etc.
Company profile
Guangdong Kenwei Intellectualized Machinery Co., Ltd, is currently a large production base of multihead weighers. As a professional manufacturer, we devote to R&D and manufacturing of multihead weighers, linear weighers, check weighers, metal detectors with high speed and high accuracy. We also provide customers with complete automatic weighing and packaging systems to meet the various customized requirements.
KENWEI, located in Hi-tech Industrial Zone, owns a modern workshop over 21000m2 with an annual production capacity of more than 5,000 sets of multihead weigher. We have a high-quality team that professional technicians more than 30% with comprehensive capacity from design and development, manufacturing, marketing, installation and commissioning, technical training, after-sales services, and providing automatic weighing packaging system customization. With the development of international markets, more and more marketing and service networks are established all over the world. We won the trust and good reputations for good and fast services, which also help us to establish a good brand image in the packaging machinery industry. We are now selling machines to more than 100 countries in the world.
Having a high quality and R&D lab in the industry, our quality department covers 16 inspection points such as incoming materials checking, routing inspection, QE, pre-aging, and post-aging inspection, finishing product inspection, and a complete quality management system with restricted control of upper and lower processes. Our products passed the environment simulation test, frequency, waterproof test, salt spray test, amplitude, and elastic stress-strain test, functional simulation test, 7*24 hours continuous aging test, and so on. The core components such as circuit boards and touch screens are all passed for nonstop aging test for more than 72 hours at 50℃ environment because we devote ourself to manufacturing craftsmanship products with high quality. The failure rate of our products is less than 0.5% within 1 year and less than 1% within 2 years.
Kenwei independently researched and developed both standard and high amplitude vibrators. The vibration time and vibration amplitude of each vibrator can be automatically adjusted to optimize the material flow. Multi-head weigher central chassis is made from 2.5mm thickness stainless plate and strengthened structurally with internal strengthening rib. The AD conversion module combines technical modification with anti-interference technology to effectively minimize various vibration interference and ensure the accuracy of the whole machine.
