Product Details:
Payment & Shipping Terms:
|
| Identify Code: | A14-2-3D | Weighing Range: | 10-1500g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 50P/M |
| Hopper Volume: | 2.5L | Control Panel: | 10.1”Touch Screen |
| Options: | Timing Hopper/Printer/Reject Device | Packing Dimension(mm): | 1750(L)x1130(W)x1450(H) |
| Gross Weight: | 500kg | Power Requirement: | 220V/1500W/ 50/60Hz/10A |
| Driving System: | Step Motor | ||
| High Light: | raw chicken 14 Head Multihead Weigher,108g 14 Head Multihead Weigher,108g automatic multihead weigher |
||

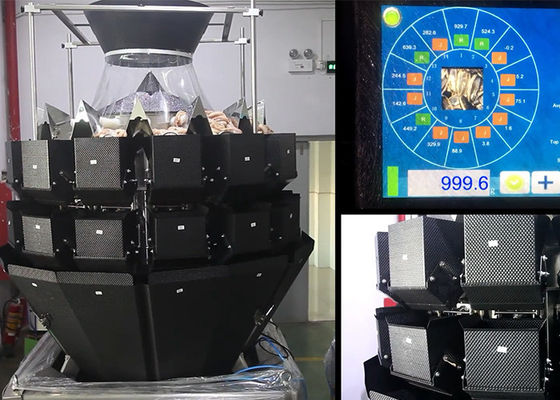

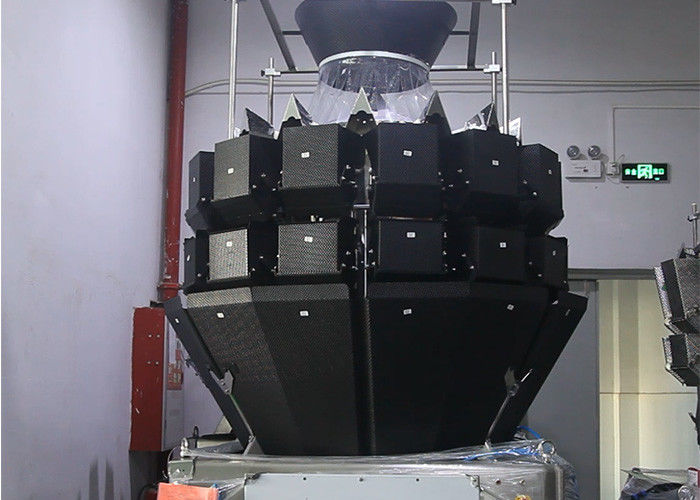

14 Head meat mulithead weigher For weighing raw chicken ,pork, beef
The 14-head screw feeding combination scale replaces the traditional vibrating feeding scheme with a screw feeding scheme, and is more suitable for viscous materials such as raw chicken, pork, duck, beef, lamb and other super viscous meat. The meat combination weigher adopts IP65 waterproof chassis, and the part that contacts the material adopts template material, and the cutting angle makes the material transportation smoother.Products have passed CE certificate, PA / MC certificate, OIML certificate, and GSG enterprise qualification certificate.
Features
1. High-precision, high-standard special load cell.
2. Many languages are available for the global market.
3. No product automatic pause function can improve weighing stability.
4. Program recovery function can reduce operation failures and support multi-segment weight calibration.
5. 100 program capacity can meet various weighing requirements, and user-friendly help menu helps simplify operation.
Mechanical character
1. A unified design standard helps to better exchange spare parts.
2. The drying device is an optional part, which effectively prevents the electronic components from being damaged due to moisture.
3. Screw feeding instead of traditional vibrator feeding is more suitable for viscous materials.
4. Stable actuator shell structure makes the hopper run more stable and the reading accuracy is higher. The integrated chassis and seat enhance the strength of the machine and make the hopper settling time shorter.
5. IP65 waterproof casing, the material contact part and the concave plate, the 60° discharge chute makes the material fall smoothly.
Technical specification
| Model | JW-A14 |
| Identify Code | A14-2-3D |
| Weighing Range | 10-1500g |
| Accuracy | X(0.5) |
| Max Speed | 50P/M |
| Hopper Volume | 2.5L |
| Control Panel | 10.1” Touch Screen |
| Options | Timing Hopper/Printer/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 220V/1500W/50/60Hz/10A |
| Packing Dimension(mm) | 1750(L)x1130(w)x1450(H) |
| Gross Weight | 500kg |
Application
It's suitable for weighing the sticky material, such as chicken, pork, duck, fish, beef, and so on.
Company profile
Guangdong Kenwei Intellectualized Machinery Co., Ltd, is currently a large production base of multihead weighers. As a professional manufacturer, we devote to R&D and manufacturing of multihead weighers, linear weighers, check weighers, metal detectors with high speed and high accuracy. We also provide customers with complete automatic weighing and packaging systems to meet the various customized requirements.
More than 10 years, we have been adhering to "stability is the key to save" and "professional manufacturing, excellent quality, integrity management" these concepts, and we will make effort to combine weighing packaging technology with advanced automated production systems together, thus create more stable and efficient automatic weighing and packaging systems. Also, we make an effort to promote industrial automation, production cost savings, improve production efficiency, and make unremitting efforts to be an innovative and respected global enterprise.
Specialized in the production of automatic weighing and packaging machinery for 14 years, we devote ourselves to the complete solution of automatic packaging. Now we become the professional multihead weigher (linear weigher/check weigher/metal detector etc ) manufacturing enterprise with large production capability and wide influence in the world. We have successively won the “Guangdong Industry-University-Research Science and Technology Project Award”, “high technology enterprise” , “Technology Innovation Award” in Chinese food processing and packaging industry, Ringier Multihead Combination Weighing Technology Innovation Award, a number of “Utility Model Patent Certificate” and many other honorary certificates.
If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem
