Product Details:
Payment & Shipping Terms:
|
| Identify Code: | GX80-1-1 | Protection Class: | IP54/IP65 |
|---|---|---|---|
| Speed: | Free Falling Speed | Checking Size (diameter ): | φ80mm |
| Sensitivity(mm): | Fe: φ0.8 Sus:φ2.0 | Power Requirement: | 220V/1200W/50/60HZ/0.6A |
| Packing Dimension(mm): | 800(L)x650(W)x490(H) | Gross Weight: | 44kg |
| High Light: | Granules throat metal detector,φ80mm throat metal detector,φ80mm metal detecting devices |
||

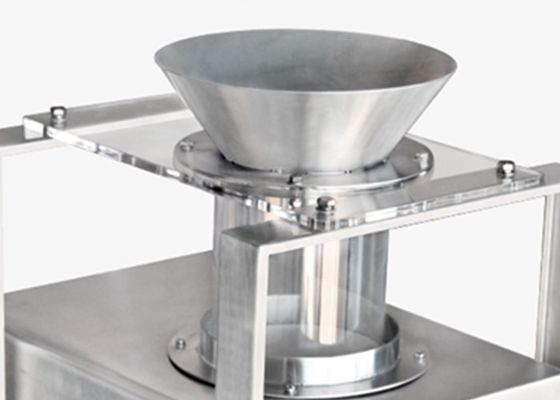

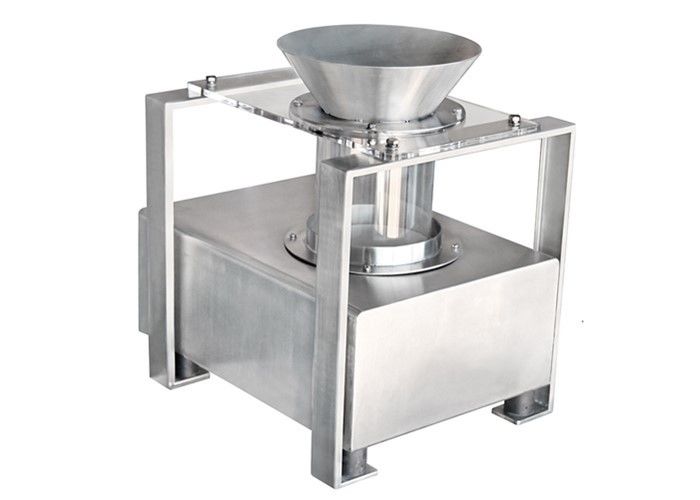

Throat Metal Detector Machine For Checking Powder, Granules Materials
The throat metal detector is used to detect all kinds of powder, bulk materials, and sheet materials. It is suitable for installation in the free-fall environment such as the bottom of the combination weigher and the inlet of the vertical packaging machine. Split design, the electric box is separated from the probe, which is convenient for manual operation. There are many options for the size of the detection port to meet your needs.
Features
Suitable for being fixed between the bottom of the weigher and the top of VFFS feeding funnel, or other dropping conditions.
Mechanical character
1. See technical specifications for the detecting sizes. Thin body design, save space.

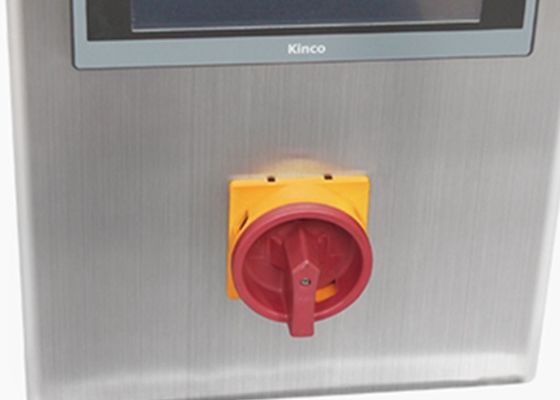

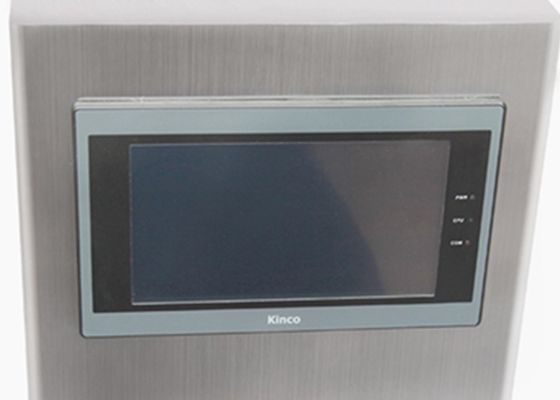

2. Separated detector head and controller design, easy operate.
Technical specification
| Model | JW-GX80 | JW-GX120 | JW-GX150 | JW-GX200 | JW-GX250 |
| Identify Code | GX80-1-1 | GX120-1-1 | GX150-1-1 | GX200-1-1 | GX250-1-1 |
| Protection Class | IP54/IP66 | ||||
| Speed | Free Falling Speed | ||||
| Checking Size (diameter ) | φ80mm | φ120mm | φ150mm | φ200mm | φ250mm |
| Sensitivity(mm) | Fe:φ0.8 Sus:φ2.0 | Fe:φ1.2 Sus:φ2.5 | Fe:φ1.5 Sus:φ3.0 | Fe:φ2.0 Sus:φ3.5 | Fe:φ2.5 Sus:φ3.5 |
| Power Requirement | 220V/1200W/50/60Hz/0.6A | ||||
| Packing Dimension(mm) | 800(L)x650(W)x490(H) | 800(L)x700(W)x530(H) | 850(L)x750(W)x520(H) | 860(L)x900(W)x590(H) | 1000(L)x1000(W)x650(H) |
| Gross Weight | 44kg | 46kg | 54kg | 65kg | 75kg |
Application
Applied for checking powders, granules, and sheet materials.
Advantages: The main advantage is reflected in weighing accuracy, which indicates that the average error between actual weight and displayed weight is smaller, it could help customers save materials; The same interval time for hopper doors repeat open and close make vibration torque consistency, which makes the mechanical structure mutual friction loss is minimized and the machine can be in long-term stable operation.
Principle: "stable time development model" is through the accurate calculation and controlling of hopper motor time, linear vibrator delay time, vibrator operation time, etc to ensure sensor reads the current weight after setting stable time when each time material fills into the weighing hopper, which maximum to avoid interference from machine shaking since the stable time is inconsistent leading to the vibration mode torque are the difference.
Molds and components: Key components such as hoppers, vibrating pans, waterproof cover are made by high-precision molds, which have high consistency and interchangeability; Sensors we use is from Japan and Germany well-known brand; Circuit board is in excellent industrial-standard design, which the chip selection, PCB design, and protection are based on the industrial-grade materials and the production process.
