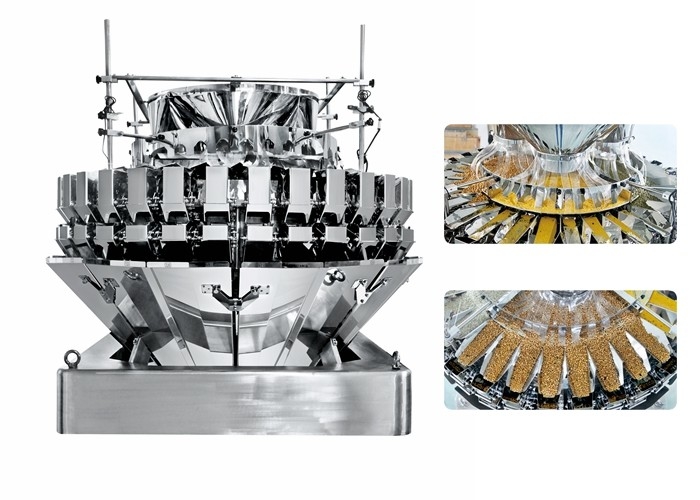

32 Heads Mini Mixing Combination Weigher For Weighing Nuts Packing Machine

32 Heads Mini Mixing combination Weigher For Weighing Nuts Packing Machine

32 head mixing weigher packing machine is designed to automatically weigh, mix, and dispense 2, 3,4, and 4 products at a time. 32 head multihead weighing machine to mix different products and dispense. It is suitable for weighing and mixing small granules, such as nuts, candy, frozen food, and so on. Integral machine frame and machine cabinet contribute to more stability and higher accuracy. A stable actuator design reduces mechanical vibration and improves load cell value accuracy. Uniform design standards, and mold processing, contribute to better interchangeability for spare parts.

Features

1. Timing Hoppers & Dimple plate optional.
2. The weight of the mixture can be automatically compensated by the last material.
3. Adopt high precision and high standard special sensors.
4.  Intelligent fault alarm prompts make maintenance more convenient.
5. The high-speed asynchronous discharge function, effectively prevents material blocking.
6.  Modbus industry-standard communication protocol, realizing the integration of the interface between the combined balance and the packaging machine.
7. Can used for 2 in 1, 3 in 1, and 4 in 1 mixing products.
8. 32 head hopper combinations, higher weighing accuracy.

Mechanical character

1. The upper storage funnel is divided into weight two different products.
2. An Independent main vibration machine is used to control the feeding thickness of different materials.
3. A stable aluminum shell structure makes the hopper more stable in operation and more accurate in reading, the integral chassis, and middle seat enhance the strength of the machine so that the hopper stability time is shorter.
4.  Another 24-head mixed miniature and 32-head 4-head mixed type are optional.
5.  The integral machine frame and machine cabinet contribute to more stability and higher accuracy.
6. Unified design standards and mold making process make each part more interchangeable.
7. The mixed 32 heads weigher is designed with 32 weighing buckets and each feeding lane performs individual vibration to separately control the product feeding thickness.

8. The max speed is 60X4P/M.

Technical specification

Application

Suitable for quantitative weighing of granular materials, tea leaves, Chinese herbal medicine, seeds, beans, coffee beans, chocolate beans, nuts, monosodium glutamate, chicken essence, and other small quantities.

Products

A.Products: Currently only a few combination weigher manufacturing enterprises such as Ishida, Kenwei use a "stable time development model" in program design and development. This development model is the core element to ensure weigher be in long-time stable operation and make material saving maximize.

B. Advantages: The main advantage is reflected in weighing accuracy, which indicates that the average error between actual weight and displayed weight is smaller, it could help customers save materials; The same interval time for hopper doors repeat open and close make vibration torque consistency, which makes the mechanical structure mutual friction loss is minimized and the machine can be long-term stable operation.

C.Accuracy: Taking into consideration the mode of the main vibrator and linear vibrator and vibration absorption ability of the framework that has an effect on weigher accuracy, Kenwei independent research and develop both standard and high amplitude vibrators to meet the needs of different materials. Also control the vibrating time and amplitude separately by control systems to automatically adjust the linear vibrator amplitude, which makes the material flow optimization; About the middle base of the machine case, we always use a 2.5mm-3.0mm stainless steel sheet and strengthen the internal structure by providing reinforcement to ensure the machine's rigidity. Some models take the machine case and middle base integrated, through a combination of AD converter module and anti-jamming technology, which effectively reduce the vibrating interference and ensure the accuracy of the machine running.

D.Molds and components: Key components such as hoppers, vibrating pans, waterproof cover are made from high-precision molds, which have high consistency and interchangeability; Sensors we use are from Japan and Germany well-known brand; the Circuit board is in excellent industrial-standard design, which the chip selection, PCB design, and protection are based on the industrial-grade materials and the production process.

E.Individual needs: Kenwei develops a variety of weighers for different materials, including counting weigher (pouch fill into a large bag), noodle weigher, weigher for frozen food, feeding-control weigher, weigher for stick-shaped products, cheese weigher, salad weigher, mixing weigher, etc. The above products can be selected for digital and modular, single or multi discharge chutes, "high precision" and "high speed" can be freely selected, etc., including a self-developed software system in order to better meet the individual needs of different clients.

F.Function: More diverse function, more convenient operation, such as easy cleaning, simulation tests, free output ports, timing hopper for choice, etc.HMI uses standard Modbus protocol, is fully compatible with the industry standard, and easily achieves a real two-in-one packaging machine Interface.
