Product Details:
Payment & Shipping Terms:
|
| Identify Code: | A24-2-2 | Weighing Range: | 5-240g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 60P/M( Mix 4 Products ) |
| Hopper Volume: | 0.5L | Control Panel: | 10.4”Touch Screen |
| Options: | Timing Hopper/Printer/Reject Device | Packing Dimension(mm): | 1800(L)*1250(W)*1100(H) |
| Gross Weight: | 440kg | Power Requirement: | 220V/1500W/50/60Hz/10A |
| Driving System: | Step Motor | ||
| High Light: | Kenwei Combination Weigher,240g Combination Weigher,Kenwei combination scale |
||

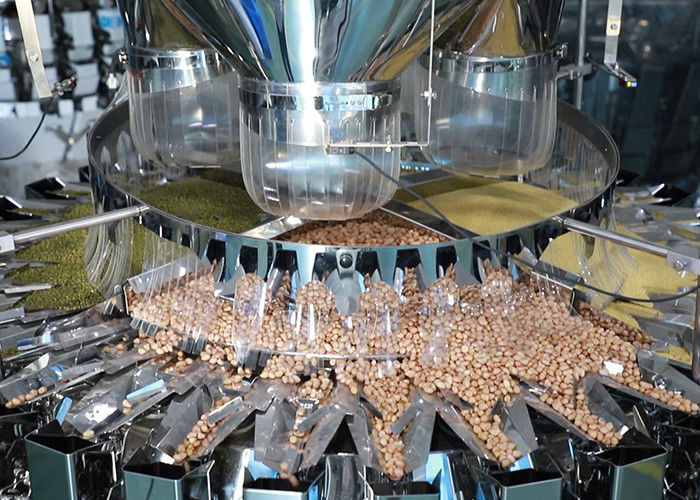

Kenwei Multihead Weigher With 24 Head Hopper For Weighing Candy, Seeds, Coffee Beans
Independent upper hopper is adopted in the 24-head hybrid weighing scale, which can meet the weighing and mixing requirements of various formulations of 2:1, 3:1 and 4:1. The main vibrator was used to separate the feed thickness of the different materials. 24 hoppers, fast feeding speed and high efficiency. Products have passed the CE certificate, PA/MC certificate, OIML certificate, GSG enterprise qualification certificate, widely used in food, medicine, chemical, hardware, daily services and other fields.
Features
1. Intelligent alarm diagnosis.
2. High-speed interleaving dump.
3.Modbus Industrial Communication Protocol.
4. Can be used for two on one, three on one, four on one mixed products.
5. Customized weight sensors with high precision.
6. New modular and CAN bus technology, more efficient and stable.
7. The mixed weight can be automatically compensated by the final product.
Mechanical character
1. The upper funnel is divided into two different products for weighing.
2. The integrated rack and chassis help improve stability and accuracy.
3. Separate the main vibrator and independently control the product thickness.
4. Uniform design standards and mold processing help to better replace spare parts.
5. The stable actuator design reduces mechanical vibration and improves the accuracy of the load cell.
Technical specification
| Model |
JW-A24 |
|
| Identify Code |
A24-2-1 |
A24-2-2 |
| Weighing Range | 5-240g | 5-240g |
| Accuracy | X(0.5) | X(0.5) |
| Max speed |
60P/M( Mix 4 Products ) |
60P/M( Mix 3 Products ) |
| Hopper volume | 0.5L | |
| Control Panel |
10.4” Touch Screen |
|
| Options |
Dimple Plate/Timing Hopper/Printer |
|
| Driving System | Step Motor | |
| Power Requirement |
220V/1500W/50/60Hz/10A |
|
| Packing Dimension (mm) |
1800(L)*1250(W)*1100(H) |
|
| Gross Weight |
440kg |
|
Application
It is suitable for weighing small particles such as seeds, tea, and coffee beans.
Product customization
A. We have a technical team with a rapid response for special projects to meet the different requirements for customers.
B.10 years of experience in product customization, rich practical application of industry experience
C. According to the actual situation of enterprises, research production characteristics to make a comprehensive assessment of planning programs with high adaptability.
Technology:
A. Through ten years of efforts, we build the technical team with high-quality professional engineers more than 30% in rich industry experience. They are with comprehensive capacity of design and development, manufacturing, marketing, installation and commissioning, technical training, and after-sales service for a fully automatic weighing packaging system.
B. We have a technical team with a rapid response for special projects to meet the different requirements for customers.
C.Kenwei has a rigorous new product development process, which promotes the guidelines for overall mold, internal & external craft, also enhances the consistency and stability of machine quality.
