| Identify Code: | A32-2-3 | Weighing Range: | 10-2000g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 60X4P/M |
| Hopper Volume: | 1.6L | Control Panel: | 10.1”Touch Screen |
| Options: | Timing Hopper/Printer/Reject Device | Packing Dimension(mm): | 3000(L)x2100(W)x1400(H) |
| Gross Weight: | 1300kg | Power Requirement: | 220V/2500W/50/60Hz/18A |
| Driving System: | Step Motor | ||
| High Light: | Multi Functional Multihead Weigher Machine,0.5L Hopper Multihead Weigher Machine,Seeds Beans Mixing Combination Weigher |
||

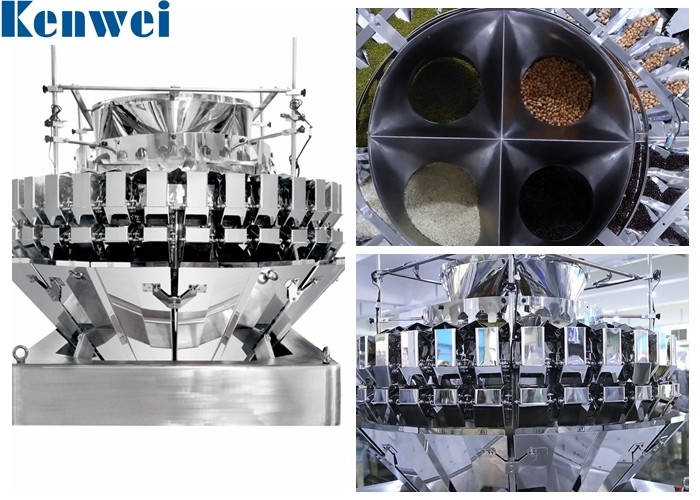

Multi-functional Mini 32 Heads Mixing Multihead Weigher Machine For Seeds Beans With 0.5L Hopper
The multi-functional mini 32 heads mixing weigher adopts a separate upper hopper, which can meet the weighing and mixing of various formulas such as 2 in 1, 3 in 1, 4 in 1. In order to control the feeding thickness of different materials separately, an independent main vibrator is used. The combination of 32 hoppers makes the feeding speed faster, the accuracy higher and the efficiency higher.It is suitable for weighing small granules such as seeds,tea,coffee beans etc.
Features
1. Can meet 2 in 1, 3 in 1, 4 in 1 formula for weighing and mixing.
2. High speed mode up to 160 weights/Min, proportional mixing weighing technology
3. High integrated modular design, technology CAN bus.
4. The weight of the mixture can be automatically compensated by the last material.
5. Using high-precision, high-standard special sensors.
6. Intelligent fault alarm prompt, more convenient maintenance.
7. High-speed asynchronous discharge function, effectively prevent materials from blocking.
8. Modbus industry-standard communication protocol, realize the combination of combination weigher and packaging machine interface.
Mechanical character
1. The upper storage funnel is divided into weight two different products.
2. Separate the main vibrator, control the thickness of the product independently.
3. The integral machine frame and machine cabinet contributes to more stability and higher accuracy.
4. All machinery units are Inter-changeable, easy maintenance and reparation.
5. Stable actuator design reduces the mechanical vibration and improves the load cell value accuracy.
6. Options: mini 24 head mixing weigher and 32 head weigher for mixing 4 products.
Technical specification
|
Model |
JW-A24 | JW-A24 | JW-A32 | JW-A32 |
|
Identify Code |
A24-2-1 | A24-2-2 | A32-2-1 | A32-2-3 |
|
Weighing Range |
5-240g | 5-240g | 5-240g | 10-2000g |
|
Accuracy |
X(0.5) | X(0.5) | X(0.5) | X(0.5) |
|
Max Speed |
60P/M(Mix 4 Products) |
60P/M(Mix 3 Products) |
60P/M(Mix 4 Products) |
60X4P/M(Mix 4 Products) |
|
Hopper Volume |
0.5L | 0.5L | 0.5L | 1.6L |
|
Control Panel |
10.1” Touch Screen | |||
|
Options |
Dimple Plate/Timing Hopper/Printer/Reject Device |
|||
|
Driving System |
Step Motor |
|||
|
Power Requirement |
220V/1500W/50Hz/60Hz/10A | 220V/2500W/50/60Hz/15A | 220V/2500W/50/60Hz/18A | |
|
Packing Dimension(mm) |
1800(L)x1250(W)x1110(H) | 2100(L)x1480(W)x1130(H) | 3000(L)x2100(W)x1400(H) | |
|
Gross Weight |
440kg | 600kg | 1300kg | |
Application
It is suitable for weighing small granules such as seeds, tea, coffee beans, etc.
Specialized in the production of automatic weighing and packaging machinery for 14 years, we devote ourselves to the complete solution of automatic packaging. Now we become the professional multihead weigher (linear weigher/check weigher/metal detector etc ) manufacturing enterprise with large production capability and wide influence in the world. We have successively won the “Guangdong Industry-University-Research Science and Technology Project Award”, “high technology enterprise”, “Technology Innovation Award” in Chinese food processing and packaging industry, Ringier Multihead Combination Weighing Technology Innovation Award, a number of “Utility Model Patent Certificate” and many other honorary certificates.
Having a high quality and R&D lab in the industry, our quality department covers 16 inspection points such as incoming materials checking, routing inspection, QE, pre-aging, and post-aging inspection, finishing product inspection, and a complete quality management system with restricted control of upper and lower processes. Our products passed the environment simulation test, frequency, waterproof test, salt spray test, amplitude, and elastic stress-strain test, functional simulation test, 7*24 hours continuous aging test, and so on. The core components such as circuit boards and touch screens are all passed for nonstop aging test for more than 72 hours at 50℃ environment because we devote ourself to manufacturing craftsmanship products with high quality. The failure rate of our products is less than 0.5% within 1 year and less than 1% within 2 years.
