2 Head Linear Weigher Machine 30P/M For Rice

2 Head Linear Weigher Machine 30P/M For Rice
2 Head Linear Weigher Machine 30P/M For Rice

Large Image :  2 Head Linear Weigher Machine 30P/M For Rice

Product Details:
Place of Origin: Guangdong,China
Brand Name: Kenwei
Certification: CE,SGS,OIML
Model Number: JW-AX2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD3500-4200
Packaging Details: Wooden Crate Package
Delivery Time: 20-45 working day
Payment Terms: L/C, T/T
Supply Ability: 700 set per/year
Detailed Product Description
Identify Code: X2-2-1 Weighing Range: 20-3000g
Accuracy: X(1) Max Speed: 30P/M
Hopper Volume: 4.5L Control Panel: 7”Touch Screen
Options: Dimple Plate/Timing Hopper/Printer/Reject Device Gross Weight: 130kg
High Light:

Linear Weigher Machine 30P/M


2 Head Linear Weigher Machine 4. 5L


Rice Multihead Weigher Packing Machine

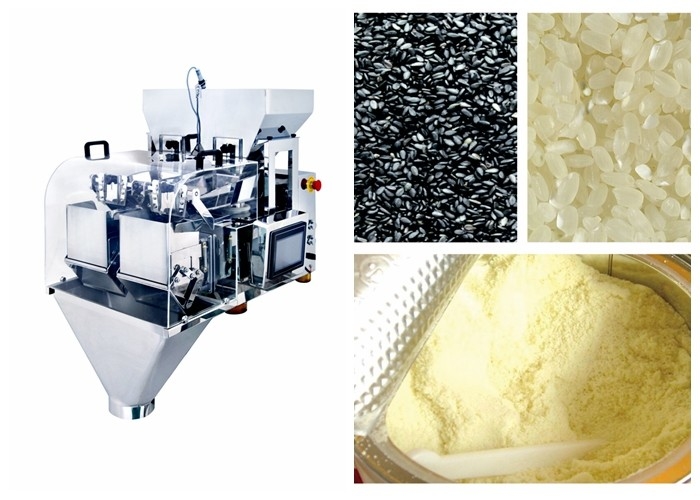

2 Head Linear Weigher Machine 30P/M For Rice



The linear weigher is suitable for the quantitative weighing of powdered, small particles and more uniform materials such as sugar, salt, seeds, rice, sesame, seasoning powder, etc. Not only can weigh single particles or powdered materials, but it also can be weighed at the same time It can measure a variety of different materials, realize the packaging of mixed materials, and there are a variety of models for customers to choose from.A weight range of 20 to 3000g with an accuracy of 0.1 to 3 grams (product dependent).





1. Grand new modular control system.

2. Amplitude can be adjusted automatically.

3. Make mix different products weighing at one discharge.

4. Parameters can be freely adjusted according to production.

5. Adopt stepless vibrating feeding system to make products flow more fluently.



Mechanical character


1. Sanitation with 304S S construction.

2. Rigid design for vibrator and feed pan make feeding strictly correct.

3. Quick Release design for all the contact parts

4. Highly compatible with other packing machines.



Technical specification


Identify Code X1-2-1 X2-2-1 XM2-2-1 X4-2-1 XS4-2-1
Weighing Range 20-1000g 20-3000g 1000-12000g 20-2000g 2-300g
Accuracy X(1) X(1) X(1) X(1) X(1)
Max Speed 10-15P/M 30P/M 25P/M 55P/M 70P/M
Hopper Volume 4.5L 4.5L 15L 3L 0.5L
Parameters Press No. 100 100 100 100 100
Max Products Mixed 1 2 2 4 4
Control Panel 7” Touch Screen
Options Dimple Plate/Timing Hopper/Printer/Reject Device
Power Requirement 220V/700W/50/60HZ/5A 220V/1200W/50/60HZ/6A 220V/1200W/50/60HZ/6A 220V/1200W/50/60HZ/6A 220V/1200W/50/60HZ/6A
Packing Dimension(mm) 860(L)X570(W)X920(H) 920(L)X800(W)X890(H) 1215(L)X1160(W)X1020(H) 1080(L)X1030(W)X820(H) 820(L)X800(W)X700(H)
Gross Weight 80Kg 130Kg 280Kg 160Kg 135Kg



2 Head Linear Weigher Machine 30P/M For Rice 0



It is suitable for weighing slices, rolls, or regular shape products such as sugar, salt, seed, rice, sesame, glutamate, milk powder, coffee, and season powder, etc.


2 Head Linear Weigher Machine 30P/M For Rice 1




Molds and components: Key components such as hoppers, vibrating pans, waterproof cover are made by high-precision molds, which have high consistency and interchangeability; Sensors we use is from Japan and Germany well-known brand; Circuit board is in excellent industrial-standard

design, which the chip selection, PCB design, and protection are based on the industrial-grade materials and the production process.


Individual needs: Kenwei develop a variety of weighers for different materials, including counting weigher (pouch fill into a large bag), noodle weigher, weigher for frozen food, feeding-control weigher, weigher for stick-shaped products, cheese weigher, salad weigher, mixing weigher, etc. The above products can be selected for digital and modular, single or multi discharge chutes, "high precision" and "high speed" can be freely selected, etc., including a self-developed software system in order to better meet the individual needs of different clients.


Function: More diverse function, more convenient operation, such as easy cleaning, simulation tests, free output ports, timing hopper for choice, etc.HMI uses standard Modbus protocol, is fully compatible with the industry standard, and easily achieves a real two-in-one packaging machine Interface.
