Product Details:
Payment & Shipping Terms:
|
| Identify Code: | XM1-2-2 | Weighing Range: | 500-12000g |
|---|---|---|---|
| Accuracy: | X(1) | Max Speed: | 8P/M |
| Hopper Volume: | 15L | Control Panel: | 7”Touch Screen |
| Parameters Press No.: | 100 | Max Products Mixed: | 1 |
| High Light: | Single Head Linear Weigher Machine,Vegetable Linear Weigher Machine,Vegetable single head weigher |
||

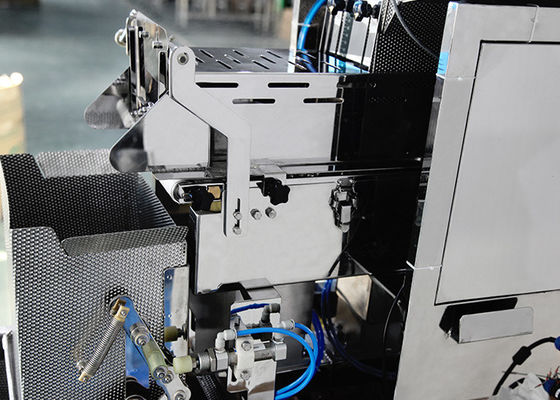

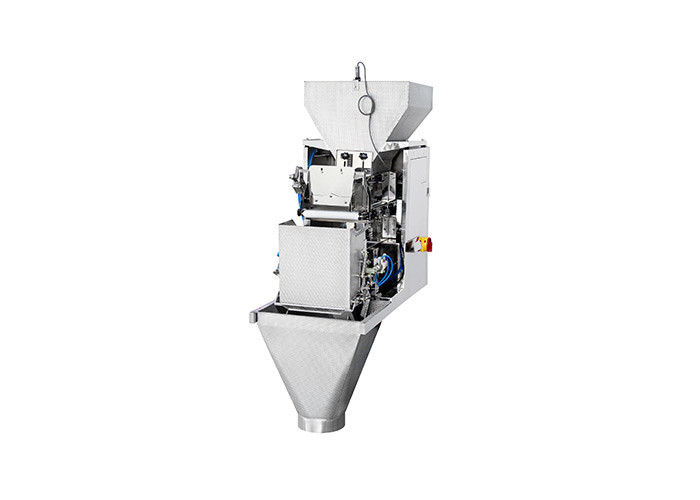

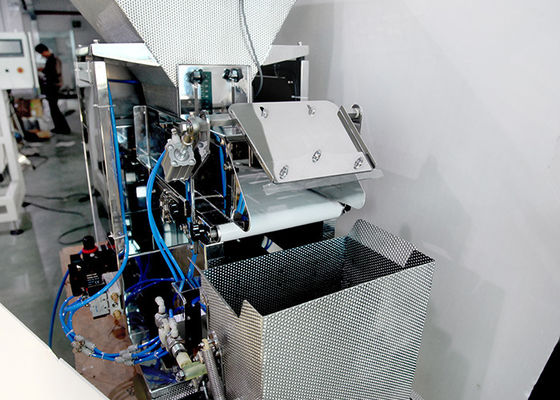

Single Head Belt Linear Weigher Machine For Weighing Vegetable Products
Single head belt weigher is specially customized food-grade conveyor belts, made of stainless steel food-grade materials, which not only meet the different application needs of different materials but also ensure food hygiene and safety. It is suitable for weighing brown sugar, brown sugar, industrial salt, and fresh corn kernels, cauliflower, onions, and other lumps and diced materials.
Features
1. Grand new modular control system.
2. Parameters can be freely adjusted according to production.
3. Adopt the stepless feeding mode to control the flow of materials in real-time to ensure accurate weighing.
Mechanical character
1. The whole machine is made of stainless steel food-grade materials to ensure food hygiene and safety.
2. Custom food grade conveyor belts to meet different application needs of different materials.
3. Easy-to-remove structure for easy maintenance and cleaning.
4. Customized special load cells to improve weighing accuracy.

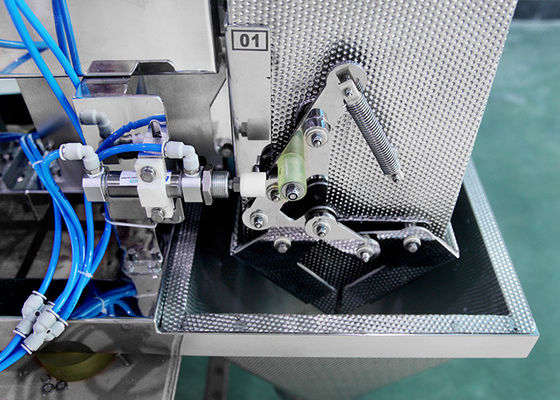

5. Equipped with independent gates, automatically realize the opening and closing of the gate according to the signal feedback.
6. Material contact parts can be quickly disassembled.
Technical specification
| Model | JW-AX1 |
| Identify Code | XM1-2-2 |
| Weighing Range | 500-12000g |
| Accuracy | X(1) |
| Max Speed | 8P/M |
| Hopper Volume | 15L |
| Parameters Press No. | 100 |
| Max Products Mixed | 1 |
| Control Panel | 7” Touch Screen |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device |
| Power Requirement | 220V/250W/50/60Hz/1.2A |
| Packing Dimension(mm) | 1150(L)x700(W)x1090(H) |
| Gross Weight | 200kg |
Application
It is suitable for brown sugar, industrial salt, and other materials with slight viscosity, as well as fresh corn kernels, cauliflower, onion slices, and another block, diced, stem, and other vegetable products.
Domestic and international service
A.2 years warranty: All our customers who buy Kenwei machines will enjoy a two-year warranty. Only high-quality can ensure the stable operation of combination weigher with the extremely low failure rate. From recent statistics, the failure rate of Kenwei machines is less than 0.5% within1year, and failure rate within 2 years is less than 1%.
B. Organization:Kenwei service department is including test group, planning group, door-to-door service groups, etc, mainly to provide commission for specific materials and make commission regularity indicators so that to find out the suitable material for the machine; Also, they are responsible for customer training and online operating skills, including installation manual and maintenance manual provided. Above are customer accepted initiatives.
C.High efficiency: Kenwei has a high efficient service team. When customers encounter problems,98.5% of the problems get a reply within the same day, and spare part is sent within 3 days if needed.
D.Record: Each Kenwei machine has a product code and components number, which has a corresponding configuration, photos, and more machine detailed records so that we can help customers solve problems quickly when problem comes. Also, the technical department makes a modular design for a unit that makes component replacement more simple and fewer troubles.
