Product Details:
Payment & Shipping Terms:
|
| Identify Code: | X1-2-1 | Weighing Range: | 20-1000g |
|---|---|---|---|
| Accuracy: | X(1) | Max Speed: | 10-15P/M |
| Hopper Volume: | 4.5L | Options: | Dimple Plate/Timing Hopper/Printer/Reject Device |
| Gross Weight: | 240kg | Parameters Press No.: | 20 |
| Power Requirement: | 220V/50/60Hz/5A | Packing Dimension(mm): | 860(L)*570(W)*920(H) |
| Max Products Mixed: | 1 | ||
| High Light: | 150g linear weigher packing machine,Single Head linear weigher packing machine,4.5L Hopper single head weigher |
||

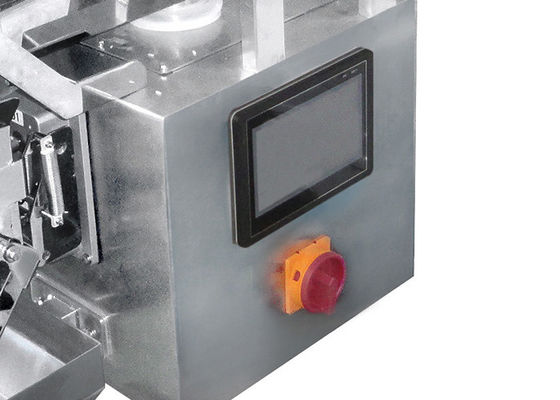

JW-AX1-2-1 single head linear weigher with 4.5L hopper for weighing small granules
The JW-AX1-2-1 single head linear weigher adopt the stepper motor drives the door opening and closing method, which is faster and more stable;The maximum speed of JW-AX1-2-1 single head linear weigher can reach 15 bags/minute, equipped with a large-capacity 4.5-liter hopper, but can be customized for you according to your needs.Suitable for quantitative weighing of relatively uniform materials such as powder and small particles.
Features
1. Grand new modular control system.
2. Adopt stepless vibrating feeding system to make products flow more fluently.
3. Make mix different products weighing at one discharge.
4. Parameters can be freely adjusted according to production.
Mechanical character
1. The operating system is available in multiple languages;
2. A large capacity hopper, the weighing range is larger;
3. All stainless steel 304, 316 body surface materials are optional, IP65 dustproof and waterproof design;
4. Factory parameter setting recovery function, to achieve various parameter program requirements;
5. The amplitude is adjusted automatically, the operation is more convenient;
6. The stepper motor drives the door opening and closing method, which is faster and more stable;
7. The modular control system, easy maintenance, and low cost.
Technical specification
| Model | JW-AX1 |
| Identify Code | X1-2-1 |
| Weighing Range | 20-1000g |
| Accuracy | X(1) |
| Max Speed | 10-15P/M |
| Hopper Volume | 4.5L |
| Parameters Press No. | 20 |
| Max Mixing Products | 1 |
| Power | 700W |
Power Requirement | 220V/50/60Hz/5A |
Packing Dimension(mm) | 860(L)*570(W)*920(H) |
Application
It is suitable for weighing slice, roll, or regular shape products such as sugar, salt, seed, rice, sesame, glutamate, milk powder, coffee, and season powder, etc.
FAQ
Q1: How to know which one packing machine is suitable for us?
You can first tell business representatives which equipment you want to know, what material is the product, how many grams to weigh, and the range of accuracy and speed requirements. Our engineers then recommend suitable packaging machines based on these data and product characteristics.
Q2: How to operate it?
Many languages are available for global markets. There are not only detailed instructions but also machine videos for reference learning.
Q3: Why we should choose your company?
We have many years of industrial production and management experience, professional R & D, sales, after-sales team. It can perfectly solve all the problems that customers encounter from purchase to sale.
Q4: How to cooperate with you?
You only need to contact our business representative, and they will be patient to guide you through the whole process.
Q5: What's your payment way?
T/T by our bank account directly.
Q6: How about the delivery and after-sales service?
All our machines are tailor-made because different clients have different requirements, delivery will be within 20 days for the small multi-head weigher, For the large-scale machine, it takes longer. Warranty:2years(Electric accessories) and free lifetime maintenance.
If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem
Products have passed CE certificate, PA / MC certificate, OIML certificate, and GSG enterprise qualification certificate, widely used in food, medicine, chemical, hardware, commodity fields. We reached strategic cooperation with customers from more than 100 countries and regions around the world, and we will continue to create more economic benefits for our customers.
13 years of experience in product customization and practical industry application. Special program technical team with rapid response. Tailored products and solutions with high pertinence and applicability are delivered after the comprehensive planning and evaluation based on the customer’s actual production situation and usage.
