| Identify Code: | A24-2-2 | Weighing Range: | 5-240g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 60P/M( Mix 4 Products ) |
| Hopper Volume: | 0.5L | Control Panel: | 10.4”Touch Screen |
| Options: | Timing Hopper/Printer/Reject Device | Packing Dimension(mm): | 1800(L)*1250(W)*1100(H) |
| Gross Weight: | 440kg | Power Requirement: | 220V/1500W/50/60Hz/10A |
| Driving System: | Step Motor | ||
| High Light: | Nuts Combination Weigher Packing Machine,24 Heads Nuts Combination Weigher,Mixing Nuts Automatic Multihead Weigher |
||

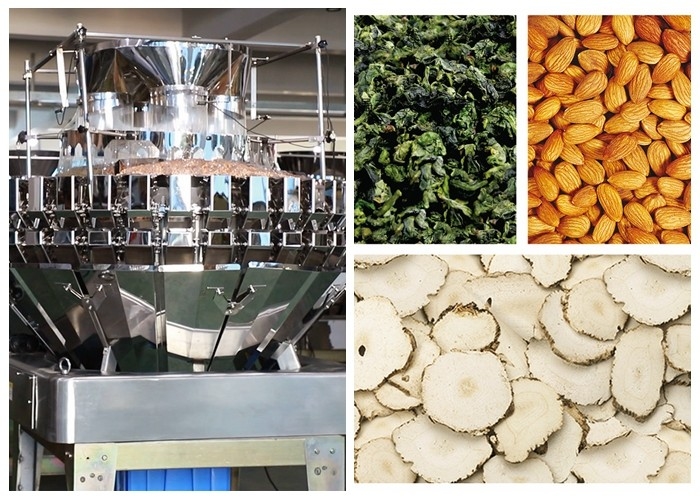

The 24-head combination weigher is ideal for blending frozen foods, vegetables, fruits, confections, snack foods, ingredients, hardware, and more. The 24-head mixing combination scale uses an independent loading hopper, which can meet the weighing and mixing requirements of various formulas, such as 2 in 1, 3 in 1, and 4 in 1. In order to separate the feed thickness of different materials, the main vibrator is used. 24 hoppers make the feeding speed faster and more efficient.
Features
1. Intelligent alarm diagnosis.
2. High-speed interleaving dump.
3. Modbus Industrial Communication Protocol.
4. High-precision and customized weighing sensors.
5. Can be used for 2 and 1, 3 and 4 and 1 mixed products.
6. The final product can automatically compensate the mixed weight.
7. New modular and CAN bus technology, more efficient and stable.
Mechanical character
1. The upper funnel is divided into two different products for weighing.
2. Integrated chassis and chassis help improve stability and accuracy.
3. Separate the main vibrator and control the product thickness independently.
4. Uniform design standards and mold processing help to replace spare parts better.
5. Stable actuator design reduces mechanical vibration and improves the accuracy of the weighing sensor.
6. Food contact parts can be disassembled without tools, easy clean.
7. Multi-function for different weighing modes: mixing 2-4 materials packed into one bag.
8. Easy to clean - the weighers are made entirely of stainless steel, making them incredibly hygienic and easy to clean.
Technical specification
| Model |
JW-A24 |
|
| Identify Code |
A24-2-1 |
A24-2-2 |
| Weighing Range | 5-240g | 5-240g |
| Accuracy | X(0.5) | X(0.5) |
| Max speed |
60P/M( Mix 4 Products ) |
60P/M( Mix 3 Products ) |
| Hopper volume | 0.5L | |
| Control Panel |
10.4” Touch Screen |
|
| Options |
Dimple Plate/Timing Hopper/Printer |
|
| Driving System | Step Motor | |
| Power Requirement |
220V/1500W/50/60Hz/10A |
|
| Packing Dimension (mm) |
1800(L)*1250(W)*1100(H) |
|
| Gross Weight |
440kg |
|
Application
It is suitable for weighing small particles such as seeds, tea, and coffee beans.
Technology:
A. Through ten years of efforts, we build the technical team with high-quality professional engineers more than 30% in rich industry experience. They are with comprehensive capacity of design and development, manufacturing, marketing, installation and commissioning, technical training, and after-sales service for a fully automatic weighing packaging system.
B. We have a technical team with a rapid response for special projects to meet the different requirements for customers.
C.Kenwei has a rigorous new product development process, which promotes the guidelines for overall mold, internal & external craft, also enhances the consistency and stability of machine quality.
Product customization
A. We have a technical team with a rapid response for special projects to meet the different requirements for customers.
B.10 years of experience in product customization, rich practical application of industry experience
C. According to the actual situation of enterprises, research production characteristics to make a comprehensive assessment of planning programs with high adaptability.
