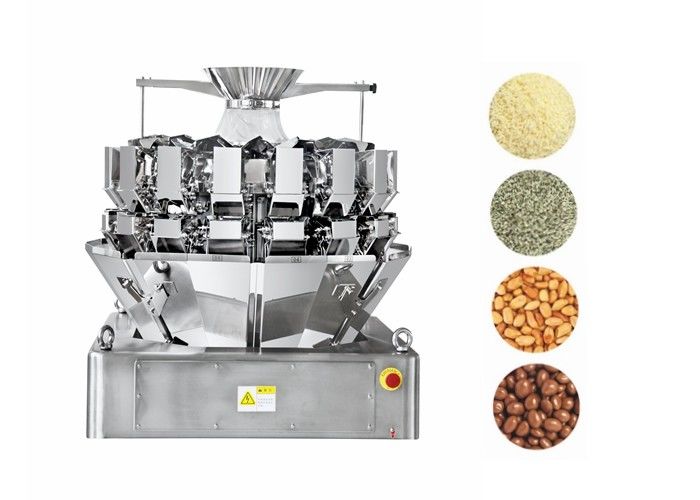

Mini 16 Heads High Speed Combination Weigher

Mini 16 Heads High Speed Combination Weigher
Mini 16 Heads High Speed Combination Weigher

Large Image :  Mini 16 Heads High Speed Combination Weigher

Product Details:
Place of Origin: Guangdong,China
Brand Name: Kenwei
Certification: CE,SGS,OIML
Model Number: JW-A16
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD4500-4900
Packaging Details: Wooden Crate Package
Delivery Time: 20-45 working day
Payment Terms: L/C, T/T
Supply Ability: 300 set per/year
Detailed Product Description
Application: Snack Food Weighing Range: 2-200g
Head: 16 Head Max Speed: 180P/M
Hopper Volume: 0.5L Control Panel: 10.1”Touch Screen
Options: Dimple Plate/Timing Hopper/Printer/Reject Device Power Requirement: 220V/1500W/50/60Hz/10A
High Light:

High Speed Combination Weigher


16 Heads Combination Weigher


Mini Multi Head Scale 180P/M

Mini 16 Heads High Speed Combination Weigher



Product description


It is made of a 304 stainless steel frame and food class buckets. High-quality sensors and integrated modular design, make debugging more convenient, more stable performance, more precision guarantee; collocation parameters and language touch man-machine interface, selection, and parameters in different countries or regions of the flexible setting, more convenient operation, debugging interface fault intelligent visual alarm and self-learning Intelligent control functions.



Product parameters


Model JW-A16
Identify Code A16-2-7
Weighing Range 2-200g
Accuracy x(0.5)
Max Speed 180P/M
Hopper Volume 0.5L
Control Panel 10.1” Touch Screen
Options Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System Step Motor
Power Requirement 220V/1500W/50/60Hz/10A
Packing Dimension(mm) 1250(L)x1070(W)x960(H)
Gross Weight 300kg


Product features


1. Double-layer discharge chute with double high-speed timing hoppers feed packaging machines in turn, surmount the speed problems of discharging chute feed time.

2. Arc-shaped machine body with large O treatment improves the stability and appearance

3. Uniform design standards, and mold processing, contribute to better interchangeability for spare parts.

4. Stable actuator design reduce mechanical vibration and improves the load cell value accuracy.

5. Integral machine frame and machine cabinet contributes to more stability and higher accuracy.



Product advantages


Having a high quality and R&D lab in the industry, our quality department covers 16 inspection points such as incoming materials checking, routing inspection, QE, pre-aging, and post-aging inspection, finishing product inspection, and a complete quality management system with restricted control of upper and lower processes. Our products passed the environment simulation test, frequency, waterproof test, salt spray test, amplitude, and elastic stress-strain test, functional simulation test, 7*24 hours continuous aging test, and so on. The core components such as circuit boards and touch screens are all passed for nonstop aging test for more than 72 hours at 50environment because we devote ourself to manufacturing craftsmanship products with high quality. The failure rate of our products is less than 0.5% within 1 year and less than 1% within 2 years.


Mini 16 Heads High Speed Combination Weigher 0
