Payment & Shipping Terms:
|Identify Code:||XL1-2-1||Weighing Range:||5-50KG|
|Hopper Volume:||50L||Control Panel:||7”Touch Screen|
|Options:||Conveyor Belt /bag Sealer||Gross Weight:||150kg|
|Parameters Press No.:||100||Power Requirement:||220V/80W/50/60HZ/0.4A|
|Packing Dimension(mm):||1250(L)x1150(W)x2280(H)||Max Products Mixed:||1|
50kg Linear Weigher Machine,
Bulk Grains Linear Weigher Machine,
7”Touch Screen Weigher Packing Machine

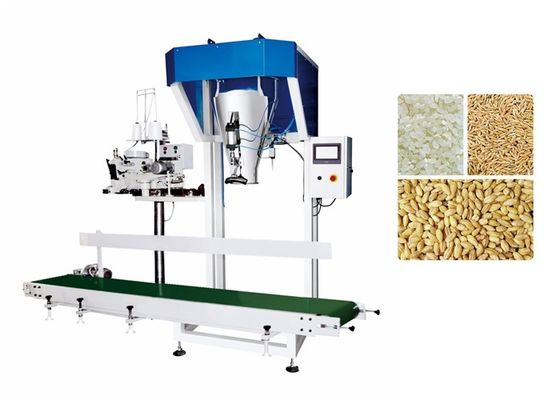

50kg Linear Weigher Machine For Bulk Grains
The single head fluid linear weigher is specially designed for weighing heavy-weight materials, suitable for corn, soybeans, rice, rice, peanuts, and other food and food industries. The operation of the grain scale is simple. The operator only needs to set the bag and touch the travel switch of the bag clamping, and the actions of feeding, filling and unloading the bag are all automatically completed by the quantitative weighing, which is a semi-automatic weighing device.
1. It's suitable for weighing material in bulk volume with high speed and high accuracy.
2. User-friendly HMI can be fast and easy to take and store preselected weighting parameters for different weighing ranges.
3. Easy operating. The operator can simply put on the bag and touch switch then the feeding, filling, and unloading bags can be completed automatically finished.
4. The controller and AD module are in CAN bus communication mode, the independent weighing process carried out by the AD module board, reducing controller communication time, make the weighing result feedback process more quickly.
5. Output ports use free port mode design, having a signal test function, easy to know about the equipment failure.
6. Detailed production records statistics functions.
1. The system uses a high-precision load cell. AD converter module is with operating frequency of 400 times/s, which is high accuracy and good stability.
2. Three feeding levels and special control algorithms make the weighing speed more quickly and higher accuracy.
3. Automatic entrainment structure, convenient artificial fix bags, it's safe and more efficient.
4. Material contact parts are made of food-class stainless steel, more healthy, more environmentally, and easier to wash and maintain.
|Parameters Press No.||100|
|Max Products Mixed||1|
|Control Panel||7” Touch Screen|
|Options||Conveyor Belt /bag sealer|
It's suitable for weighing corn, soybeans, rice, barley, wheat, buckwheat, peanuts, beans, and other small granules in the food industry, light industry, chemical industry in bulk weight.
Having a high quality and R&D lab in the industry, our quality department covers 16 inspection points such as incoming materials checking, routing inspection, QE, pre-aging, and post-aging inspection, finishing product inspection, and a complete quality management system with restricted control of upper and lower processes. Our products passed the environment simulation test, frequency, waterproof test, salt spray test, amplitude, and elastic stress-strain test, functional simulation test, 7*24 hours continuous aging test, and so on. The core components such as circuit boards and touch screens are all passed for nonstop aging test for more than 72 hours at 50℃ environment because we devote ourselves to manufacturing craftsmanship products with high quality. The failure rate of our products is less than 0.5% within 1 year and less than 1% within 2 years.
Kenwei independently researched and developed both standard and high amplitude vibrators. The vibration time and vibration amplitude of each vibrator can be automatically adjusted to optimize the material flow. Multi-head weigher central chassis is made from 2.5mm thickness stainless plate and strengthened structurally with internal strengthening rib. The AD conversion module combines technical modification with anti-interference technology to effectively minimize various vibration interference and ensure the accuracy of the whole machine.
13 years of experience in product customization and practical industry application. Special program technical team with rapid response. Tailored products and solutions with high pertinence and applicability are delivered after the comprehensive planning and evaluation based on the customer’s actual production situation and usage.
