Product Details:
Payment & Shipping Terms:
|
| Identify Code: | X2-2-1 | Weighing Range: | 20-3000g |
|---|---|---|---|
| Accuracy: | X(1) | Max Speed: | 30P/M |
| Hopper Volume: | 4.5L | Options: | Dimple Plate/Timing Hopper/Printer/Reject Device |
| Parameters Press No.: | 100 | Power Requirement: | 220V / 1200W/50/60Hz / 6A |
| Packing Dimension(mm): | 920(L)*800(W)*890(H) | ||
| High Light: | 2 Head Linear Weigher Machine,30P/M Linear Weigher Machine,1200w multihead weigher |
||

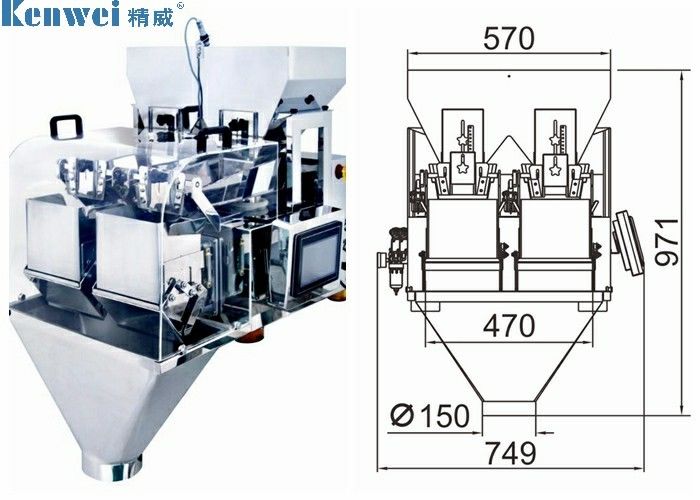

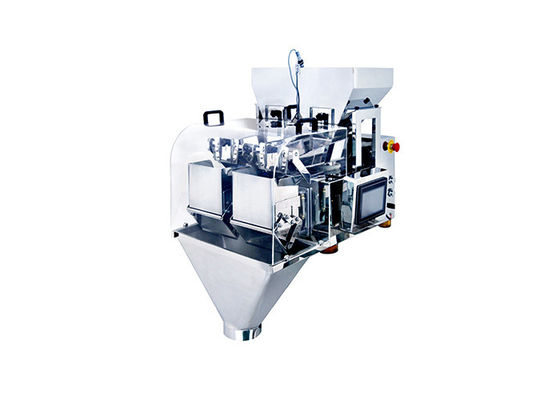

Mix 2 Product Linear Weigher Machine
2 Head Linear Weigher is suitable for weighing small granular or powder products such as coffee beans, coffee powder, nuts, cashew nuts, raisins, rice, sugar flour and other food and non-food products. The two separate hoppers on this machine can be filled with different products to mix them with accurate weighs. Depending on the product, the weighing accuracy is between 0.2g and 5g and can discharge between 20g and 3000g.
Features
1. Two materials can be mixed and weighed.
2. Modular control system, easy maintenance, and low cost.
3. Make mix different products weighing at one discharge.
4. Parameter can be freely adjusted according to production.
5. Adopt stepless vibrating feeding system to make products flow more fluently.
Mechanical character
1.It is suitable for weighing slice ,roll or regular shape products such as sugar ,salt ,seed ,rice , seasame , glutamate ,milk powder ,coffee and seasoning powder etc.
2. Sanitation with 304S S construction.
3. Rigid design for vibrator and feed pan make feeding strictly correct.
4. Quick Release design for all the contact parts
Technical specification
| Model |
JW-AX2 |
| Identify Code |
X2-2-1 |
| Weighing Range |
20-3000g |
| Accuracy | X(1) |
| Max Speed |
30P/M |
| Hopper Volume |
4.5L |
| Parameters Press No. | 100 |
| Max Mixing Products | 2 |
| Power |
1200W |
|
Power Requirement |
220V/50/60Hz/6A |
|
Packing Dimension(mm) |
920(L)*800(W)*890(H) |
Technology:
A. Through ten years of efforts, we build the technical team with high-quality professional engineers more than 30% in rich industry experience. They are with comprehensive capacity of design and development, manufacturing, marketing, installation and commissioning, technical training, and after-sales service for a fully automatic weighing packaging system.
B. We have a technical team with a rapid response for special projects to meet the different requirements of customers.
C.Kenwei has a rigorous new product development process, which promotes the guidelines for overall mold, internal & external craft, also enhances the consistency and stability of machine quality.
Product customization
A. We have a technical team with a rapid response for special projects to meet the different requirements for customers.
B.10 years of experience in product customization, rich practical application of industry experience
C. According to the actual situation of enterprises, research production characteristics to make a comprehensive assessment of planning programs with high adaptability.
