30bag/Min 12 Head Manual Combination Weigher With Belt

30bag/Min 12 Head Manual Combination Weigher With Belt
30bag/Min 12 Head Manual Combination Weigher With Belt

Large Image :  30bag/Min 12 Head Manual Combination Weigher With Belt

Product Details:
Place of Origin: Guangdong,China
Brand Name: Kenwei
Certification: CE,SGS,OIML
Model Number: JW-A12
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD4000-4500
Packaging Details: Wooden Crate Package
Delivery Time: 20-45 working day
Payment Terms: L/C, T/T
Supply Ability: 300 set per/year
Detailed Product Description
Application: Aquatic Product Weighing Range: 10-6000g
Head: 12 Head Max Speed: 30P/M
Hopper Volume: 1.6/2.5L Control Panel: 10.1”Touch Screen
Power Requirement: 220V/800W/50/60Hz/3.6A
High Light:

Manual Combination Weigher

,

12 Head Combination Weigher

,

30bag/min multihead weighing machine

30bag/Min 12 Head Manual Combination Weigher With Belt





Product description



The machines in this series are outstanding to the market and fill the need for processing between manual and automatic packaging. We ensure you Return on Investment within the shortest time. The main computer calculates the desired combination in a fraction of activates the conveyor belt in the relevant actuator units. The targeted product amount is forwarded ready for packing. Visualize LED signal light, clear the feeding direction and feeding area, and effectively identify the current status of the corresponding tray.





Product parameters



Weighing Head 12
Weighing Range 10 - 60000g
Weighing Accuracy ±0.1 - 1.5g
Max. Speed 30WPM
Level of protection IP65
Power 1.5kW
Power Supply AC 220V,50/60Hz/3.6A
Drive System Step Motor
Operational Panel 10.1" Touch Screen





Application



It is suitable for automatic weighing of the large block, strip, and stem-shaped materials with poor fluidity, such as fish (fish), noodles, shrimp and other aquatic products, meat products, medicinal materials, and other materials.

30bag/Min 12 Head Manual Combination Weigher With Belt 0




Product features

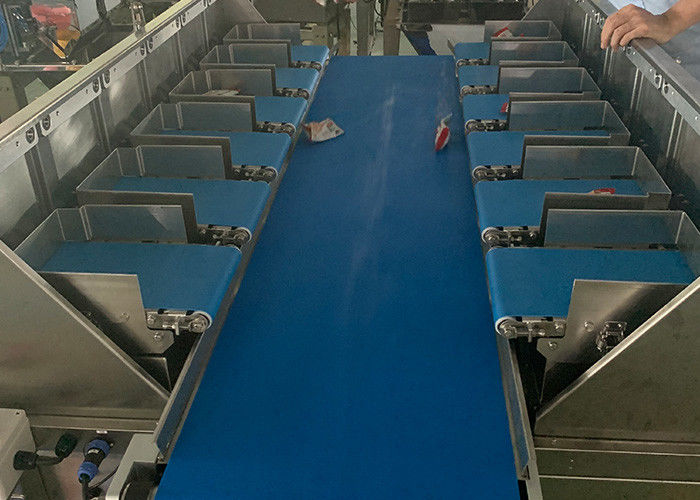

Double row linear layout, easy to use by shop staff.
The belt-type open weighing pan design structure can effectively solve the feeding of sticky or bulky material with low fluidity.
View the LED light signal, clear the feeding direction and feeding area, and effectively identify the current state of the corresponding tray.

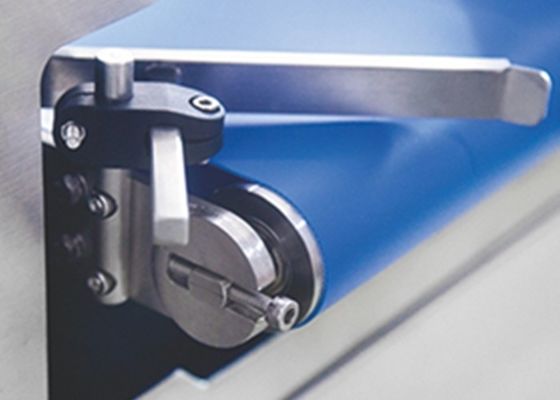

Easily detachable conveyor belt, easy to clean.
HMI interface to facilitate self-learning and information exchange.





Product advantages







Having a high quality and R&D lab in the industry, our quality department covers 16 inspection points such as incoming materials checking, routing inspection, QE, pre-aging, and post-aging inspection, finishing product inspection, and a complete quality management system with restricted control of upper and lower processes. Our products passed the environment simulation test, frequency, waterproof test, salt spray test, amplitude, and elastic stress-strain test, functional simulation test, 7*24 hours continuous aging test, and so on. The core components such as circuit boards and touch screens are all passed for nonstop aging test for more than 72 hours at 50℃ environment because we devote ourself to manufacturing craftsmanship products with high quality. The failure rate of our products is less than 0.5% within 1 year and less than 1% within 2 years.



30bag/Min 12 Head Manual Combination Weigher With Belt 1
