24 Heads 1100mm Multiweigh Systems For Coffee Bean

24 Heads 1100mm Multiweigh Systems For Coffee Bean
24 Heads 1100mm Multiweigh Systems For Coffee Bean 24 Heads 1100mm Multiweigh Systems For Coffee Bean 24 Heads 1100mm Multiweigh Systems For Coffee Bean

Large Image :  24 Heads 1100mm Multiweigh Systems For Coffee Bean

Product Details:
Place of Origin: Guangdong,China
Brand Name: Kenwei
Certification: CE,SGS,OIML
Model Number: JW-A24
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD4500-5400
Packaging Details: Wooden Crate Package
Delivery Time: 20-45 working day
Payment Terms: L/C, T/T
Supply Ability: 1000 set per/year
Detailed Product Description
Identify Code: A24-2-2 Weighing Range: 5-240g
Accuracy: X(0.5) Max Speed: 60P/M( Mix 4 Products )
Hopper Volume: 0.5L Control Panel: 10.4”Touch Screen
Options: Timing Hopper/Printer/Reject Device Packing Dimension(mm): 1800(L)*1250(W)*1100(H)
Gross Weight: 440kg Power Requirement: 220V/1500W/50/60Hz/10A
Driving System: Step Motor
High Light:

24 Heads multiweigh systems


1100mm multiweigh systems


1100mm multiweigh multihead weigher

24 Heads Multihead Mixing Weigher Machine For Weighing Coffee Bean, Seeds



Our products have passed CE certificate, PA / MC certificate, OIML certificate, and GSG enterprise qualification certificate, widely used in food, medicine, chemical, hardware, commodity fields. The 24-head mixing multi-head weigher machine uses an independent loading hopper, which can meet the weighing and mixing requirements of various formulas, such as 2 in 1, 3 in 1, and 4 in 1. In order to separate the feed thickness of different materials, the main vibrator is used. 24 hoppers make the feeding speed faster and more efficient.




  1. 24 heads hoppers to combination, higher accuracy.
  2. The weight of the mixing can be automatically compensated by the last products.
  3. Using high-precision, high-standard special sensors.
  4. Intelligent alarm diagnosis.
  5. High-speed stagger dump function.
  6.  New Modular and CAN bus technology, more efficient and stable.
  7. Modbus Industry communication protocol.
  8. Can use for 2 in 1, 3 in 1 and 4 in 1 mixing products.


24 Heads 1100mm Multiweigh Systems For Coffee Bean 0


Mechanical character


  1. An independent main vibrator is used to control the feeding thickness of different materials.
  2. The integral chassis and middle seat enhance the rigidity and strength of the machine, making the weighing more accurate.
  3. Uniform design standards and the use of mold manufacturing technology to make each component more interchangeable.
  4. The stable aluminum shell structure makes the hopper run more stable and the readings are more accurate. The integrated chassis and middle seat enhance the strength of the machine and make the hopper's stability time shorter.
  5. Separate upper hopper is used for a variety of mixed formula materials.


Technical specification




Identify Code


Weighing Range 5-240g 5-240g
Accuracy X(0.5) X(0.5)
Max speed

60P/M( Mix 4 Products )

60P/M( Mix 3 Products )
Hopper volume 0.5L
Control Panel

10.4” Touch Screen


Dimple Plate/Timing Hopper/Printer

Driving System Step Motor
Power Requirement


Packing Dimension (mm)


Gross Weight

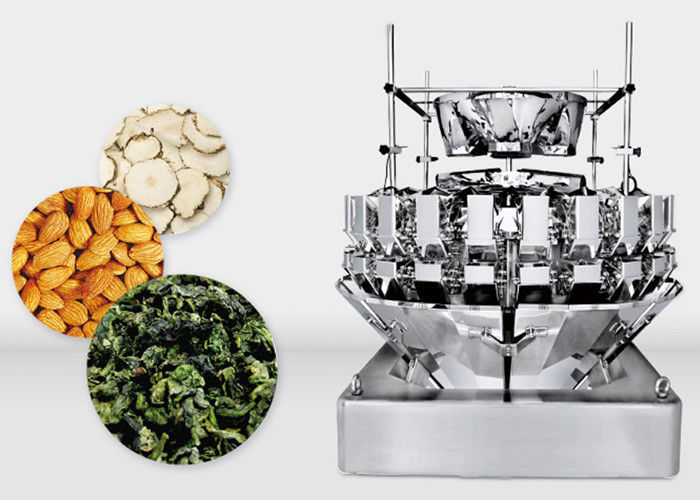

It is suitable for quantitative weighing of mixture formulas with good flowabilities, such as granular materials, tea, Chinese herbal medicine, seeds, beans, coffee beans, chocolate beans, nuts, monosodium glutamate, and chicken essence.

24 Heads 1100mm Multiweigh Systems For Coffee Bean 1



Kenwei machinery advantages


1.2 years warranty: help customer reduce service cost, less worry, less money;

2.Brand: Industry-leading enterprises, the international production scale, one of the largest manufacturing bases of producing professional combination weigher (linear weigher/check weigher/metal detector, etc.) in the world with wide influence. We are a national high-tech enterprise.

3.Ten years experience: Ten years of customized experience of weighing production system, provide high-precision, high-efficiency production line for customers, greatly enhance the customer's profitability.

4. Customized group: We have a technical team with a rapid response for special projects to meet the different requirements for customers.

5. Meet individual needs: Based on the actual situation of customers, research the production characteristics, make comprehensive assessment planning programs with high adaptability.

6.Rigorous design: Rigorous weighing system design and development process to promote the overall mold, internal, and external process guidelines to enhance the accuracy and stability of the production line.

7.Serialization products: We have a series of products to adapt to a variety of materials, and to solve the weighing materials adaptability problem.
