32 Heads Nut Mixing 4P/M 1400mm Combination Weigher

32 Heads Nut Mixing 4P/M 1400mm Combination Weigher
32 Heads Nut Mixing 4P/M 1400mm Combination Weigher

Large Image :  32 Heads Nut Mixing 4P/M 1400mm Combination Weigher

Product Details:
Place of Origin: Guangdong,China
Brand Name: Kenwei
Certification: CE,SGS,OIML
Model Number: JW-A32
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD4500-5400
Packaging Details: Wooden Crate Package
Delivery Time: 20-45 working day
Payment Terms: L/C, T/T
Supply Ability: 1000 set per/year
Detailed Product Description
Identify Code: A32-2-3 Weighing Range: 10-2000g
Accuracy: X(0.5) Max Speed: 60X4P/M
Hopper Volume: 1.6L Control Panel: 10.1”Touch Screen
Options: Timing Hopper/Printer/Reject Device Packing Dimension(mm): 3000(L)x2100(W)x1400(H)
Gross Weight: 1300kg Power Requirement: 220V/2500W/50/60Hz/18A
Driving System: Step Motor
High Light:

1400mm Combination Weigher


4P/M Combination Weigher


Nut Mixing combination scale

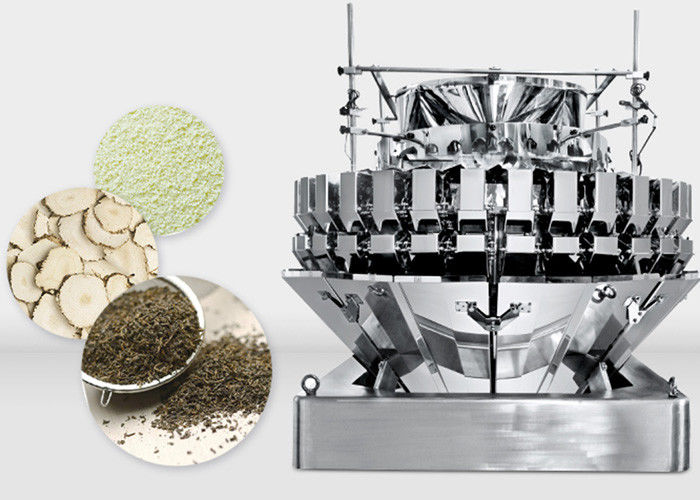

32 Heads Mixing 4 Products Combination Weigher Machine For Mixing Nut



The 32-head mixing weigher adopts a separate upper hopper, which can meet the weighing and mixing of various formulas such as 2 in 1, 3 in 1, 4 in 1. In order to control the feeding thickness of different materials separately, an independent main vibrator is used. The combination of 32 hoppers makes the feeding speed faster, the accuracy higher and the efficiency higher. Tailored products and solutions with high pertinence and applicability are delivered after the comprehensive planning and evaluation based on the customer’s actual production situation and usage.




1. Can meet 2 in 1, 3 in 1, 4 in 1 formula for weighing and mixing.
2. More hopper combinations and higher weighing accuracy.
3. The weight of the mixture can be automatically compensated by the last material.
4. Using high-precision, high-standard special sensors.
5. Intelligent fault alarm prompt, more convenient maintenance.
6. High-speed asynchronous discharge function, effectively prevent materials from blocking.
7. Brand new highly integrated modular design, using CAN bus technology.
8. Modbus industry-standard communication protocol, realize the combination of combination weigher and packaging machine interface.



32 Heads Nut Mixing 4P/M 1400mm Combination Weigher 0

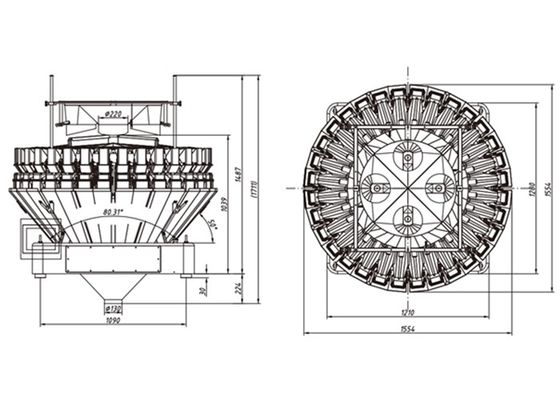

Mechanical character

1. The upper storage funnel is divided into weight two different products.

2. Separate the main vibrator, control the thickness of the product independently.

3. The integral machine frame and machine cabinet contributes to more stability and higher accuracy.

4. Uniform design standards, and mold processing, contribute to better interchangeability for spare parts.

5. Stable actuator design reduces the mechanical vibration and improves the load cell value accuracy.

6. Options: mini 24 head mixing weigher and 32 head weigher for mixing 4 products.


Technical specification



JW-A24 JW-A24 JW-A32 JW-A32

Identify Code

A24-2-1 A24-2-2 A32-2-1 A32-2-3

Weighing Range

5-240g 5-240g 5-240g 10-2000g


X(0.5) X(0.5) X(0.5) X(0.5)

Max Speed

60P/M(Mix 4 Products)

60P/M(Mix 3 Products)

60P/M(Mix 4 Products)

60X4P/M(Mix 4 Products)

Hopper Volume

0.5L 0.5L 0.5L 1.6L

Control Panel

10.1” Touch Screen


Dimple Plate/Timing Hopper/Printer/Reject Device

Driving System

Step Motor

Power Requirement

220V/1500W/50Hz/60Hz/10A 220V/2500W/50/60Hz/15A 220V/2500W/50/60Hz/18A

Packing Dimension(mm)

1800(L)x1250(W)x1110(H) 2100(L)x1480(W)x1130(H) 3000(L)x2100(W)x1400(H)

Gross Weight

440kg 600kg 1300kg



It is suitable for weighing small granules such as seeds, tea, coffee beans, etc.


32 Heads Nut Mixing 4P/M 1400mm Combination Weigher 1



Specialized in the production of automatic weighing and packaging machinery for 14 years, we devote ourselves to the complete solution of automatic packaging. Now we become the professional multihead weigher (linear weigher/check weigher/metal detector etc ) manufacturing enterprise with large production capability and wide influence in the world. We have successively won the “Guangdong Industry-University-Research Science and Technology Project Award”, “high technology enterprise”, “Technology Innovation Award” in Chinese food processing and packaging industry, Ringier Multihead Combination Weighing Technology Innovation Award, a number of “Utility Model Patent Certificate” and many other honorary certificates.


Having a high quality and R&D lab in the industry, our quality department covers 16 inspection points such as incoming materials checking, routing inspection, QE, pre-aging, and post-aging inspection, finishing product inspection, and a complete quality management system with restricted control of upper and lower processes. Our products passed the environment simulation test, frequency, waterproof test, salt spray test, amplitude, and elastic stress-strain test, functional simulation test, 7*24 hours continuous aging test, and so on. The core components such as circuit boards and touch screens are all passed for nonstop aging test for more than 72 hours at 50℃ environment because we devote ourself to manufacturing craftsmanship products with high quality. The failure rate of our products is less than 0.5% within 1 year and less than 1% within 2 years.


32 Heads Nut Mixing 4P/M 1400mm Combination Weigher 2
