Fluid Linear Single Head Weigher For Bulk Corn

Fluid Linear Single Head Weigher For Bulk Corn
Fluid Linear Single Head Weigher For Bulk Corn

Large Image :  Fluid Linear Single Head Weigher For Bulk Corn

Product Details:
Place of Origin: Guangdong,China
Brand Name: Kenwei
Certification: CE,SGS,OIML
Model Number: JW-AX1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD3500-4200
Packaging Details: Wooden Crate Package
Delivery Time: 20-45 working day
Payment Terms: L/C, T/T
Supply Ability: 800 set per/year
Detailed Product Description
Identify Code: XL1-2-1 Weighing Range: 5-50KG
Accuracy: X(1) Max Speed: 7-11P/M
Hopper Volume: 50L Control Panel: 7”Touch Screen
Options: Conveyor Belt /bag Sealer Gross Weight: 150kg
Parameters Press No.: 100 Power Requirement: 220V/80W/50/60HZ/0.4A
Packing Dimension(mm): 1250(L)x1150(W)x2280(H) Max Products Mixed: 1
High Light:

Fluid single head weigher


Linear single head weigher


single head industrial weighing machine

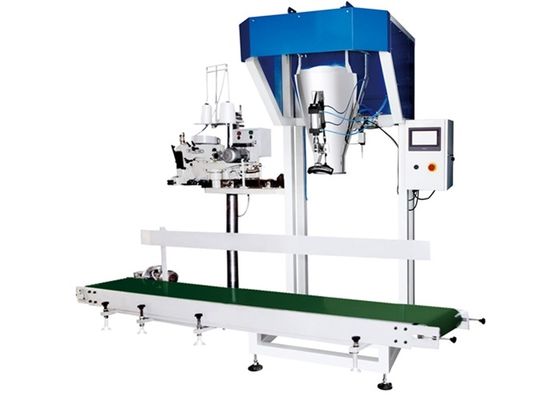

Single Head Fluid Linear Weigher Machine For Weighing Bulk Weight Corn


The single head fluid linear weigher is specially designed for weighing heavy-weight materials, suitable for corn, soybeans, rice, rice, peanuts, and other food and food industries. The operation of the grain scale is simple. The operator only needs to set the bag and touch the travel switch of the bag clamping, and the actions of feeding, filling and unloading the bag are all automatically completed by the quantitative weighing, which is a semi-automatic weighing device.



1. It's suitable for weighing material in bulk volume with high speed and high accuracy.

2. User-friendly HMI can be fast and easy to take and store preselected weighting parameters for different weighing ranges.

3. Easy operating. The operator can simply put on the bag and touch switch then the feeding, filling, and unloading bags can be completed automatically finished.

4. The controller and AD module are in CAN bus communication mode, the independent weighing process carried out by the AD module board, reducing controller communication time, make the weighing result feedback process more quickly.

5. Output ports use free port mode design, having a signal test function, easy to know about the equipment failure.

6. Detailed production records statistics functions.


Fluid Linear Single Head Weigher For Bulk Corn 0

Mechanical character

1. The system uses a high-precision load cell. AD converter module is with operating frequency of 400 times/s, which is high accuracy and good stability.

2. Three feeding level and special control algorithms make the weighing speed more quickly and higher accuracy.

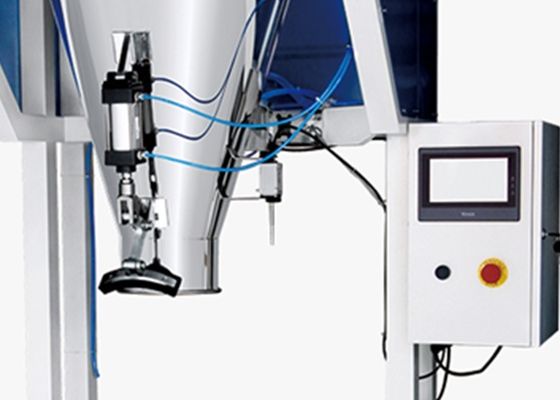

3. Automatic entrainment structure, convenient artificial fix bags, it's safe and more efficient.

4. Material contact parts are made of food-class stainless steel, more healthy, more environmentally, and easier to wash and maintain.


 Fluid Linear Single Head Weigher For Bulk Corn 1


Technical specification


Model JW-AX1
Identify Code XL1-2-1
Weighing Range 5-50Kg
Accuracy X(1)
Max Speed 7-11P/M
Hopper Volume 50L
Parameters Press No. 100
Max Products Mixed 1
Control Panel 7” Touch Screen
Options Conveyor Belt /bag sealer
Power Requirement 220V/80W/50/60HZ/0.4A
Packing Dimension(mm) 1250(L)x1150(W)x2280(H)
Gross Weight 150kg



It's suitable for weighing corn, soybeans, rice, barley, wheat, buckwheat, peanuts, beans, and other small granules in the food industry, light industry, chemical industry in bulk weight.

Fluid Linear Single Head Weigher For Bulk Corn 2

Having a high quality and R&D lab in the industry, our quality department covers 16 inspection points such as incoming materials checking, routing inspection, QE, pre-aging, and post-aging inspection, finishing product inspection, and a complete quality management system with restricted control of upper and lower processes. Our products passed the environment simulation test, frequency, waterproof test, salt spray test, amplitude, and elastic stress-strain test, functional simulation test, 7*24 hours continuous aging test, and so on. The core components such as circuit boards and touch screens are all passed for nonstop aging test for more than 72 hours at 50environment because we devote ourself to manufacturing craftsmanship products with high quality. The failure rate of our products is less than 0.5% within 1 year and less than 1% within 2 years.


Kenwei independently researched and developed both standard and high amplitude vibrators. The vibration time and vibration amplitude of each vibrator can be automatically adjusted to optimize the material flow. Multi-head weigher central chassis is made from 2.5mm thickness stainless plate and strengthened structurally with internal strengthening rib. The AD conversion module combines technical modification with anti-interference technology to effectively minimize various vibration interference and ensure the accuracy of the whole machine.


13 years of experience in product customization and practical industry application. Special program technical team with rapid response. Tailored products and solutions with high pertinence and applicability are delivered after the comprehensive planning and evaluation based on the customers actual production situation and usage.
