Product Details:
Payment & Shipping Terms:
|
| Identify Code: | X2-2-2 | Weighing Range: | 50-2000g |
|---|---|---|---|
| Accuracy: | X(1) | Max Speed: | 30P/M |
| Hopper Volume: | 4.5L | Control Panel: | 7”Touch Screen |
| Options: | Dimple Plate/Timing Hopper/Printer/Reject Device | Gross Weight: | 150kg |
| Parameters Press No.: | 2 | Power Requirement: | 220V/500W/50/60HZ/3A |
| Packing Dimension(mm): | 920(L)X800(W)X1090(H) | ||
| High Light: | Salad multihead weigher packing machine,30P/M multihead weigher packing machine,30P/M salad weigher |
||

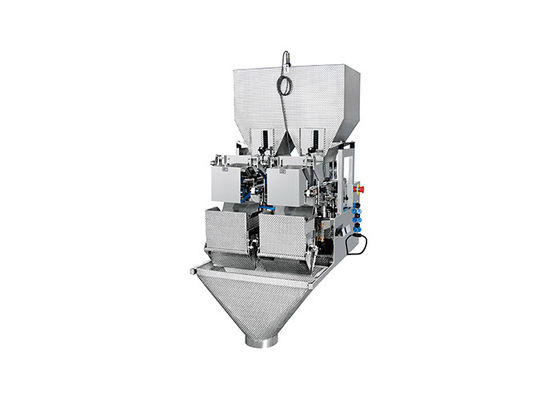

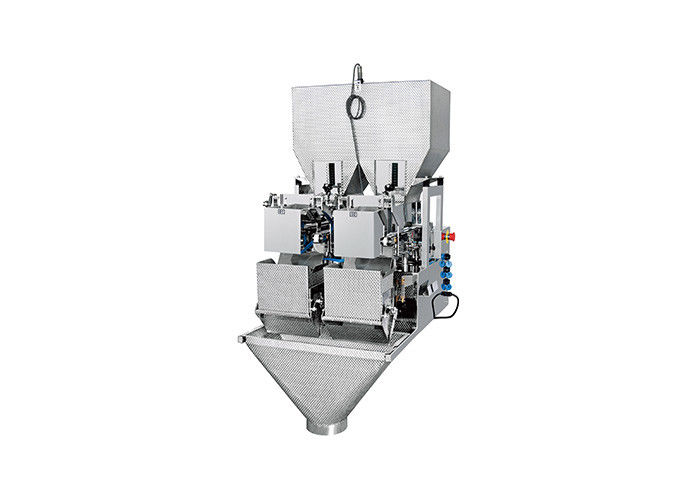

2 Head Linear Weigher Machine With Belt For Weighing Vegetable Fruit Salad
The two-head belt linear weigher adopts belt-type feeding, which makes the flow of the logistics better, and is suitable for quantitative weighing of various fluffy and viscous materials such as vegetable salads, fruit salads, vegetables, and other materials or viscous materials. In addition, there is a pneumatic valve at the outlet of the belt feeding port, which realizes accurate feeding of small flow and effectively improves the accuracy of weighing.
Features
1. Man-machine exchange interface, convenient and fast obtaining deposits of the different weight ranges of primary weighting parameters.
2. The communication between the controller and AD conversion module adopts CAN bus mode, and the weighing process is carried out independently by the AD module board, which is more accurate.
3. The function of the output port adopts the mode design of the free port, which can change the output of the signal according to the need and has the function of the signal test, which convenient to eliminate the equipment breakdown.
4. Detailed production record statistics function.
Mechanical character
1. Belt feeding can be applied to fluffy and stick materials.
2. The belt speed adopts a speed regulating motor to realize automatic speed adjustment in the weighing process.

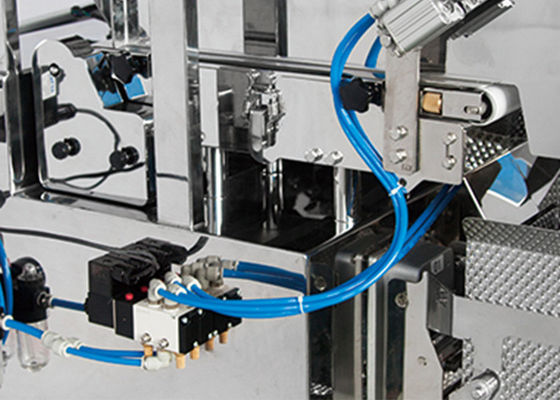

3. The belt feeding outlet is equipped with a pneumatic gate to realize precise feeding with the small flow and effectively improve the weighing accuracy.
4. The contact part with the material adopts a decorative pattern plate to reduce the contact area of the sticky material.
Technical specification
| Model | JW-AX2 |
| Identify Code | AX2-2-2 |
| Weighing Range | 50-2000g |
| Accuracy | X(1) |
| Max Speed | 30P/M |
| Hopper Volume | 4.5L |
| Parameters Press No. | 100 |
| Max Products Mixed | 2 |
| Control Panel | 7” Touch Screen |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device |
| Power Requirement | 220V/500W/50/60HZ/3A |
| Packing Dimension(mm) | 920(L)X800(W)X1090(H) |
| Gross Weight | 150kg |
Application
It is suitable for weighing vegetable salad fruit salad or other sticky materials.
Quality:
A. The quality department is equipped with an environmental simulation test, frequency test, and waterproof test, which mainly used to simulate the high and low-temperature environment, research, and coping machine working conditions under different voltage and frequency, do well for the 50/60Hz frequency and vibration / rotary top cone inspection.
B. Our quality department is Including material checking, inspection, QE, checking before and after the aging test and finished product inspection, etc. total 16 inspection positions and steps.
C. We pay high attention to material inspection and finished product inspection of these two organizational structures.
D.Key components such as circuit boards, screens must be in 72 hours nonstop aging test at 50 ℃ environments. Each machine before delivering must be in 7 days nonstop aging test.
