Product Details:
Payment & Shipping Terms:
|
| Application: | Leisure Food | Weighing Range: | 10-1000g |
|---|---|---|---|
| Head: | 20 Head | Max Speed: | 65-120P/M |
| Hopper Volume: | 1.6/2.5L | Control Panel: | 10.1”Touch Screen |
| Power Requirement: | 220V/1100W/50/60Hz/10A | ||
| High Light: | 20 Head Kenwei Multihead Weigher Machine,200g Nuts Multihead Weigher Machine,O Type Kenwei Multihead Weigher |
||

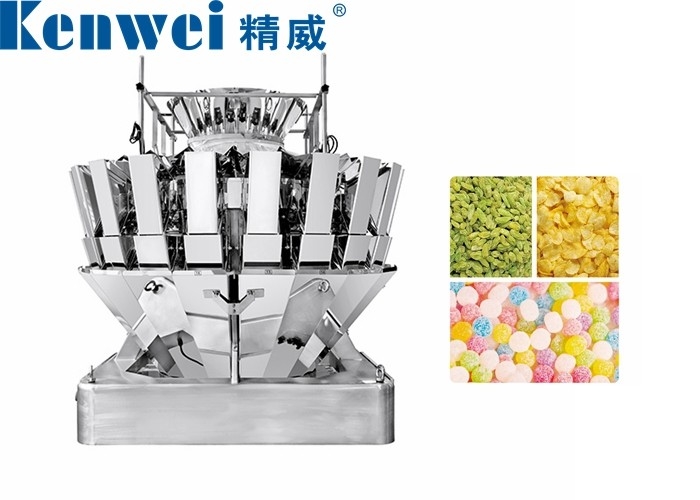

Product description
A defined target weight is accurately maintained. The scales can be used in many industry and simplify the packaging process of sweets, snacks, meat, vegetables, cereals, frozen products, pens or metal parts such as screws.Kenwei high speed standard 20 heads oatmeal multihead weigher is perfect for an array of high-accuracy and high-speed applications. It is easy to operate, clean and maintain. Machine frame,discharge chute with compatible design,single discharge chute gate can change to double with twin packaging machine when just one kind of product.It is suitable for weighing a single material with high-speed or variousmixing products,such as oatmeal,mixing nuts etc.
Product features
1. When weighing one product,high speed mode can be optional.
2. Intelligent alarm diagnosis.
3. New Modular and CAN bus technology,more efficient and stable.
4. Modbus Industry communication protocol.
5. The weight of the mixing can be automatically compensated by the last products.
6. Special load cell with high precision and high standard.
7. Cleaning is possible without tools.
Mechanical Character
1. Upper storage funnel is divided to weight two different products.
2. Seperate main vibrator,control the thickness of product independently.
3. Uniform design standards,and mould processing,contribute to better interchangeability for spare parts.
4. Machine frame,discharge chute with compatible design,single discharge chute gate can change to double with twin packaging machine when just one kind of product.
5. Integral machine frame and machine cabinet contributes to more stability and higher accuracy.
6. Stable actuator design reduce the mechanical vibration and improves the load cell value accuracy.
7. Option:two outputs model.
8. All parts of the multi-head weigher that are in contact with food are made of hygienic stainless steel.
Product parameters
| Model | JW-A20 | JW-A20 | JW-A20 | JW-A20 | JW-A20 |
| Identify Code | A20-2-1(O type) | A20-2-1(O type) | A20-2-3(8 type) | A20-2-2(O type) | A20-2-4(8 type) |
| Weighing Range | 20-2000g(Mixing Mode)/10-1000g(Single Mode) | 10-1000g | |||
| Accuracy | X(0.5) | ||||
| Max Speed | 65P/M(Mixing Mode) /120P/M (Single Mode) | 2x65P/M(Twin Packing Machine Mode) | |||
| Hopper Volume | 1.6L | 2.5L | 1.6L/2.5L | ||
| Control Panel | 10.1”Touch Screen | ||||
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device | ||||
| Driving System | Step Motor | ||||
| Power Requirement | 220V/2000W/50/60Hz/16A | 220V/2000W/50/60Hz/16A | 220V/2000W/50/60Hz/16A | 220V/2000W/50/60Hz/16A | 220V/2000W/50/60Hz/16A |
| Packing Dimension(mm) | 1700(L)x1450(W)x1450(H) | 1920(L)x1650(W)x1620(H) | 1880(L)x1600(W)x1240(H) | 1950(L)x1650(W)x1620(H) | 1880(L)x1600(W)x1240(H) |
| Gross Weight | 850kg | ||||
Application
It is suitable for weighing a single material with high-speed or various mixing products, such as oatmeal, mixing nuts etc.
Kenwei advantages
We produce multihead weighers, linear weighers, checkweigher, vertical packing machine, metal detectors, conveyors, platforms. We are developing also TTO printers, robots, etc. We provide fully complete packing solutions and make many special projects, like noodles, cheese, mixing, etc. We have customers from more than 90 countries, most of our customers are machine producers or resellers. We believe we are a reliable company for you to work with and we expect long time cooperation with you as well.
