Product Details:
Payment & Shipping Terms:
|
| Application: | Leisure Food | Weighing Range: | 10-1000g |
|---|---|---|---|
| Head: | 20 Head | Max Speed: | 65-120P/M |
| Hopper Volume: | 1.6/2.5L | Control Panel: | 10.1”Touch Screen |
| Power Requirement: | 220V/1100W/50/60Hz/10A | ||
| High Light: | Automatic Multihead Weigher Packing Machine,2.5L Hoppers Weigher Packing Machine,120P/M Food Kenwei Multihead Weigher |
||

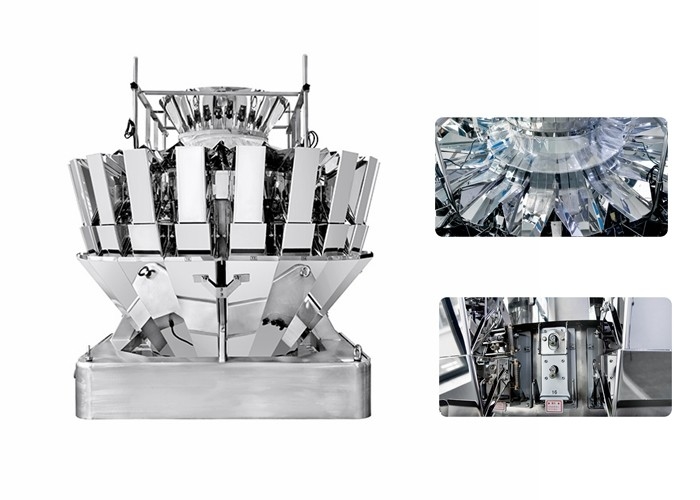

Automatic Mutihead Weigher Packing Machine For Food With 2.5L Hoppers
Product description
Kenwei's 20 heads multihead weigher features a double-infeed hopper and double discharge funnel which combine to nearly double production efficiency. If you are mixing ingredients, you can change the double-infeed hoppers into a single hopper with greater volume. The double infeed and double discharge multihead weigher is applied for dosing and weighing granules, pieces, strips, round or irregular shaped products such as baked goods, snacks, dried foods, hardware, etc.
Product features
1. When weighing one product, the high-speed mode can be optional.
2. Intelligent alarm diagnosis.
3. New Modular and CAN bus technology, more efficient and stable.
4. Modbus Industry communication protocol.
5. The weight of the mixing can be automatically compensated by the last products.
6. Special load cell with high precision and high standard.
Mechanical Character
1. Upper storage funnel is divided to weigh two different products.
2. Separate main vibrator, control the thickness of product independently.
3. Uniform design standards, and mold processing, contribute to better interchangeability for spare parts.
4. Machine frame, discharge chute with compatible design, double discharge chute gate can change to single discharge chute gate easily.
5. Integral machine frame and machine cabinet contribute to more stability and higher accuracy.
6. The decisive feature is that the format parts combine more hoppers so that weighing products can have higher accuracy, and faster speed.
7. Option: two outputs model.
Product parameters
| Model | JW-A20 | JW-A20 | JW-A20 | JW-A20 | JW-A20 |
| Identify Code | A20-2-1(O type) | A20-2-1(O type) | A20-2-3(8 type) | A20-2-2(O type) | A20-2-4(8 type) |
| Weighing Range | 20-2000g(Mixing Mode)/10-1000g(Single-Mode) | 10-1000g | |||
| Accuracy | X(0.5) | ||||
| Max Speed | 65P/M(Mixing Mode) /120P/M (Single-Mode) | 2x65P/M(Twin Packing Machine Mode) | |||
| Hopper Volume | 1.6L | 2.5L | 1.6L/2.5L | ||
| Control Panel | 10.1”Touch Screen | ||||
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device | ||||
| Driving System | Step Motor | ||||
| Power Requirement | 220V/2000W/50/60Hz/16A | 220V/2000W/50/60Hz/16A | 220V/2000W/50/60Hz/16A | 220V/2000W/50/60Hz/16A | 220V/2000W/50/60Hz/16A |
| Packing Dimension(mm) | 1700(L)x1450(W)x1450(H) | 1920(L)x1650(W)x1620(H) | 1880(L)x1600(W)x1240(H) | 1950(L)x1650(W)x1620(H) | 1880(L)x1600(W)x1240(H) |
| Gross Weight | 850kg | ||||
Application
It is suitable for weighing a single material with high-speed or various mixing products, such as oatmeal, mixing nuts, etc.
Kenwei advantages
We produce multihead weighers, linear weighers, checkweigher, vertical packing machines, metal detectors, conveyors, and platforms. We are developing also TTO printers, robots, etc. We provide fully complete packing solutions and make many special projects, like noodles, cheese, mixing, etc. We have customers from more than 90 countries, most of our customers are machine producers or resellers. We believe we are a reliable company for you to work with and we expect long time cooperation with you as well.
