Product Details:
Payment & Shipping Terms:
|
Identify Code: | A18-3-1 | Weighing Range: | 10-1000g |
---|---|---|---|
Accuracy: | X(0.5) | Max Speed: | 180P/M |
Hopper Volume: | 2.0L | Control Panel: | 10.1”Touch Screen |
Options: | Dimple Plate/Timing Hopper/Printer/Reject Device | Packing Dimension(mm): | 1950(L)x1650(W)x1650(H) |
Gross Weight: | 800kg | Power Requirement: | 220V/1000W/ 50/60Hz/10A |
Driving System: | Step Motor | ||
High Light: | 18 Heads Weighing Packaging Machine,3rd Generation Weighing Packaging Machine,Peanuts Almonds Kenwei Multihead Weighe |

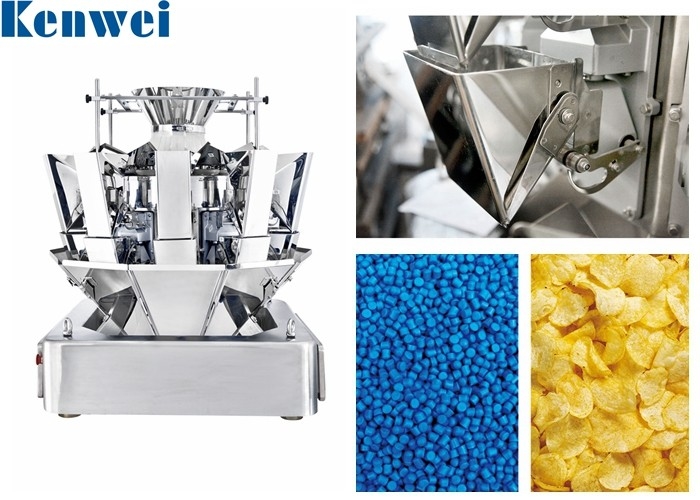

High Speed 3rd generation 18 heads multihead weighing and packaging machine for peanuts almonds
The high speed 3rd generation 18 heads multihead weighing and packaging machine is a highly integrated modular design, and the installation, commissioning and maintenance of mechanical and electronic components are simpler. The weighing and packaging machine is suitable for weighing seeds,peanuts,nuts,almonds,raisins,candy,pistachio,potato chips,dumplings and other granule,sheet,strip,round shape material.
Features
1. High precision and high standard special load cell.
2. Intelligent fault alarm, convenient maintenance.
3. The software versatility, strong compatibility, different weighers using the same control system.
4. With high integrated modular design makes mechanical and electronic components easy to install and maintain.
5. Weighers with strong self-checking function, can realize the closed loop testing, real-time detect abnormalities in each node, and real-time display in human-machine interface.
6. High speed staggered discharging function, effectively prevent blocking materials.
Mechanical character
1. High-speed hoppers without springs to avoid the broken spring falling into packages.
2. New springless actuator design makes weighing more stable and fast.
3. Machine case and middle seat integral welding greatly enhance the strength of the machine, makes the hopper shorter stable time.
4.Quicker, simpler training, with an easy-to-learn operator interface.
5. Double-layer discharge chutes with double high-speed timing hoppers to feed packaging machine in turn, surmount the speed problems of discharging chute feeding time.
Technical specification
Model | JW-A14 | JW-A18 |
Identify Code | A14-3-1 | A18-3-1 |
Weighing Range | 10-1000g | 10-1000g |
Accuracy | X(0.5) | X(0.5) |
Max Speed | 130P/M | 180P/M |
Hopper Volume | 2.0L | |
Control Panel | 10.1” Touch Screen | |
Options | Dimple Plate/Timing Hopper/Printer/Reject Device | |
Driving System | Step Motor | |
Power Requirement | 220V/1000W/50/60Hz/10A | 220V/1000W/50/60Hz/10A |
Packing Dimension(mm) | 1760(L)x1190(W)x1390(H) | 1950(L)x1650(W)x1650(H) |
Gross Weight | 500kg | 800kg |
Application
It's suitable for weighing seeds, peanuts, nuts, almonds, raisins, candy, pistachio, potato chips, dumplings, and another granule, sheet, strip, round shape material.
Specialized in the production of automatic weighing and packaging machinery for 14 years, we devote ourselves to the complete solution of automatic packaging. Now we become the professional multihead weigher (linear weigher/check weigher/metal detector etc ) manufacturing enterprise with large production capability and wide influence in the world. We have successively won the “Guangdong Industry-University-Research Science and Technology Project Award”, “high technology enterprise”, “Technology Innovation Award” in Chinese food processing and packaging industry, Ringier Multihead Combination Weighing Technology Innovation Award, a number of “Utility Model Patent Certificate” and many other honorary certificates.
According to the material characteristics and requirements of different industries, we developed various machine types for counting (small pouches into the big bag), noodles, frozen foods, peppers, stick-shaped products, product -mixing, cheeses, salads and so on. Products are free to choose two kinds of modes combination of operation such as digital and modular, single outlet and multiple discharge outlet, high precision, and high speed. Also, we can develop software system independently to meet more customized requirements for customers.
