| Identify Code: | A12-1-12 | Weighing Range: | 10-1500g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 100P/M |
| Hopper Volume: | 1.6/2.5L | Control Panel: | 7"Touch Screen |
| Options: | Timing Hopper/Printer/Reject Device | Power Requirement: | 220V/1100W/50/60Hz/10A |
| Packing Dimension(mm): | 1700(L)x1100(W)x1130(H) | Gross Weight: | 450kg |
| High Light: | 12 Head Cheese Weigher,7in Touch Screen Cheese Weigher,Timing Hopper Kenwei Multihead Weigher |
||

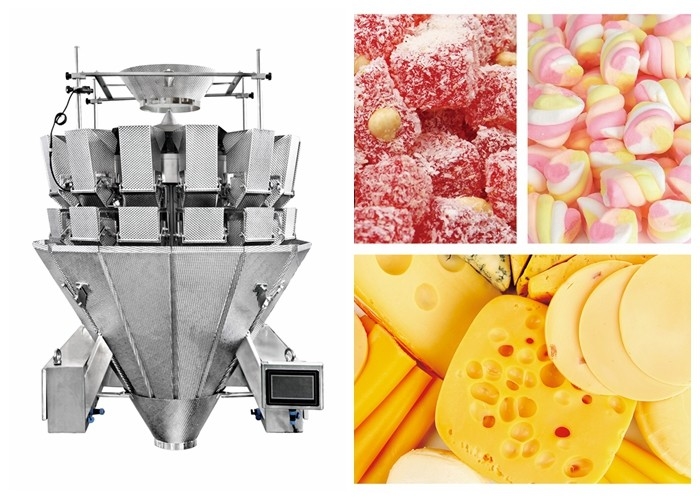

Cheese is not just cheese - these applications include shredded, crumbled, breaded and grated products with a wide range of fats and moisture levels in addition to difficult to handle ball-shaped products. Packages include bags, cups, bowls trays, and tubs. These products are also highly affected by product temperature and ambient conditions. Our many years of experience running this highly variable product have allowed us to develop custom solutions to meet our customer’s diverse needs. Time goes on. Guangdong Kenwei Intellectualized Machinery Co., LTD. has grown into a manufacturer that specializes in developing, supplying, and marketing filling machines.
Features
1. Special load cell with high precision and high standard.
2. Program recovery function can reduce operation failures, support multi-segment weight calibration.
3. No product auto-pause function can improve weighing stability and accuracy.
4. Linear amplitude can be adjusted independently, which can make the feeding more uniform.
5.15 languages available for global markets.
6.100 programs capacity can meet the various weighing requirements, user-friendly help menu in touch screen contributes to easy operation.
7.Kenwei always pays attention to customers. According to customers' actual needs, we could customize comprehensive and professional solutions for them.
Mechanical character
1. Speed adjustable rotary top cone is suitable for different product feeding.
2. Enhanced linear vibrator improves the flowability of material.
3. The declinational special linear vibrator pan, ensure smooth feeding.
4. 60° dimple discharge chute contributes to less sticky problems.
5. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
6. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.
7.It is suitable for weighing small weight granules such as seeds, tea, coffee beans, etc.
Technical specification
| Model | JW-A10 | JW-A12 | JW-A14 |
| Identify Code | A10-1-12 | A12-1-12 | A14-1-12 |
| Weighing Range | 10-1000g | 10-1500g | 10-1500g |
| Accuracy | X(0.5) | X(0.5) | X(0.5) |
| Max Speed | 60P/M | 100P/M | 100P/M |
| Hopper Volume | 1.6L/2.5L | ||
| Control Panel | 7” Touch Screen | ||
| Options | Timing Hopper/Printer/Reject Device | ||
| Driving System | Step Motor | ||
| Power Requirement | 220V/1000W/50/60Hz/10A | 220V/1200W/50/60Hz/10A | 220V/1500W/50/60Hz/10A |
| Packing Dimension(mm) | 1620(L)x1100(W)x1420(H) | 1700(L)x1100(W)x1130(H) | 1750(L)x1130(W)x1420(H) |
| Gross Weight | 380kg | 450kg | 490kg |
Having a high quality and R&D lab in the industry, our quality department covers 16 inspection points such as incoming materials checking, routing inspection, QE, pre-aging, and post-aging inspection, finishing product inspection, and a complete quality management system with restricted control of upper and lower processes. Our products passed the environment simulation test, frequency, waterproof test, salt spray test, amplitude, and elastic stress-strain test, functional simulation test, 7*24 hours continuous aging test, and so on. The core components such as circuit boards and touch screens are all passed for nonstop aging test for more than 72 hours at 50℃ environment because we devote ourselves to manufacturing craftsmanship products with high quality. The failure rate of our products is less than 0.5% within 1 year and less than 1% within 2 years.
