1000g Kenwei Multihead Weigher For Candy

1000g Kenwei Multihead Weigher For Candy

Specialized in the production of automatic weighing and packaging machinery for 14 years, we devote ourselves to the complete solution of automatic packaging. Now we become the professional multihead weigher (linear weigher/check weigher/metal detector etc ) manufacturing enterprise with large production capability and wide influence in the world.

Features

1. Special load cell with high precision and high standard.

2. Program recovery function can reduce operation failures and support multi-segment weight calibration

3. No products auto pause function can improve weighing stability and accuracy

4. Linear amplitude can be adjusted independently in the running

5. Many languages are available for global markets.

6. 100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation

Mechanical character

1.1.6L/2.5L hopper, suitable for all kinds of common standard materials, can be used widely

2. Mold making process and uniform design standards contribute to better interchangeability for spare parts

3. Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter

4. Weighing type for material detection is available, which can make accurate control of feeding time & material thickness and ensure weighing accuracy

5.Can choose patented no-spring hopper, cost-effective.

Technical specification

Application

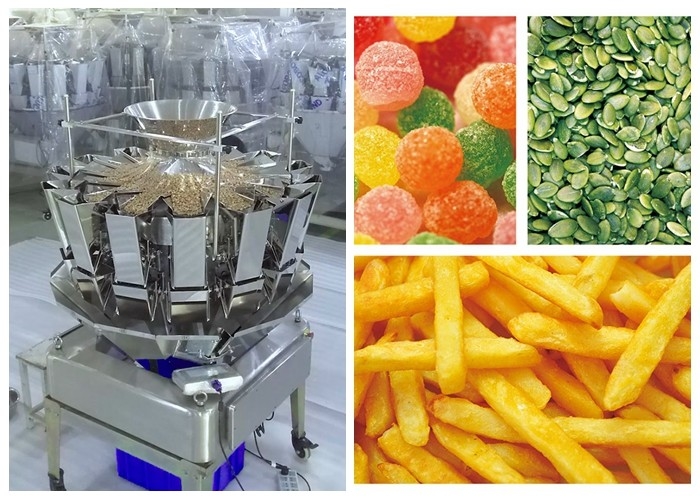

It is suitable for weighing leisure foods such as candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins, etc. and big shell nuts, hardware, dried fruits, frozen foods, snack foods, meatballs and so on.

Products

A.Products: Currently only a few combination weigher manufacturing enterprises such as Ishida,Kenwei who use a "stable time development model" in program design and development. This development model is the core element to ensure weigher be in long-time stable operation and make material saving maximize.

B. Advantages: The main advantage is reflected in weighing accuracy, which indicates that the average error between actual weight and displayed weight is smaller, it could help customers save materials; The same interval time for hopper doors repeat open and close make vibration torque consistency, which makes the mechanical structure mutual friction loss is minimized and the machine can be long-term stable operation.

C.Accuracy: Taking into consideration that the mode of the main vibrator and linear vibrator and vibration absorption ability of the framework that has an effect to weigher accuracy, Kenwei independent research and develop both standard and high amplitude vibrators to meet the needs of different materials. Also control the vibrating time and amplitude separately by control systems to automatically adjust the linear vibrator amplitude, which makes the material flow optimization; About the middle base of machine case, we always use 2.5mm-3.0mm stainless steel sheet and strengthen the internal structure by providing reinforcement to ensure the machine's rigidity. Some models take the machine case and middle base integrated, through a combination of AD converter module and anti-jamming technology, which effectively reduce the vibrating interference and ensure the accuracy of the machine running.

D.Molds and components: Key components such as hoppers, vibrating pans, waterproof cover are made by high-precision molds, which have high consistency and interchangeability; Sensors we use is from Japan and Germany well-known brand; Circuit board is in excellent industrial-standard

design, which the chip selection, PCB design, and protection are based on the industrial-grade materials and the production process.

E.Individual needs: Kenwei develop a variety of weighers for different material, including counting weigher (pouch fill into a large bag), noodle weigher, weigher for frozen food, feeding-control weigher, weigher for stick-shaped products, cheese weigher, salad weigher, mixing weigher, etc. The above products can be selected for digital and modular, single or multi discharge chutes, "high precision" and "high speed" can be freely selected, etc., including a self-developed software system in order to better meet the individual needs of different clients.

F.Function: More diverse function, more convenient operation, such as easy cleaning, simulation tests, free output ports, timing hopper for choice, etc.HMI uses standard Modbus protocol, fully compatible with the industry standard, and easily achieve real two-in-one packaging machine Interface.

FAQ

Q1: How to know which one packing machine is suitable for us?
You can first tell business representatives which equipment you want to know, what material is the product, how many grams to weigh, and the range of accuracy and speed requirements. Our engineers then recommend suitable packaging machines based on these data and product characteristics.

Q2: How to operate it?
Many languages are available for global markets. There are not only detailed instructions but also machine videos for reference learning.

Q3: Why we should choose your company?
We have many years of industrial production and management experience, professional R & D, sales, after-sales team. It can perfectly solve all the problems that customers encounter from purchase to sale.

Q4: How to cooperate with you?
You only need to contact our business representative, and they will be patient to guide you through the whole process.

Q5: What's your payment way?
T/T by our bank account directly.

Q6: How about the delivery and after-sales service?
All our machines are tailor-made because different clients have different requirements, delivery will be within 20 days for the small multihead weigher, For the large-scale machine, it takes longer. Warranty:2years(Electric accessories) and free lifetime maintenance.

If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem.
