Product Details:
Payment & Shipping Terms:
|
Identify Code: | A10-1-18TS | Weighing Range: | 10-1000g |
---|---|---|---|
Accuracy: | X(0.5) | Max Speed: | 65P/M |
Hopper Volume: | 2L(plastic) | Control Panel: | 7”Touch Screen |
Options: | Timing Hopper/Printer/Reject Device | Packing Dimension(mm): | 1770(L)x1100(W)x1330(H) |
Gross Weight: | 370kg | Power Requirement: | 220V/1000W/ 50/60Hz/8A |
Driving System: | Step Motor | ||
High Light: | Economical 10 Head Multihead Weigher,Plastic Hoppers 10 Head Multihead Weigher,65P/M Multihead Combination Weigher |

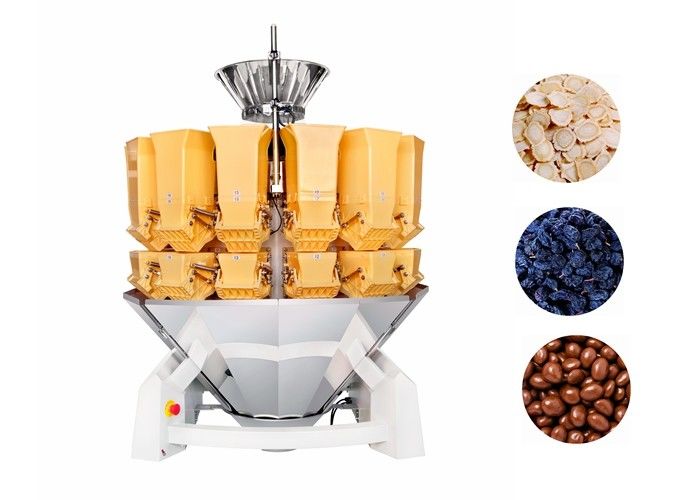

Economical 10 Head Multihead Weigher With Plastic Hoppers
Automatic Multihead Weighers are capable of weighing with greater accuracy at high speeds, which makes them an ideal choice for large production lines and complicated application mixtures such as snacks, confectionery, or bean and nuts.
Features
Mechanical character
Technical specification
Name | 1st G 10heads II Series Carbon Steel Economical Multihead weigher | 1st G 14heads II Serie Carbon Steel Economical Multihead weigher |
Model | JW-A10 | JW-A14 |
Identify Code | A10-1-18TS | A14-1-18TS |
Weighing Range | 10-1000g | 10-1500g |
Accuracy | X(0.5) | X(0.5) |
Max Speed | 65P/M | 120P/M |
Hopper Volume | 2.0L(plastic) | |
Control Panel | 7”Touch Screen | |
Options | Timing Hopper/Printer/Reject Device | |
Driving System | Step Motor | |
Power Requirement | 220V/1000W/ 50/60Hz/8A | 220V/1200W/50/60Hz/10A |
Packing Dimension(mm) | 1770(L)x1100(W)x1330(H) | 1770(L)x1100(W)x1330(H) |
Gross Weight | 370kg | 470kg |
Application
Suitable for weighing small weight granules such as Chinese medicine tablets, tea, coffee beans, chocolate beans, currants, and other snack food, hardware, plastic particles, and other particulate materials quantitative weighing.
Specialized in the production of automatic weighing and packaging machinery for 14 years, we devote ourselves to the complete solution of automatic packaging. Now we become the professional multihead weigher (linear weigher/check weigher/metal detector etc ) manufacturing enterprise with large production capability and wide influence in the world. We have successively won the “Guangdong Industry-University-Research Science and Technology Project Award”, “high technology enterprise”, “Technology Innovation Award” in Chinese food processing and packaging industry, Ringier Multihead Combination Weighing Technology Innovation Award, a number of “Utility Model Patent Certificate” and many other honorary certificates.
Advantages: The main advantage is reflected in weighing accuracy, which indicates that the average error between actual weight and displayed weight is smaller, it could help customers save materials; The same interval time for hopper doors repeat open and close make vibration torque consistency, which makes the mechanical structure mutual friction loss is minimized and the machine can be in long-term stable operation.
Principle: "stable time development model" is through the accurate calculation and controlling of hopper motor time, linear vibrator delay time, vibrator operation time, etc to ensure sensor reads the current weight after setting stable time when each time material fills into the weighing hopper, which maximum to avoid interference from machine shaking since the stable time is inconsistent leading to the vibration mode torque are the difference.
