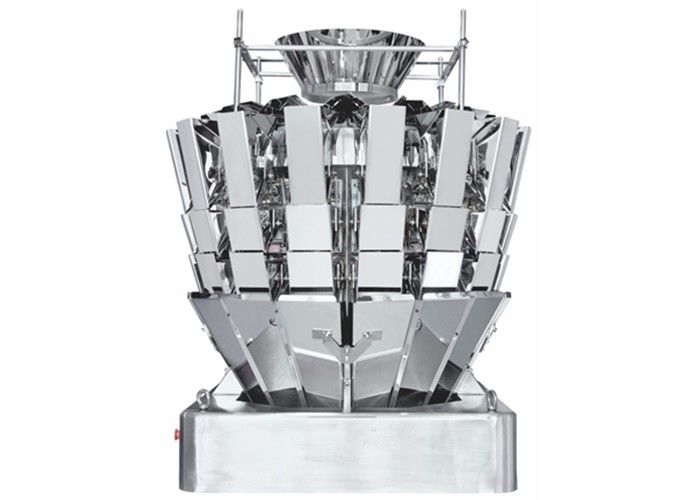

Three Layers 16 Head Flaky Automatic Multihead Weigher

Three Layers 16 Head Flaky Automatic Multihead Weigher
Three Layers 16 Head Flaky Automatic Multihead Weigher

Large Image :  Three Layers 16 Head Flaky Automatic Multihead Weigher

Product Details:
Place of Origin: Guangdong,China
Brand Name: Kenwei
Certification: CE,SGS,OIML
Model Number: JW-A16
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD4000-4300
Packaging Details: Wooden Crate Package
Delivery Time: 20-45 working day
Payment Terms: L/C, T/T
Supply Ability: 800 set per/year
Detailed Product Description
Identify Code: A16-4-2 Weighing Range: 10-1000g
Accuracy: X(0.5) Max Speed: 120X2P/M
Hopper Volume: 1.6L Control Panel: 10.1”Touch Screen
Options: Dimple Plate/Timing Hopper/Printer/Reject Device Packing Dimension(mm): 1860(L)x1200(W)x1540(H)
Gross Weight: 650kg Power Requirement: 220V/2300W/ 50/60Hz/11A
Driving System: Step Motor
High Light:

16 Head automatic multihead weigher


Three Layers automatic multihead weigher


Three Layers multiweigh systems

Three Layers 16 Head Multihead Weigher For Weighing Various Granular, Flaky, Round And Materials

The four-generation three-layer 16-head multihead weigher adopts a newly added memory hopper, which can temporarily store weighing materials, which increases the probability of combination and effectively improves the accuracy of weighing. The 16 storage hoppers make it easier to weigh snack foods such as sunflower seeds, peanuts, nuts, almonds, raisins and candy.




  1. Adopt special sensors with high precision and high standard.
  2. Intelligent fault alarm, convenient maintenance.
  3. high speed staggered discharging function, effectively prevent blocking materials.
  4. With high integrated modular design makes mechanical and electronic components easy to install and maintain.
  5. Modbus industry-standard communication protocol, realize the interface combination of multihead weigher and packaging machine.


Three Layers 16 Head Flaky Automatic Multihead Weigher 0
Mechanical character

1. The main vibrating pan can be used for two kinds of mixed materials.
2. With independent main vibrators, respectively control the thickness of different materials.
3. The new memory bucket to make weighing material storage, increase the combined probability, and effectively improve the accuracy.
4. Machine case and middle seat integral welding greatly enhance
the strength of the machine, makes the hopper shorter stable time.
Technical specification

Model JW-A16
Identify Code A16-4-2
Weighing Range 10-1000g
Accuracy X(0.5)
Max Speed 120x2P/M
Hopper Volume 1.6L
Control Panel 10.1” Touch Screen
Options Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System Step Motor
Power Requirement 220V/2300W/50/60Hz/11A
Packing Dimension(mm) 1860(L)x1200(W)x1540(H)
Gross Weight 650kg

It is suitable for weighing various granular, flaky, round and irregular materials, hardware, etc.


Three Layers 16 Head Flaky Automatic Multihead Weigher 1




A. The quality department is equipped with an environmental simulation test, frequency test, and waterproof test, which mainly used to simulate the high and low-temperature environment, research, and coping machine working conditions under different voltage and frequency, do well for the 50/60Hz frequency and vibration / rotary top cone inspection.

B. Our quality department is Including material checking, inspection, QE, checking before and after the aging test and finished product inspection, etc. total 16 inspection positions and steps.

C. We pay high attention to material inspection and finished product inspection of these two organizational structures.

D.Key components such as circuit boards, screens must be in 72 hours nonstop aging test at 50 environments. Each machine before delivering must be in 7 days nonstop aging test.



Three Layers 16 Head Flaky Automatic Multihead Weigher 2




A.Products: Currently only a few combination weigher manufacturing enterprises such as Ishida,Kenwei who use a "stable time development model" in program design and development. This development model is the core element to ensure weigher be in long-time stable operation and make material saving maximize.


B. Advantages: The main advantage is reflected in weighing accuracy, which indicates that the average error between actual weight and displayed weight is smaller, it could help customers save materials; The same interval time for hopper doors repeat open and close make vibration torque consistency, which makes the mechanical structure mutual friction loss is minimized and the machine can be long-term stable operation.


C.Accuracy: Taking into consideration that the mode of the main vibrator and linear vibrator and vibration absorption ability of the framework that has an effect to weigher accuracy, Kenwei independent research and develop both standard and high amplitude vibrators to meet the needs of different materials. Also control the vibrating time and amplitude separately by control systems to automatically adjust the linear vibrator amplitude, which makes the material flow optimization; About the middle base of machine case, we always use 2.5mm-3.0mm stainless steel sheet and strengthen the internal structure by providing reinforcement to ensure the machine's rigidity. Some models take the machine case and middle base integrated, through a combination of AD converter module and anti-jamming technology, which effectively reduce the vibrating interference and ensure the accuracy of the machine running.


D.Molds and components: Key components such as hoppers, vibrating pans, waterproof cover are made by high-precision molds, which have high consistency and interchangeability; Sensors we use is from Japan and Germany well-known brand; Circuit board is in excellent industrial-standard

design, which the chip selection, PCB design, and protection are based on the industrial-grade materials and the production process.


E.Individual needs: Kenwei develop a variety of weighers for different material, including counting weigher (pouch fill into a large bag), noodle weigher, weigher for frozen food, feeding-control weigher, weigher for stick-shaped products, cheese weigher, salad weigher, mixing weigher, etc. The above products can be selected for digital and modular, single or multi discharge chutes, "high precision" and "high speed" can be freely selected, etc., including a self-developed software system in order to better meet the individual needs of different clients.


F.Function: More diverse function, more convenient operation, such as easy cleaning, simulation tests, free output ports, timing hopper for choice, etc.HMI uses standard Modbus protocol, fully compatible with the industry standard, and easily achieve real two-in-one packaging machine Interface.
